8 Media
8.1 Media Dimensions
Labels Endless material / Shrink tubes
Feed direction

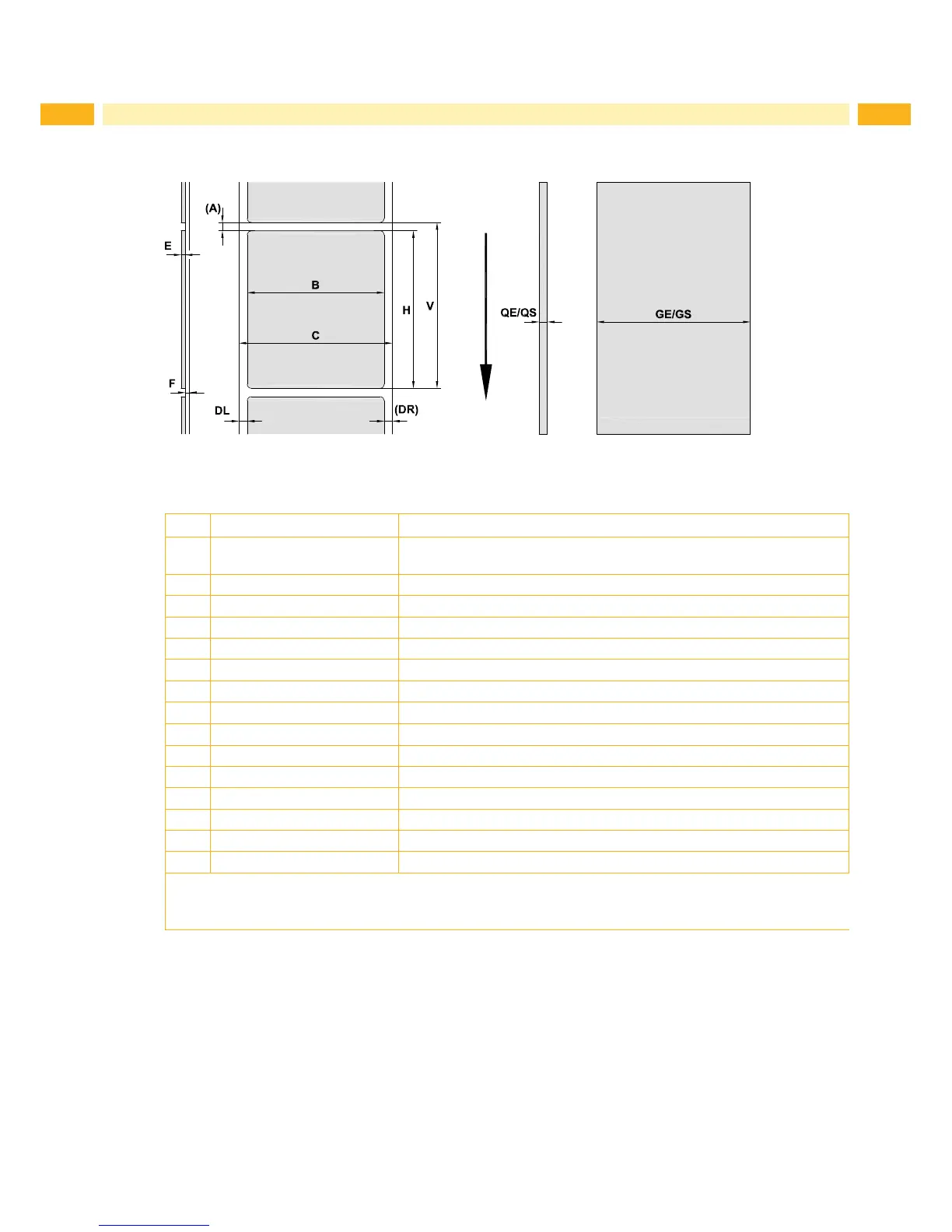

Figure 18 Media dimensions
Dim. Designation Dim. in mm
B Label width
with multi-lane labels
10 - 116
5 - 57
H Label height 5 - 1000
- Tear-off length > 30
- Cut length > 5
A Label distance > 2
C Width of liner 9 - 120
GE Width of endless material 9 - 120
GS Width of shrink tubes 5 - 85
DL Left margin
≥0
DR Right margin ≥0
E Label thickness 0,03 - 0,60
F Liner thickness 0,03 - 0,16
QE Thickness of endless material 0,05 - 0,50
QS Thickness of shrink tubes
≤1,1
V Label feed > 7
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
• Notethebendingstiffness!Materialmustbeexibletofollowtheradiusoftheprintroller!
Table 8 Media dimensions
