4.1.2 Inserting the Labels into the Print Mechanism

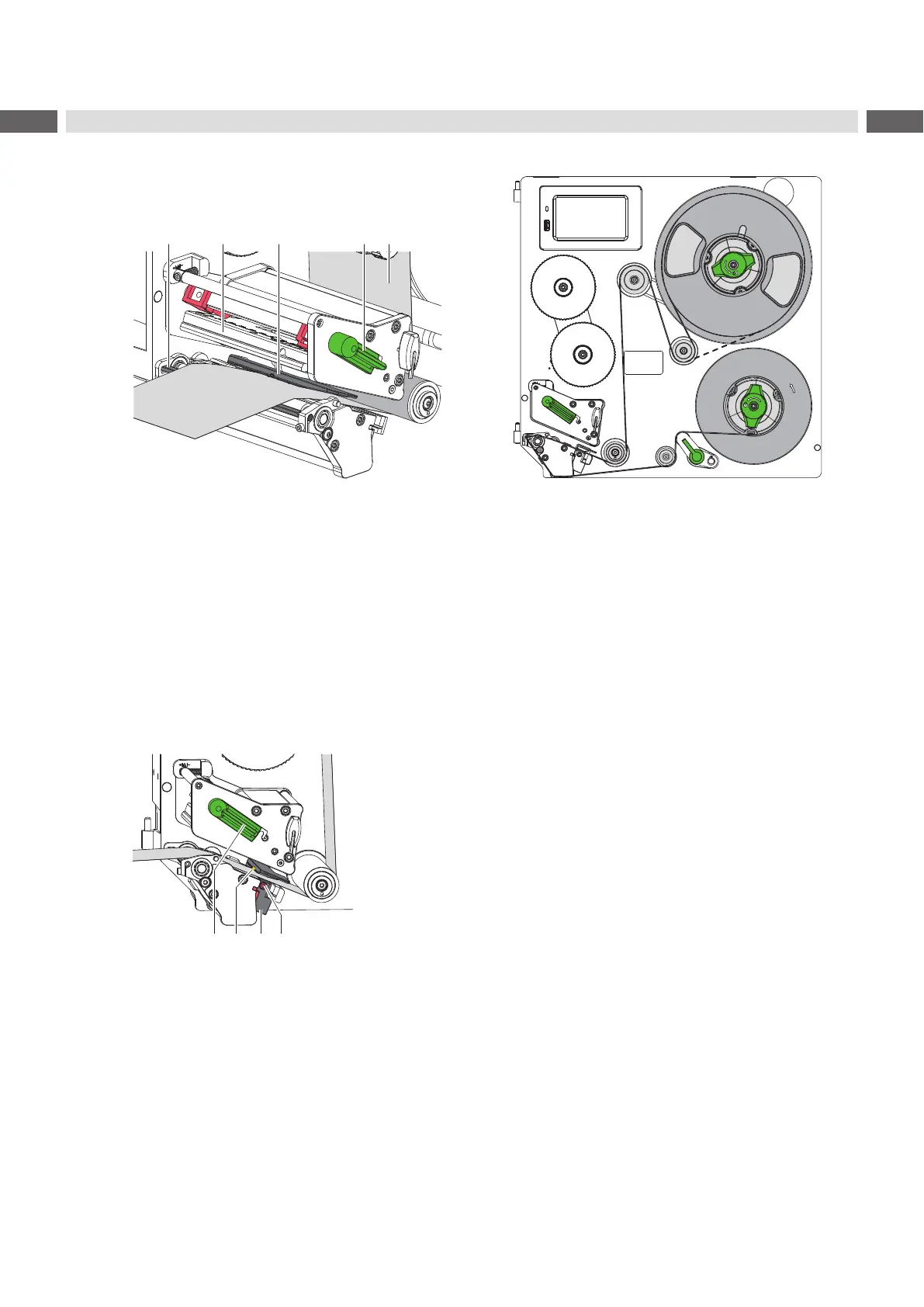

Figure 12 Inserting the labels into the print mechanism Figure 13 Label feed path
1. Turn lever (4) counterclockwise to lift the printhead (2).
2. Move the guide (6) to the outermost position by turning the spindle (7) with the Allen key (8).
3. Supply a longer label strip of approx. 100 cm.
4. Guide label strip (5) to the print unit as shown in Figure 13. The broken line shows the path for inside wound
labels.
5. Guide label strip through the label sensor (3) to the peel-off edge.
6. Move the guide (6) against the label strip by turning the spindle (7).
7. Forward the label strip over the peel-off edge (1), that the strip reaches back internal rewinder. Remove the labels
from the overhanging strip.
4.1.3 Setting the Label Sensor
Figure 14 Setting the Label Sensor
Thelabelsensorcanbeshiftedperpendiculartothedirectionofpaperowforadaptationtothelabelmedium.When
the printer is switched on, a yellow LED illuminates the sensor position (2).
Loosen the screw (4).
Positionthelabelsensorwiththetab(3)insuchawaythatthesensor(2)candetectthelabelgaporareexor
perforation mark.
- or, if the labels deviate from a rectangular shape, -
Alignthelabelsensorusingthetab(3)withthefrontedgeofthelabelinthedirectionofpaperow.
Tighten the screw (4).
Turn the lever (1) clockwise to lock the printhead.
