4 Loading Material
4.1.4 Guiding the Liner to the Internal Rewinder
5 7 6
2 3 41

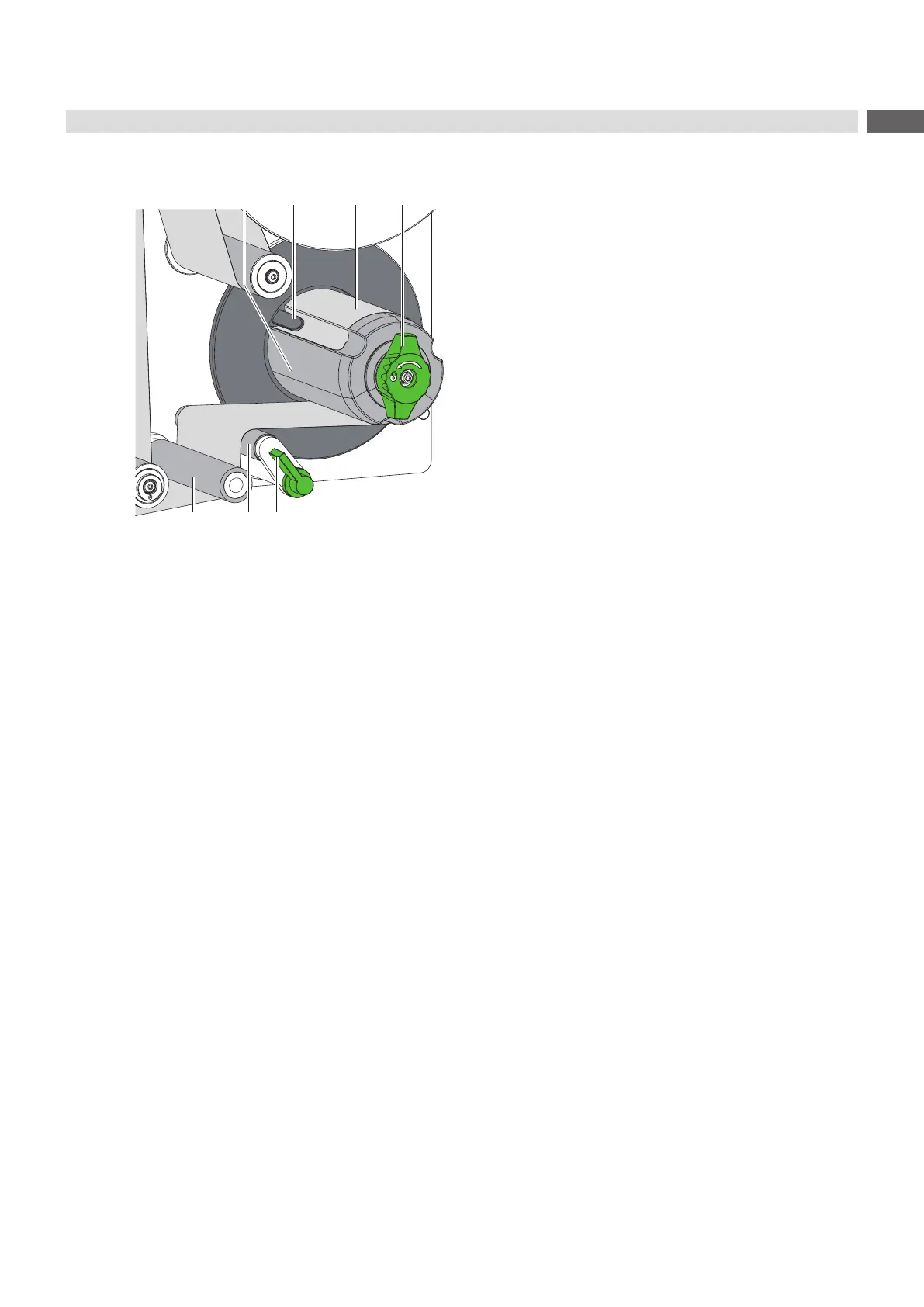

Figure 15 Guiding the liner to the internal rewinder
1. Turn the lever (7) clockwise to lift the locking system (6) from the transport roller (5).
2. Holdtherewinder(1)rmlyandturntheknob(4)clockwiseuntilitstops.
3. Guide the liner coming from the peel-off edge around the transport roller (5) and the locking system (6) to the
internal rewinder (1).
4. Push the liner under a bracket (2) of the rewinder (1) and turn the knob (4) counterclockwise until it stops.
Therewinderisfullyspread,thusgrippingthelinerrmly.
5. Turn the rewinder (1) counterclockwise to tighten the liner.
6. Turn the lever (7) counterclockwise to lock the transport system (5,6).
