CAB HERMES Q4L - 8 Labels; Label Dimensions

26 26
8 Labels
8.1 Label Dimensions

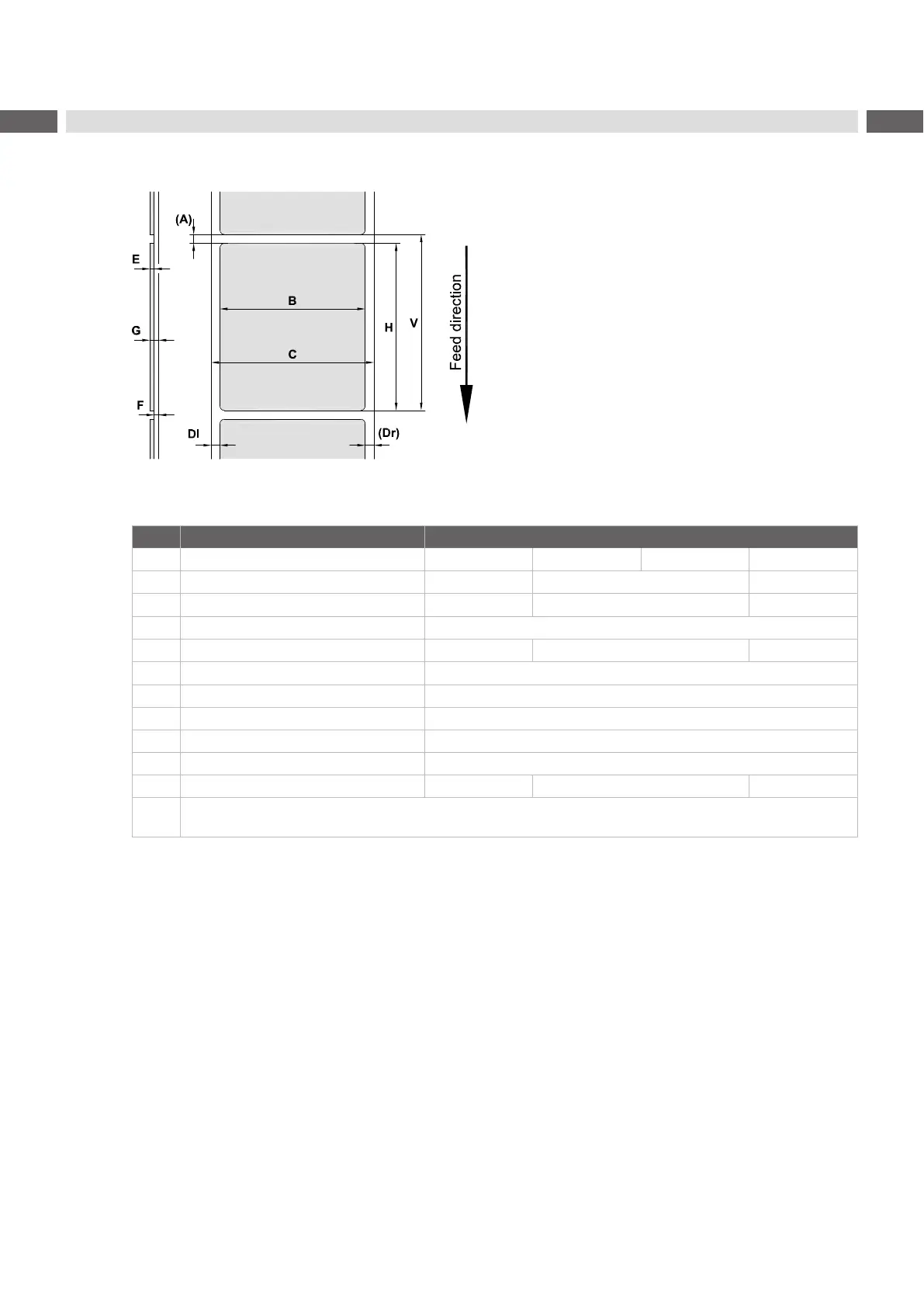

Figure 22 Label dimensions
Dim. Designation Dim. in mm
HERMES Q2 HERMES Q4 HERMES Q4.3 HERMES Q6.3
B Label width 4 - 58 20 - 114 46 - 174
H Label height 3 - 200 4 - 320 6 - 320
A Label distance > 2
C Width of liner 24 - 62 24 - 118 46 - 178
Dl Left margin
≥0
Dr Right margin ≥0
E Label thickness 0,03 - 0,60
F Liner thickness 0,03 - 0,16
G Thickness label with liner 0,06 - 0,76
V Label feed > 5 > 6 > 8
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
Table 8 Label dimensions
