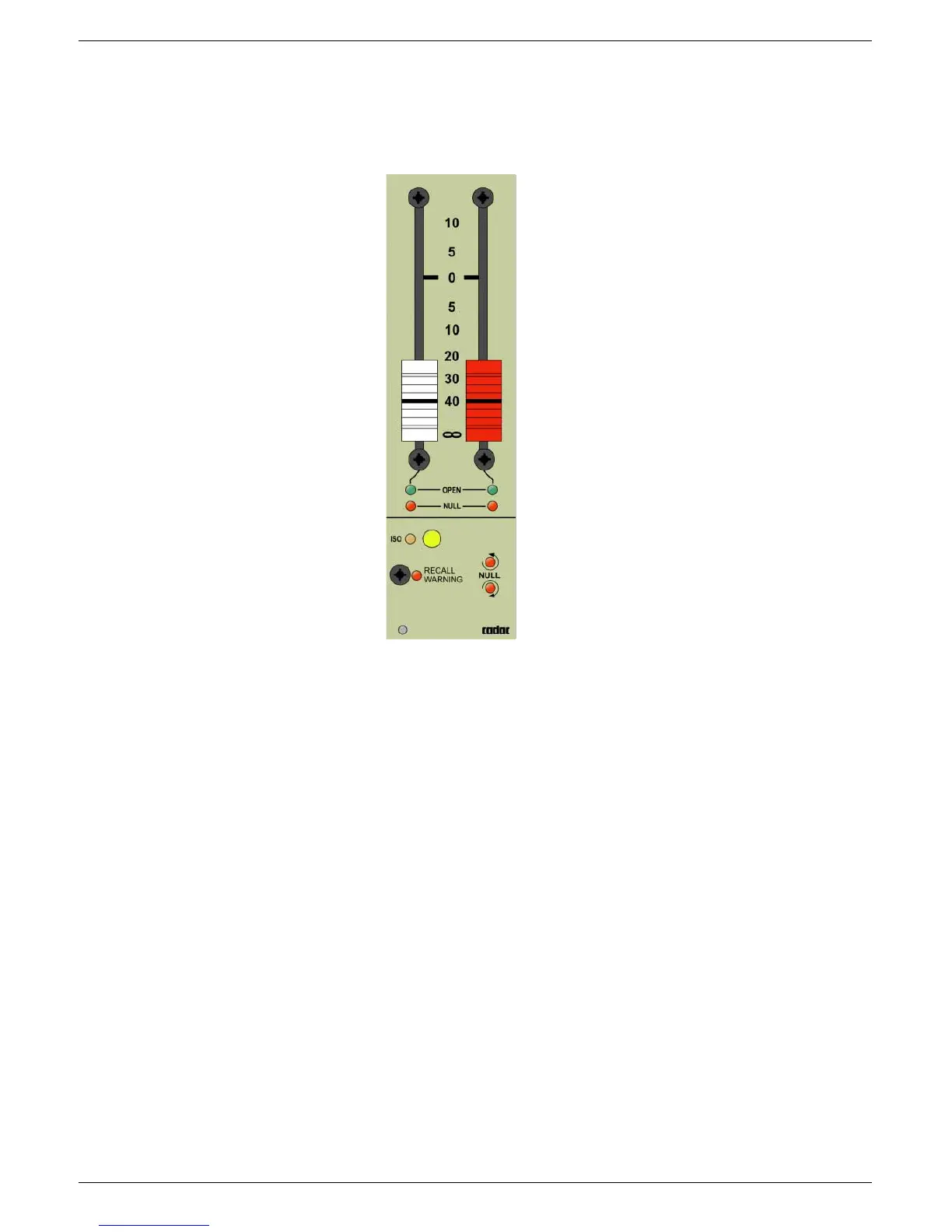

4-14 7972 Programmable Aux Groups Module
J-Type Revision J2005-2
715143 2XWSXW#OHYHO#IDGHUV
Control the output level for Aux Groups.
715144 $X[#*URXS#RSHQ#/('
When the Aux channel is under VCA control, this LED indicates that the Aux Group
is open.
715145 )DGHU#1XOO#/('
This LED indicates that the fader is not at its recorded position. slide fader until LED
extinguishes.
715146 1XOO#/('V
Indicate in which direction to rotate the pot or slide the fader to reach the Null point.
4.2.10 Output level faders
4.2.11 Aux channel open LED
4.2.12 Fader Null LED
4.2.13 Null LEDs
4.2.14 Isolate switch/LED
4.2.15 Recall warning
:<:5#3URJUDPPDEOH#$X[#*URXSV#0RGXOH
