7972 Programmable Aux Groups Module 4-15
Revision J2005-2 J-Type
715147 ,VRODWH#VZLWFK2/('
Isolates all the Aux Group automation functions from the Cue Automation.
715148 5HFDOO#ZDUQLQJ
When fashionable indicates one or more controls is not at its preset position.

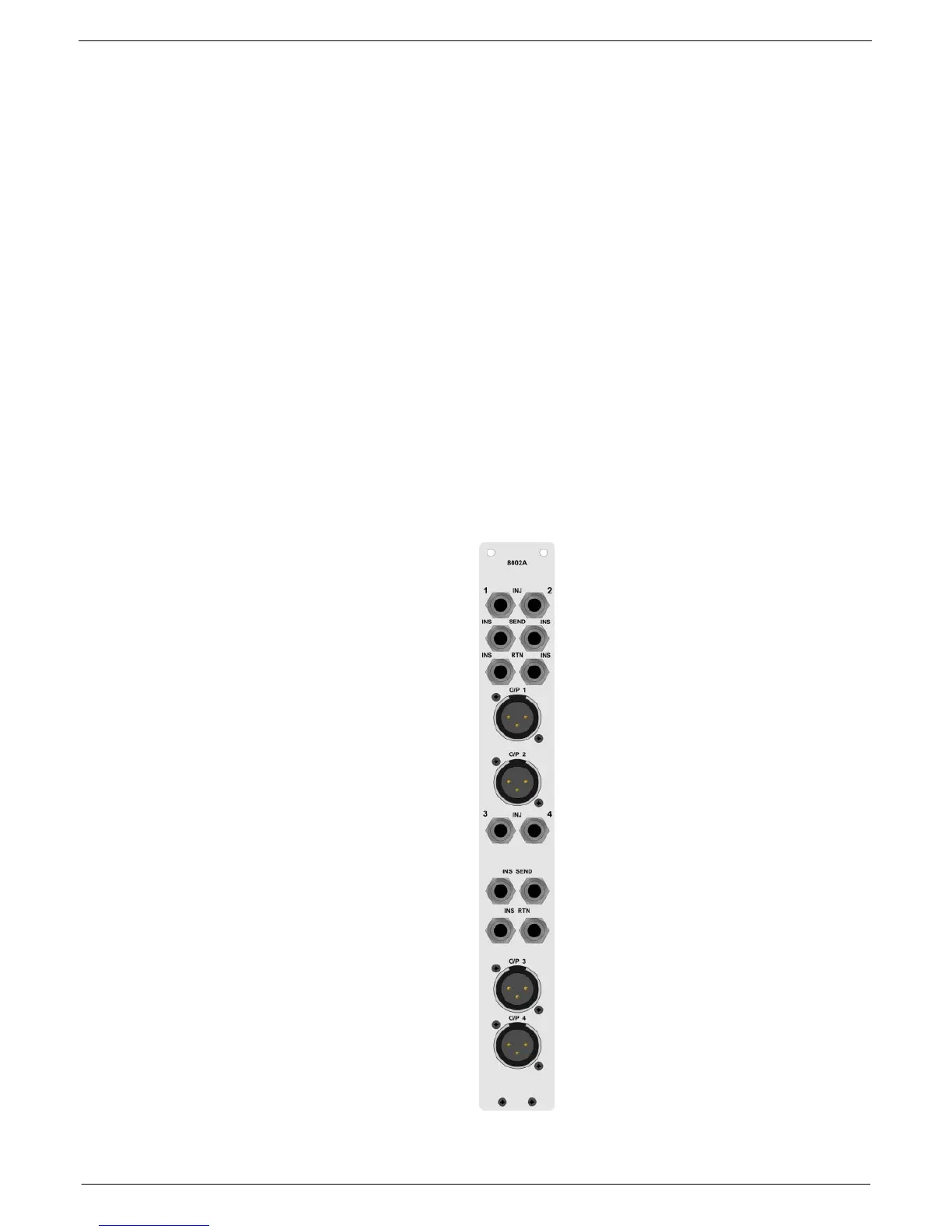

715149 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#:<:5
Inputs 1 to 4
Electronically balanced inject inputs on XLR 3-31 connectors for line
level sources.
Insert Send
Standard 0.25” (6.35 mm) TRS jack sockets, providing continuous elec-
tronically balanced outputs.
Insert Return
Electronically balanced inputs on standard 0.25” (6.35 mm) TRS jack
sockets that are switched into use when the “INS” switch is selected.
Outputs 1 to 4
Balanced output from the module, delivered to an XLR 3-32 connec-
tor.
Important note:
Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack sockets are connected to FRAME. This is to ensure that the console can comply
with the Electro Magnetic Compatibility (EMC) directive.
INJECT INPUTS 1 AND 2
INSERT SENDS 1 AND 2
INSERT RETURNS 1 AND 2
OUTPUT 1
OUTPUT 2
INJECT INPUTS 3 AND 4
INSERT SENDS 3 AND 4
INSERT RETURNS 3 AND 4
OUTPUT 3
OUTPUT 4
