Cadac J-Type - Page 114

5-4 8059 Dual Input Channel
J-Type Revision J2005-2
814146 3DQ#3RW
The pan pot has 0dB centre point with +4.5dB of gain when turned fully clockwise or
counter-clockwise. This allows you to pan between odd and even sub groups.
814147 $X[#6HQGV#4#WR#43

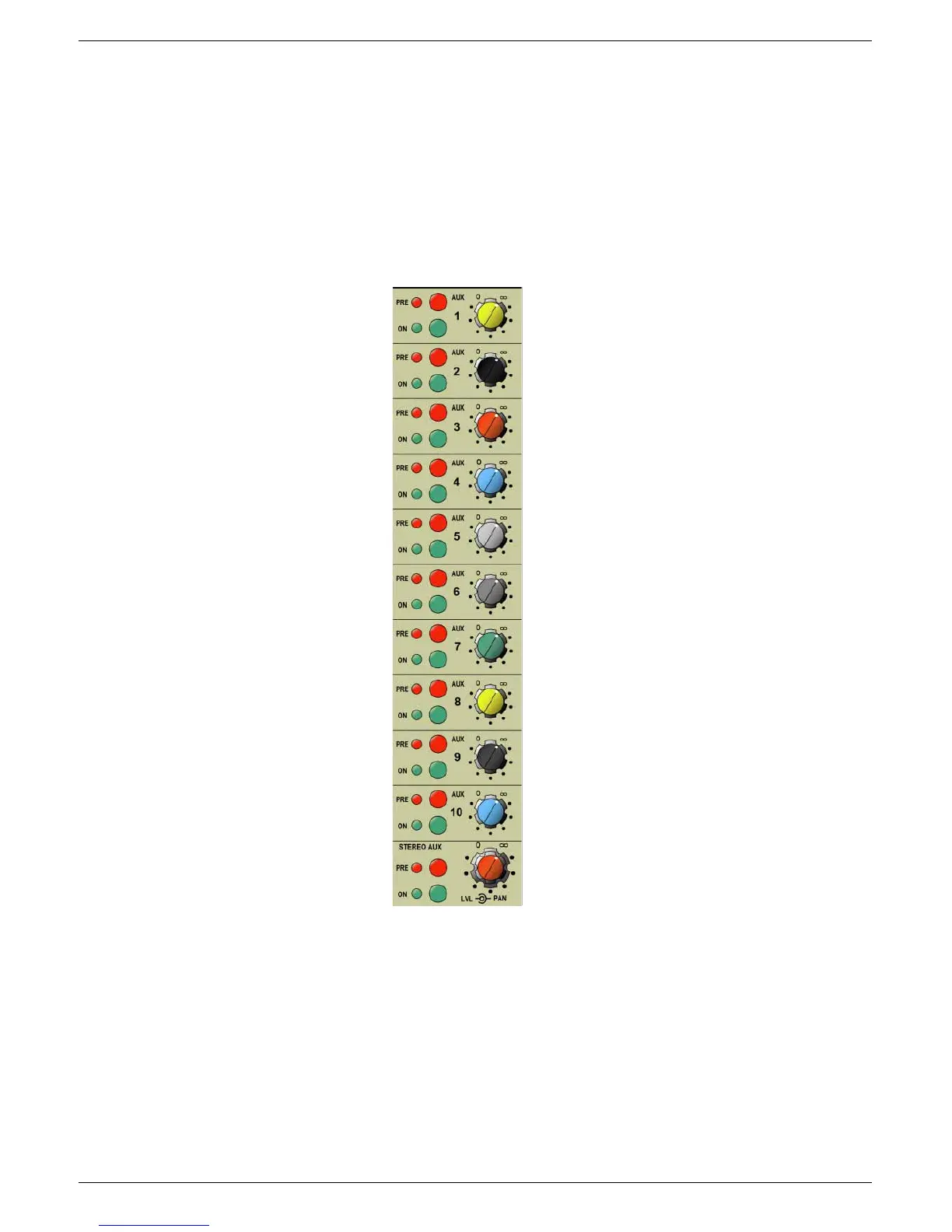

Ten mono Auxiliary Sends with individual level controls.
814148 $X[#6HQGV#4#WR#43#SUH2SRVW#IDGHU#VZLWFK
The Aux Sends can be switched pre/post fader independently. Default setting for the
switch is POST fader.
;38<#'XDO#,QSXW#&KDQQHO
5.1.14 Aux Sends 1 to 10
5.1.15 Aux Send 1 to 10 pre/post fader
switch
5.1.16 Aux Send 1 to 10 On/Off
5.1.17 Aux Sends 11 and 12.
5.1.18 Aux Send 11 and 12 pre/post
fader switch
5.1.19 Aux Send 11 and 12 On/Off
