5-20 6908 Sub and Matrix module
J-Type Revision J2005-2
8161: 6XE#*URXS#OHYHO#VHQG#SRWV

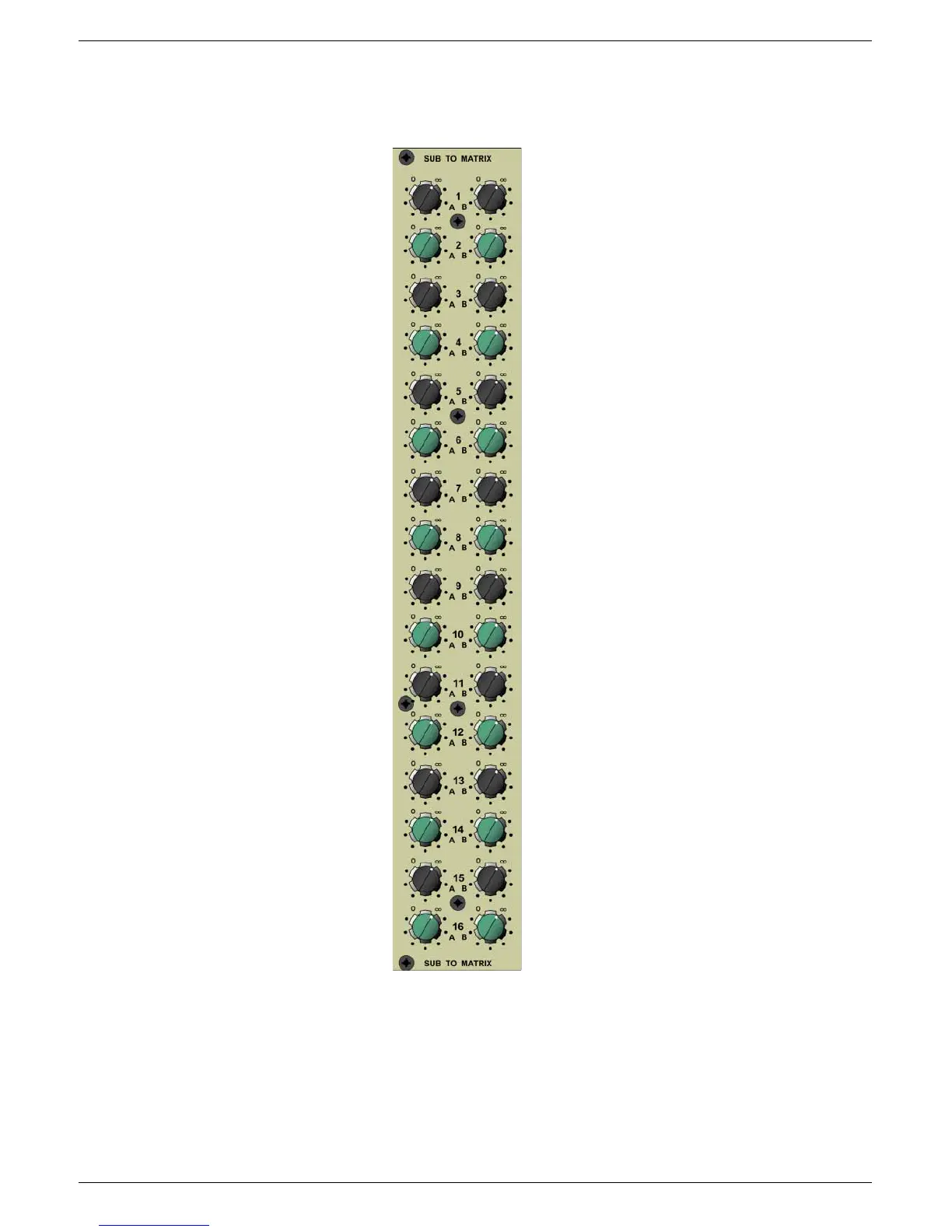

These 32 pots constitute the level sends from the sub group of this module to the
matrix groups and are identified 1A/B to 16A/B. The signal level to the Matrix send
pots is controlled by the Sub Group fader.
9<3;#6XE#)#0DWUL[#PRGXOH
5.3.7 Sub Group level send pots
