6908 Sub and Matrix module 5-21

Revision J2005-2 J-Type

8161; 6XE#*URXS#RXWSXW#OHYHO#/('#PHWHU

Peak reading 20 segment LED meter reading the output level of the sub group.

8161< ,QVHUW#VZLWFK

Opens the pre fader insert point of the Sub Group.

816143 ,QMHFW#VLJQDO#OHYHO#SRW

Sets the level of the signal injected into the Sub Group mixing amplifier. The input is

via an XLR on the rear panel.

816144 6XE#*URXS#IDGHU

Controls the output level of the Sub Group.

816145 3)/0VZLWFK

Illuminated PFL-switch for the Sub Group. Selection is additive and is not controlled

by the PFL interlock facility.

816146 087(0VZLWFK

Illuminated MUTE-switch for the Sub Group. It is identified with its Sub Group num-

ber.

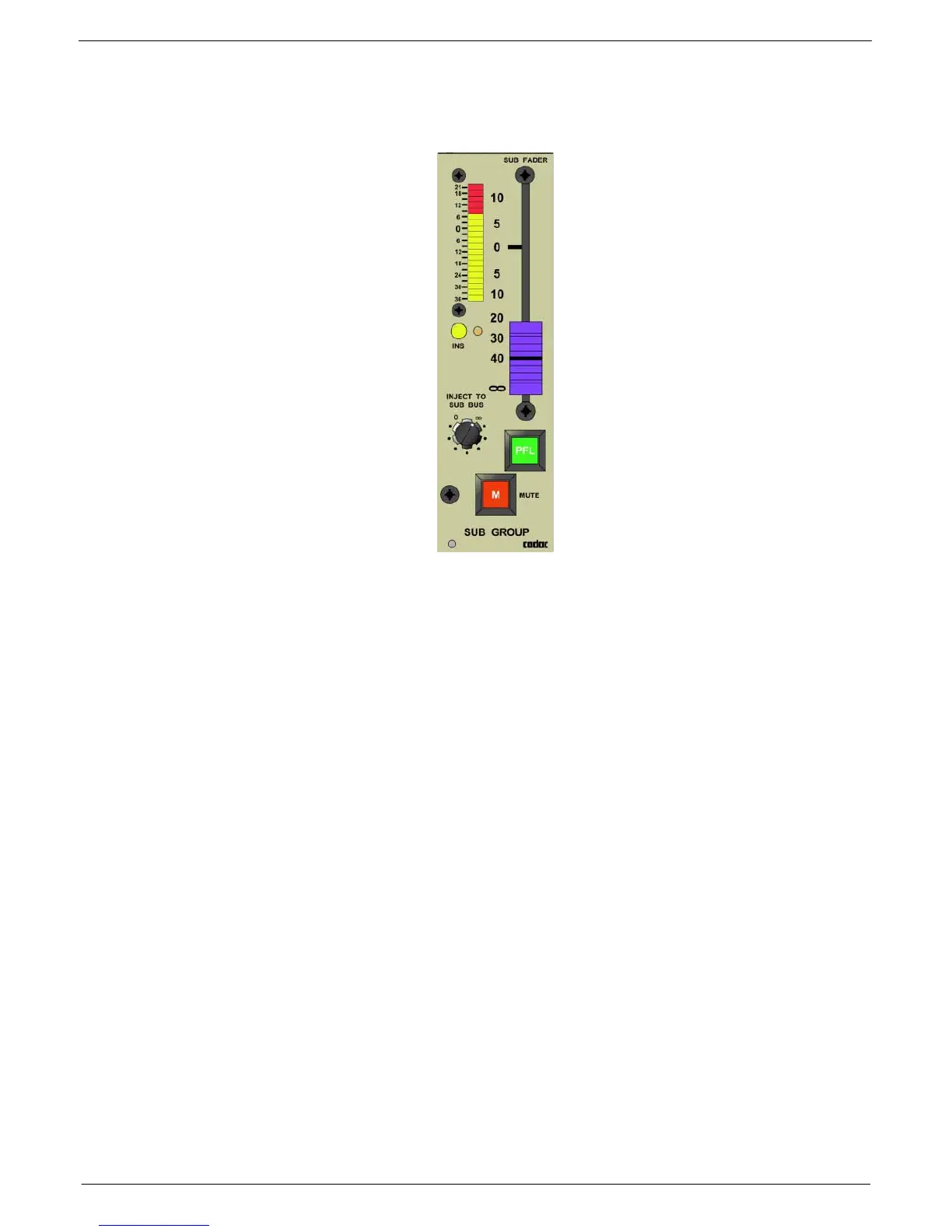

9<3;#6X E #)#0DWUL[#PRGXOH

5.3.8 Sub Group output level LED

meter

5.3.9 Insert switch

5.3.10 Inject signal level pot

5.3.11 Sub Group fader

5.3.12 PFL-switch

5.3.13 MUTE-switch
