5-22 6908 Sub and Matrix module

J-Type Revision J2005-2

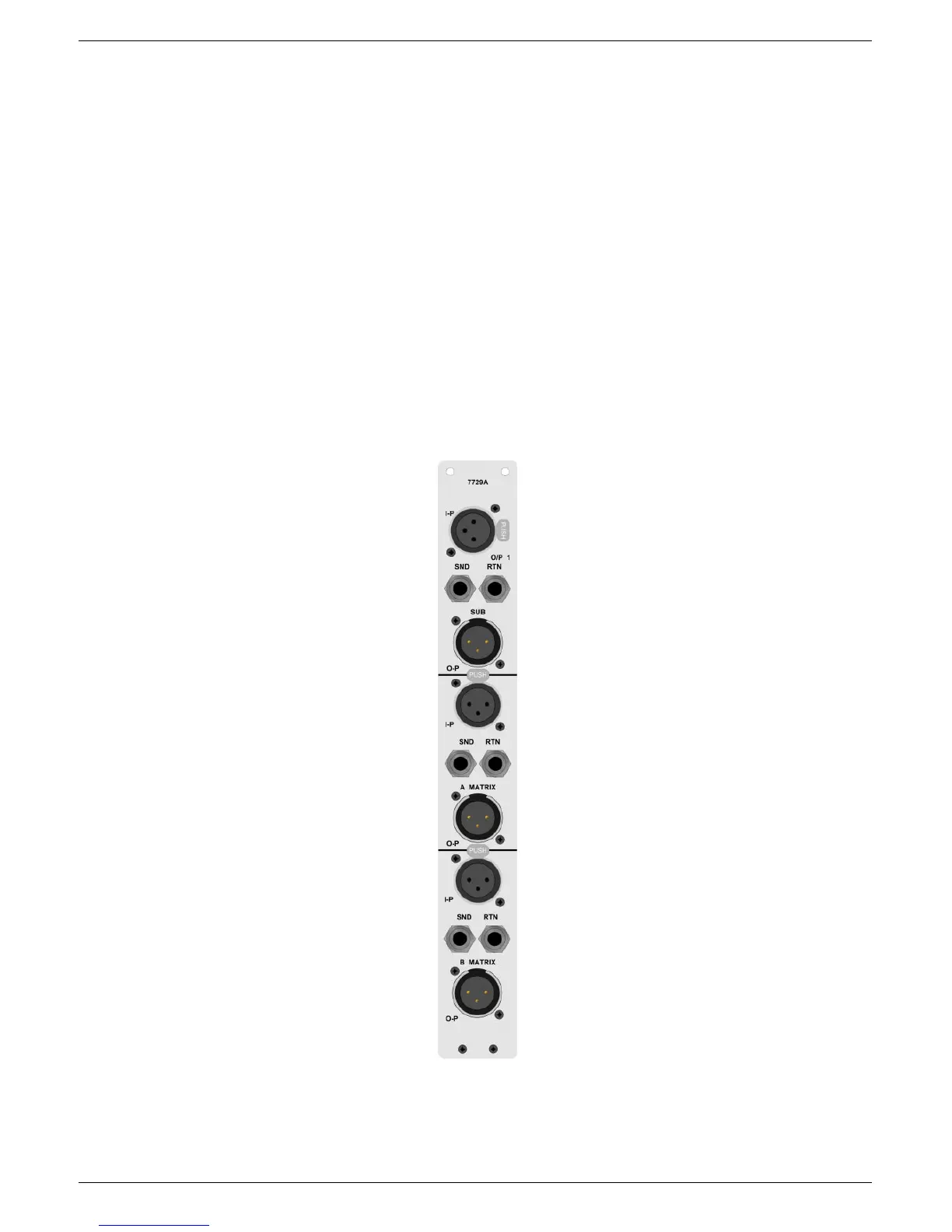

816147 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#

Input Sub

Electronically balanced inject input on XLR 3-31 connectors for line level

sources.

Input Matrix A and B Electronically balanced inject inputs on XLR 3-31 connectors

for line level sources.

Insert Send

Standard 0.25” (6.35 mm) TRS jack sockets, providing continuous elec-

tronically balanced outputs.

Insert Return

Electronically balanced inputs on standard 0.25” (6.35 mm) TRS jack

sockets that are switched into use when the “INS” switch is selected.

Matrix Outputs A and B

Balanced outputs from the module, delivered to an XLR 3-

32 connector.

Sub Output Balanced output from the module, delivered to an XLR 3-32 connector

Important note:

Pin 1 on the XLR connectors and the ‘sleeve’ connections on the

jack sockets are connected to FRAME. This is to ensure that the console can comply

with the Electro Magnetic Compatibility (EMC) directive.

INPUT SUB GROUP

INSERT RETURN

SUB GROUP OUTPUT

INPUT MATRIX A

INSERT RETURN

MATRIX A OUTPUT

INPUT MATRIX B

INSERT RETURN

MATRIX B OUTPUT

INSERT SEND
