6-10 7106 Quad Panning module
J-Type Revision J2005-2
9161< 5RXWH#WR#0DWUL[#%DFN#/HIW
Four 9-way switches (0=off), allowing the Back Left output to be routed to any of the
32 possible Matrix Groups.
916143 5RXWH#WR#0DWUL[#%DFN#5LJKW
Four 9-way switches (0=off), allowing the Back Right output to be routed to any of the
32 possible Matrix Groups.
916144 %0/#5RXWLQJ#087(
An illuminated locking switch for muting the signal to the Back Left Matrix routing
switches.
916145 %05#5RXWLQJ#087(
An illuminated locking switch for muting the signal to the Back Right Matrix routing
switches.

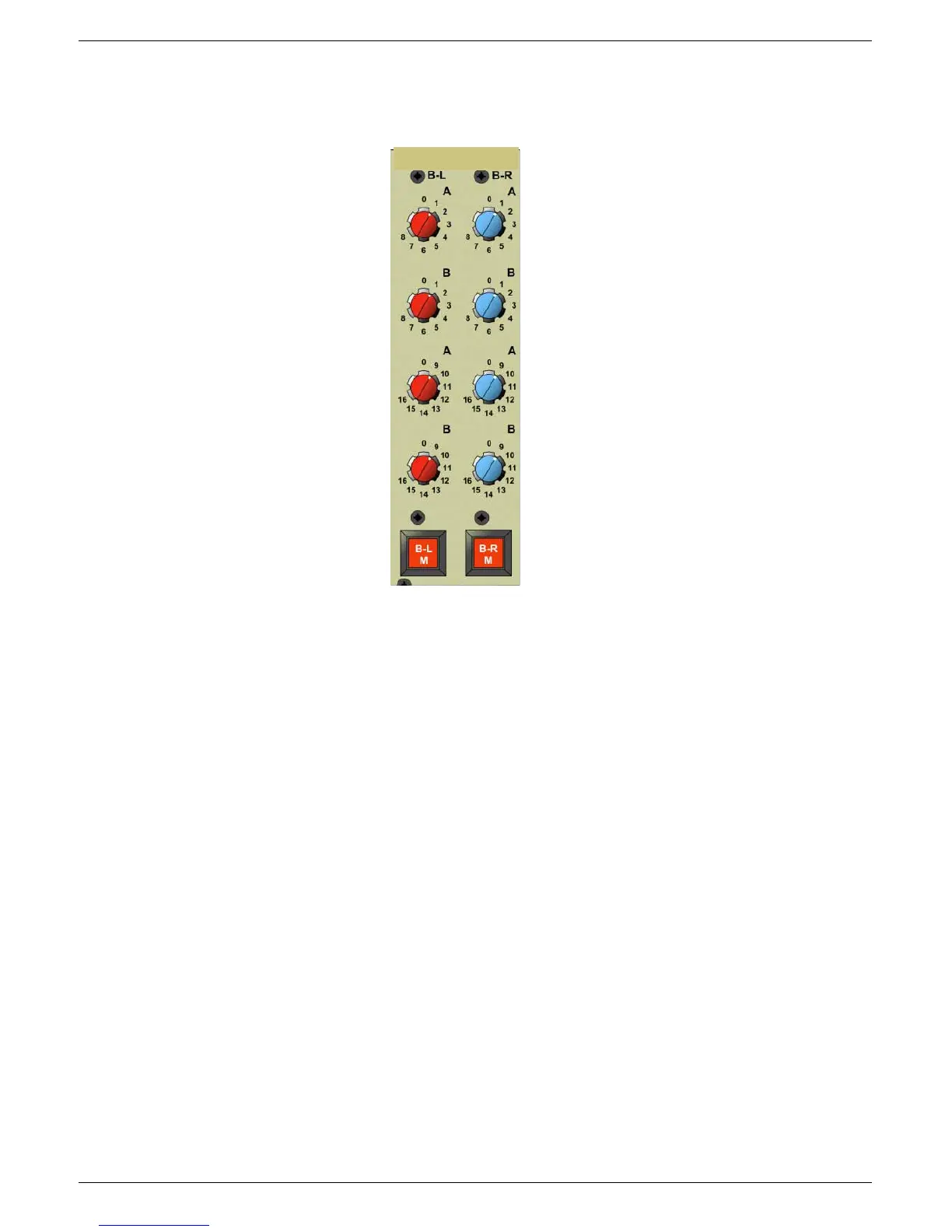

:439#4XDG#3DQQLQJ#0RGXOH
6.3.11 Route to matrix - Back Right
6.3.13 B-R Routing MUTE
6.3.10 Route to Matrix - Back Left
6.3.12 B-L Routing MUTE
ROUTE TO MATRIX
