7106 Quad Panning module 6-9
Revision J2005-2 J-Type
91618 5RXWH#WR#0DWUL[#)URQW#/HIW
Four 9-way rotary switches, (0=off), allowing the Front Left output to be routed to any
of the 32 possible Matrix Groups.
91619 5RXWH#WR#0DWUL[#)URQW#5LJ KW
Four 9-way rotary switches (0=off), allowing the Front Right output to be routed to
any of the 32 possible Matrix Groups.
9161: )0/#5 RXWLQJ#087(
An illuminated locking switch for muting the signal to the Front Left Matrix routing
switches.
9161; )05#5RXWLQJ#087(
An illuminated locking switch for muting the signal to the Front Right routing switches.
:439#4XDG#3DQQLQJ#0RGXOH
6.3.7 Route to matrix - Front Right
6.3.9 F-R Routing MUTE
6.3.6 Route to Matrix - Front Left
6.3.8 F-L Routing MUTE

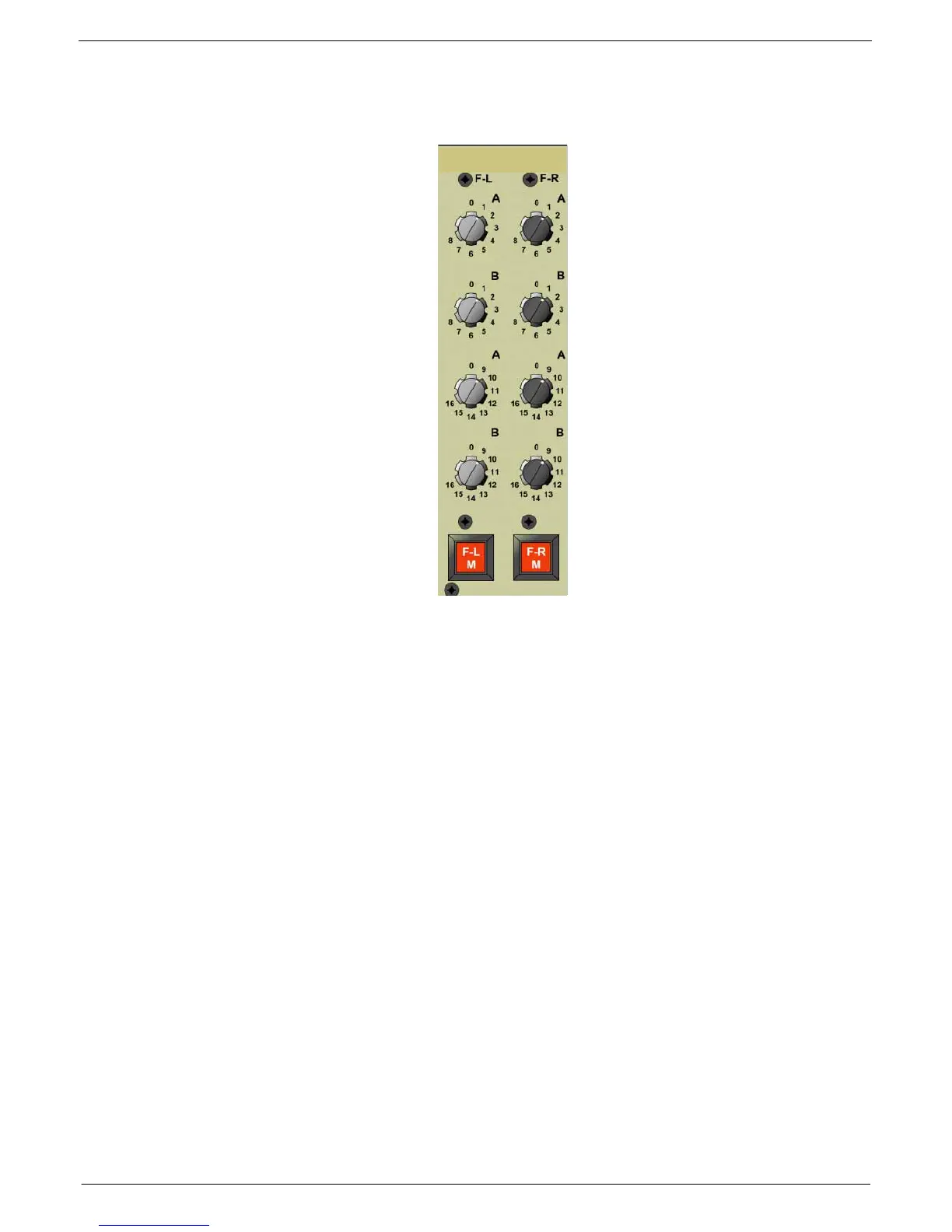

ROUTE TO MATRIX
