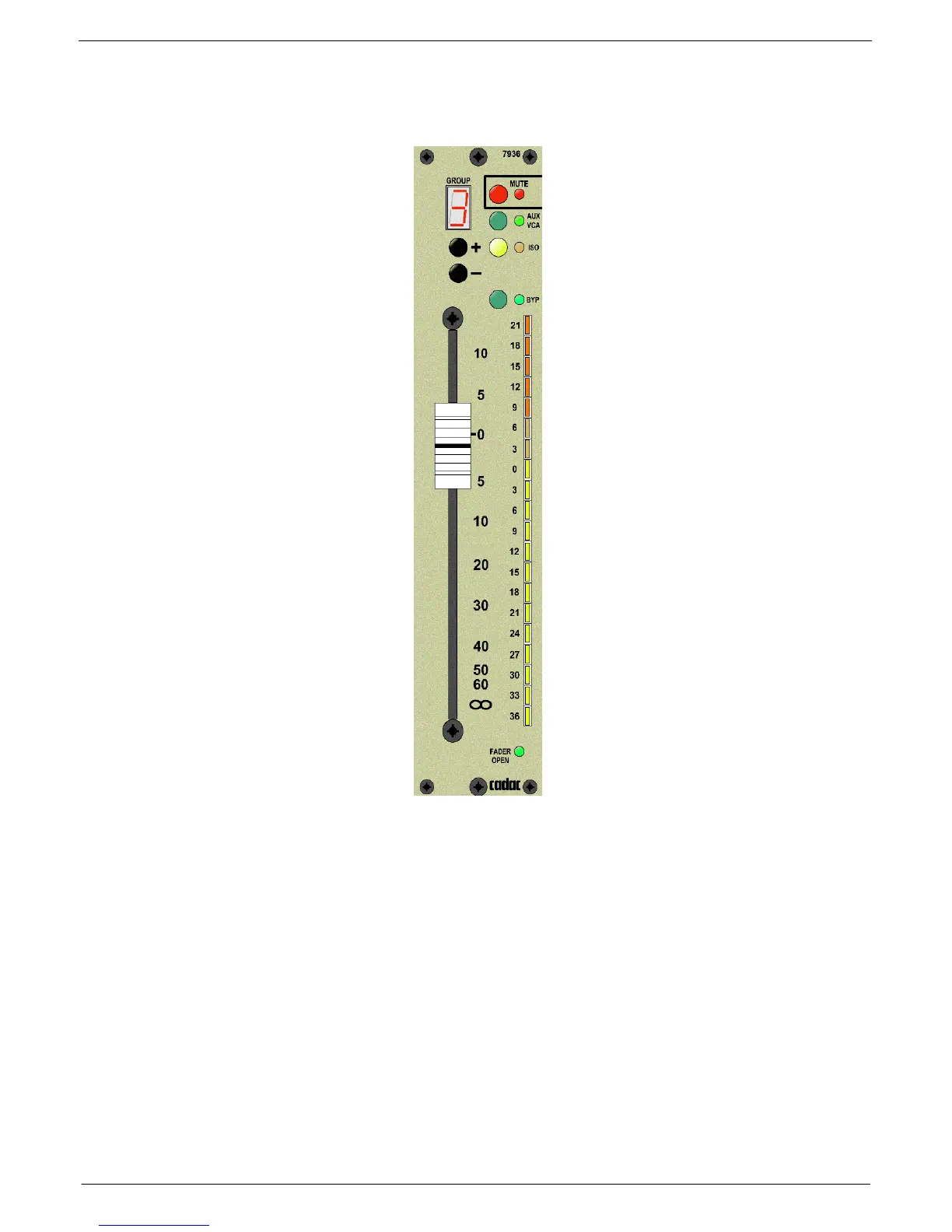

7936 VCA Channel fader 8-7
Revision J2005-2 J-Type
;16 :<69#9&$#&K DQQHO#IDGHU
;1614 087(
Programmable MUTE button mutes all the pre and post fader sends and routing.
Only AUX is muted if AUX VCA is ON.
;1615 +H[DGHFLPDO#GLVSOD\
Display indicating DC Group assignment.
;1616 $X[#9&$
Aux from VCA can be set to ‘on’ or ‘off’ with this push-button or by programming as
part of a cue. When Aux VCA is ‘on’, the associated LED will light up.
Aux VCA ‘off’: If any of the Aux Sends on a channel are set to send signal post-fader,
8.3.1 MUTE
8.3.3 Aux VCA
8.3.5 Isolate
8.3.6 By-pass
8.3.8 LED meter
8.3.9 Fader Open
8.3.2 Hexadecimal
display
8.3 4 Group selection push-
buttons
8.3.7 Fader
