3-10 7865 Stereo Input Channel
J-Type Revision J2005-2

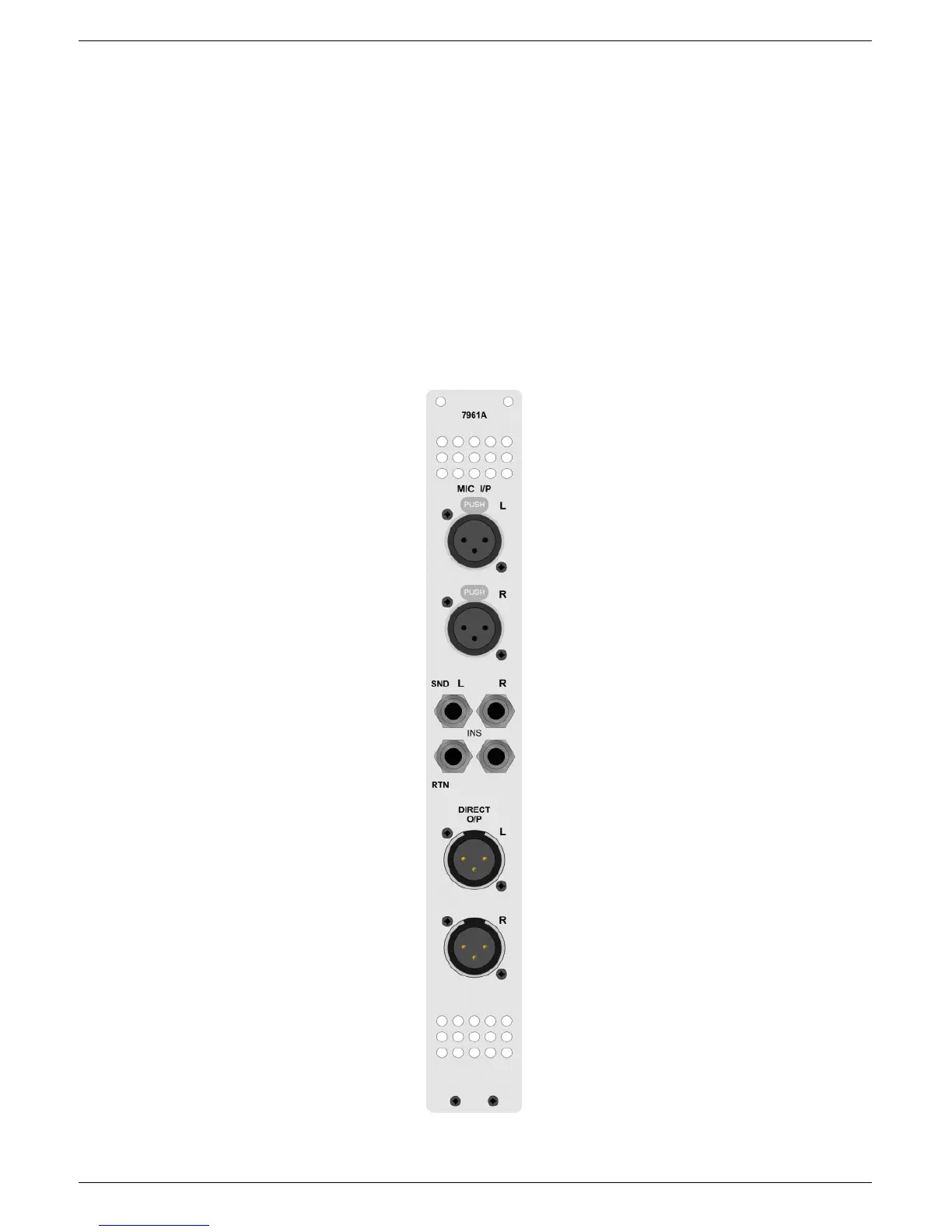

614177 0RGXOH#UHDU#SDQHO#FRQQHFWRUV
Inputs left & Right Electronically balanced inputs on XLR 3-31 connectors for micro-
phone or line level sources.
Insert Sends Standard 0.25” (6.35 mm) TRS jack sockets, providing continuous elec-
tronically balanced outputs.
Insert Returns Electronically balanced inputs on standard 0.25” (6.35 mm) TRS jack
sockets that are switched into use when the “INS” switch is selected.
Direct Outputs Left and Right balanced outputs from the module, delivered to XLR 3-
32 connectors.
Important note: Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack sockets are connected to FRAME. This is to ensure that the console can comply
with the Electro Magnetic Compatibility (EMC) directive.
INPUT RIGHT
INSERT SEND RIGHT
INSERT RETURN RIGHT
DIRECT OUTPUT RIGHT
INPUT LEFT
INSERT SEND LEFT
INSERT RETURN RIGHT
DIRECT OUTPUT LEFT
