Cadac J-Type - Page 66

3-16 7496 Dual Input Channel
J-Type Revision J2005-2
615159 $X[#6HQG#¶3UH0(4·
The default setting for the channel auxiliary send circuits is ‘off’ and post-EQ.
Press the ‘PRE’ button until the PRE EQ LED illuminates to derive the aux signal
pre-EQ.
61515: $X[#6HQG#¶3UH0)DGHU·
The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.
Press the “PRE” button until the PRE FD LED illuminates to derive the aux send sig-
nal pre-fader.
NOTE: Only one of the options 3.2.26 or 3.2.27 can be selected at the same time.

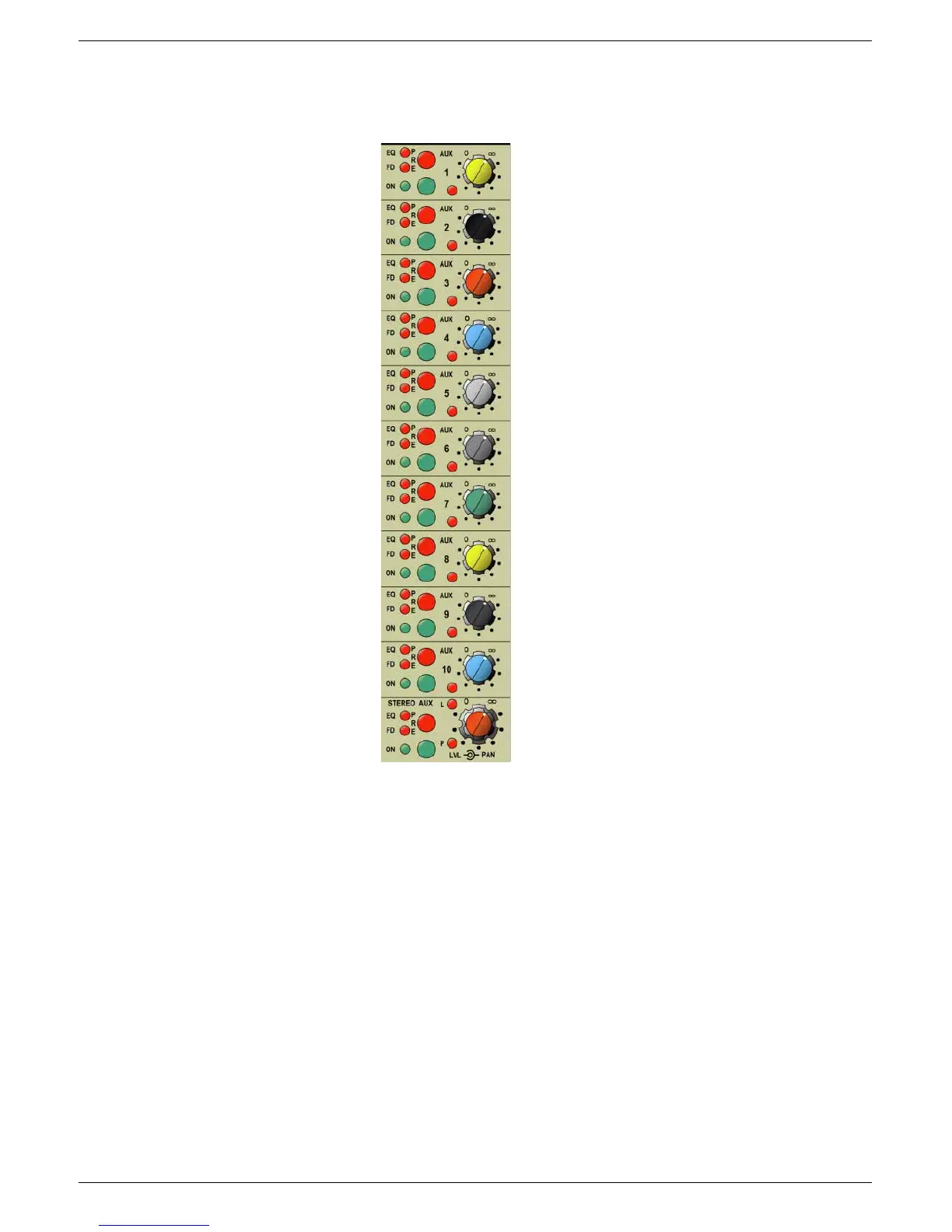

:7<9#'XDO#,QSXW#&KDQQHO
3.2.31 Stereo Aux Send Pre EQ
3.2.32 Stereo Aux Send Pre Fader
3.2.33 Stereo Aux Send On/Off
3.2.26 Aux Send Pre-EQ
3.2.27 Aux Send Pre Fader
3.2.28 Aux Send On/Off
3.2.34 Stereo Aux Send Level Pot Null LED
3.2.35 Stereo Aux Send Level and Pan
3.2.36 Stereo Aux Send “Pan Pot” Null LED
3.3.29 Aux Send Level
3.3.30 Aux Send Pot Null LED
