3-28 7830 Dual input channel
J-Type Revision J2005-2
616156 $X[#6HQG#¶3UH0)DGHU·
The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.
Press the “PRE FD” button to derive the aux send signal pre-fader.
616157 $X[#6HQG#¶2Q22II·
The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.
Press the “ON” button to switch the aux send section into circuit.
616158 $X[#6HQG#/HYHO
Level control for an auxiliary send section.
The position of the ‘level’ potentiometer is recorded during a SAVE command.

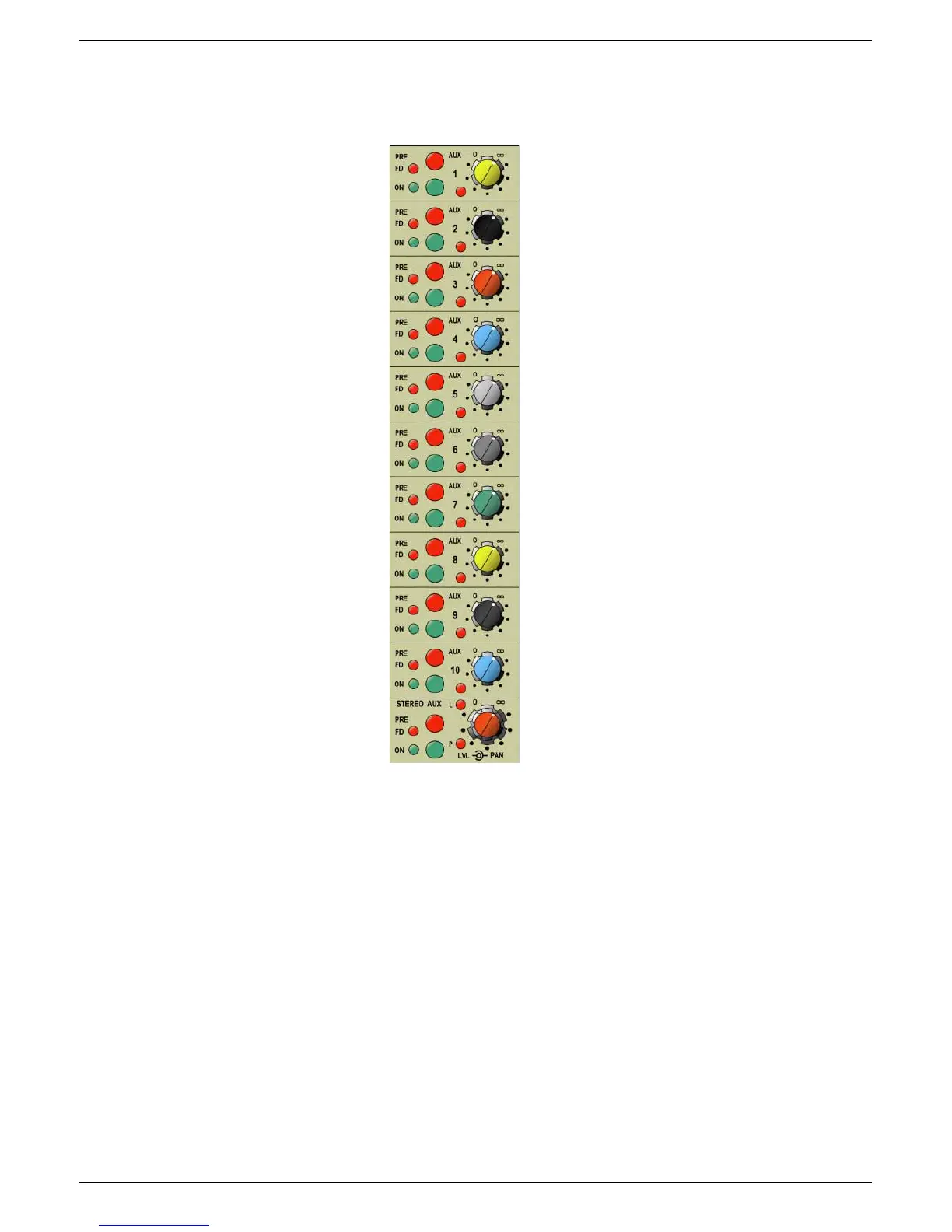

3.3.25 Aux Send Level
3.3.26 Aux Send Pot Null LED
3.3.23 Aux Send “Pre-Fader
3.3.24 Aux Send On/Off
3.3.29 Stereo Aux Send Level Pot Null LED
3.3.30 Stereo Aux Send Level and Pan
3.3.31 Stereo Aux Send “Pan Pot” Null LED
3.3.27 Stereo Aux Send “Pre-Fader”
3.3.28 Stereo Aux Send On/Off
