7830 Dual input channel 3-35
Revision J2005-2 J-Type
61618; 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#:;63

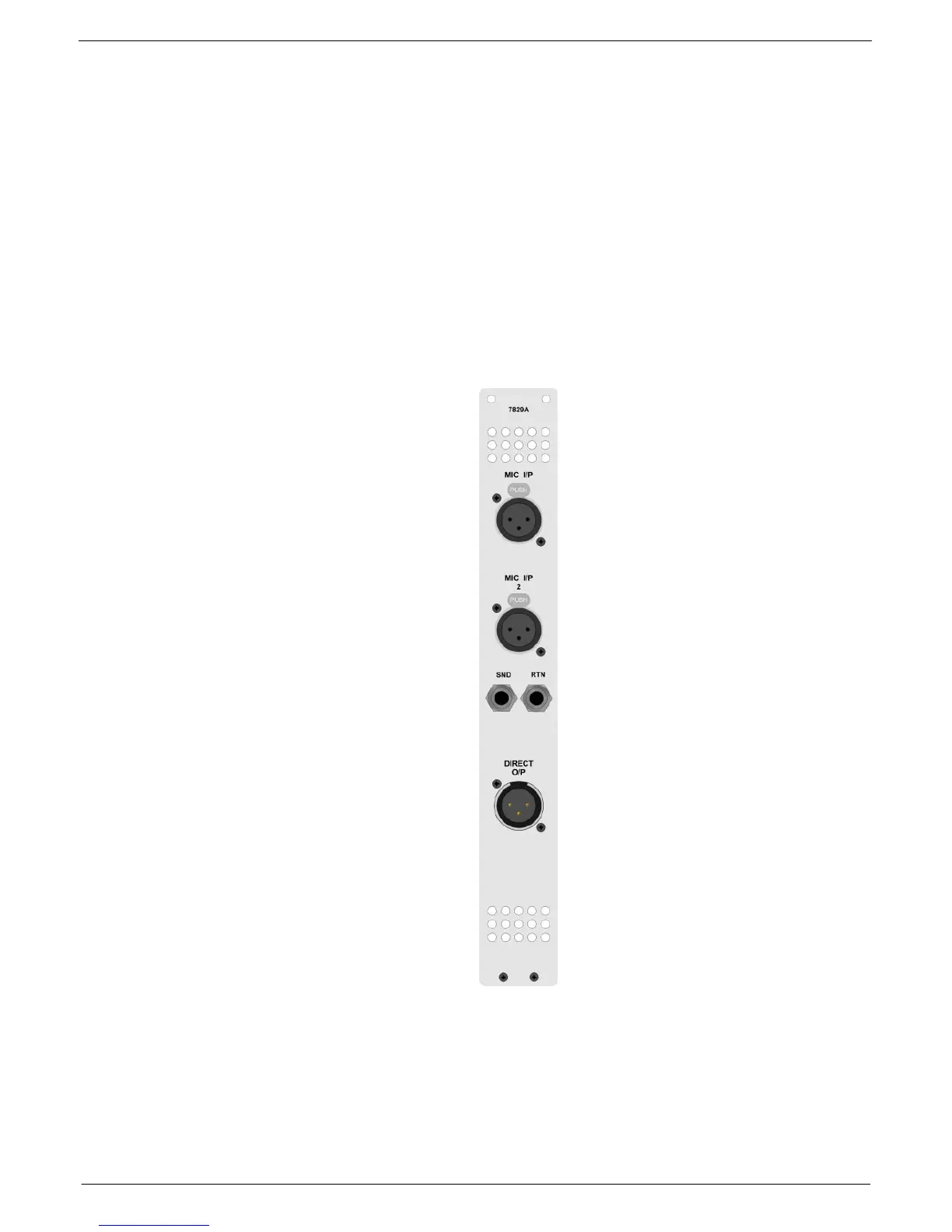

Inputs 1 and 2
Electronically balanced inputs on XLR 3-31 connectors for micro-
phone or line level sources.
Insert Send
Standard 0.25” (6.35 mm) TRS jack sockets, providing continuous elec-
tronically balanced outputs.
Insert Return
Electronically balanced inputs on standard 0.25” (6.35 mm) TRS jack
sockets that are switched into use when the “INS” switch is selected.
Direct Output
Balanced output from the module, delivered to an XLR 3-32 connec-
tor.
Important note:
Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack sockets are connected to FRAME. This is to ensure that the console can comply
with the Electro Magnetic Compatibility (EMC) directive.
INPUT 1
INPUT 2
INSERT RETURN
DIRECT OUTPUT
INSERT SEND
