SERVICE & INSTALLATION MANUAL - Emblem
Initial Setup
4.10 Filter Paper Installation
Make sure the brewer is ON.

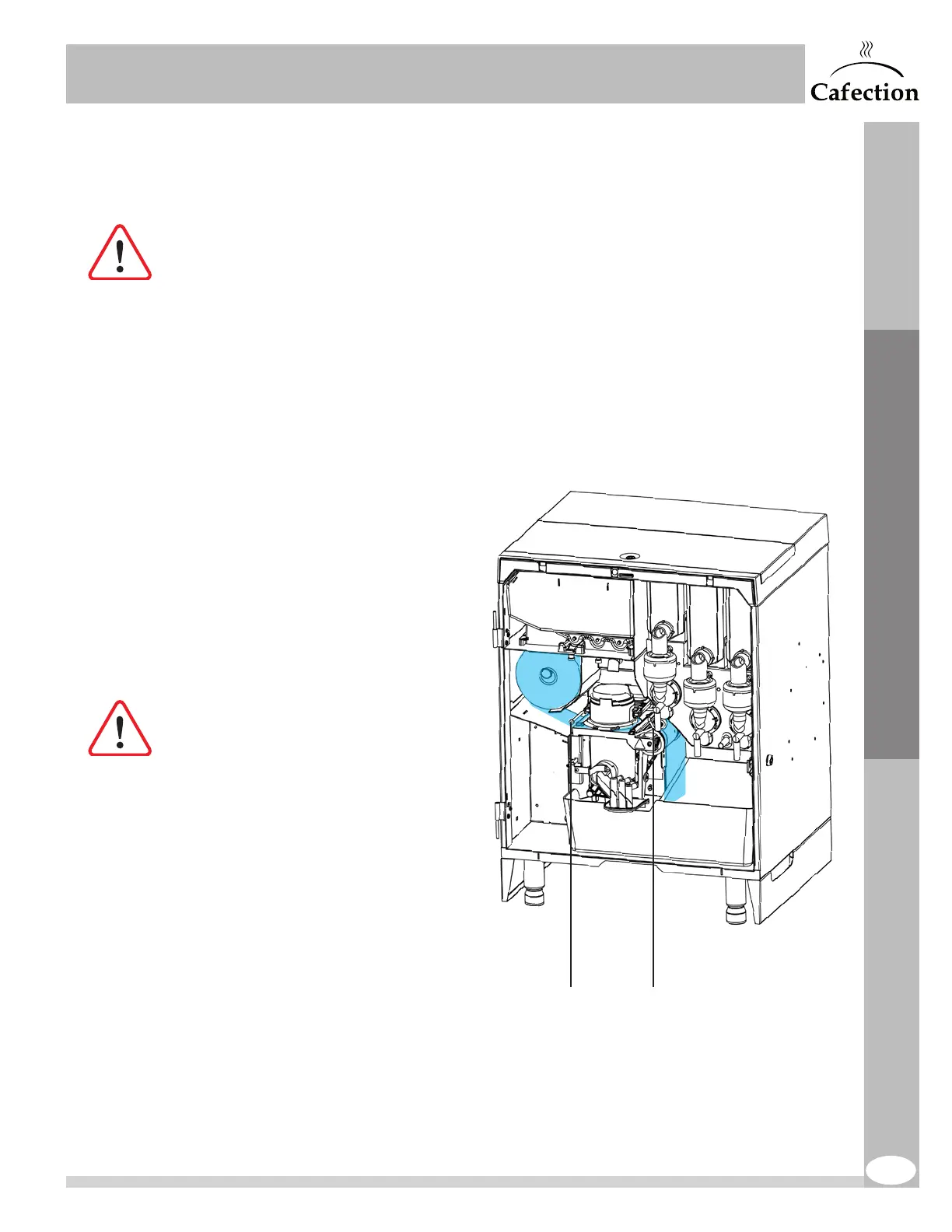

1. Place the filter paper roll on the bracket so it dispenses on the left-hand side (see the diagram
below).
2. Access Service mode by tapping in order on the top left, bottom left and bottom right corners
of the screen and enter NIP5657 (see section6). Press on the "Install Filter Paper" button and
follow the instructions on the screen.
3. Pass the filter paper under the left guide bracket of the brew group, under the brew chamber
and under the wheel guides by gently lifting them using the yoke.
4. Pull on the paper and carry it into
the internal waste bin or through the
chute hole and into the waste bin
(if the machine is equipped with a
chute kit).
5. Make sure the paper is feeding
straight and stays within the guide
bracket.
Improper filter paper feeding will
cause a vacuum leak and may
cause grounds to spill inside the
equipment.
YokeGuide
bracket
