7. The Liquids and Ingredients interface is used to customize the quantity of each
ingredients of the drink.
8. This button is used to reset all recipes to default settings.
9. This button is used to fix a lost or corrupted recipe by resetting it to default settings.
10. Discard any changes done in the current modification.
11. This button is used to save any changes to the current recipe. Any unsaved changes
will be lost.

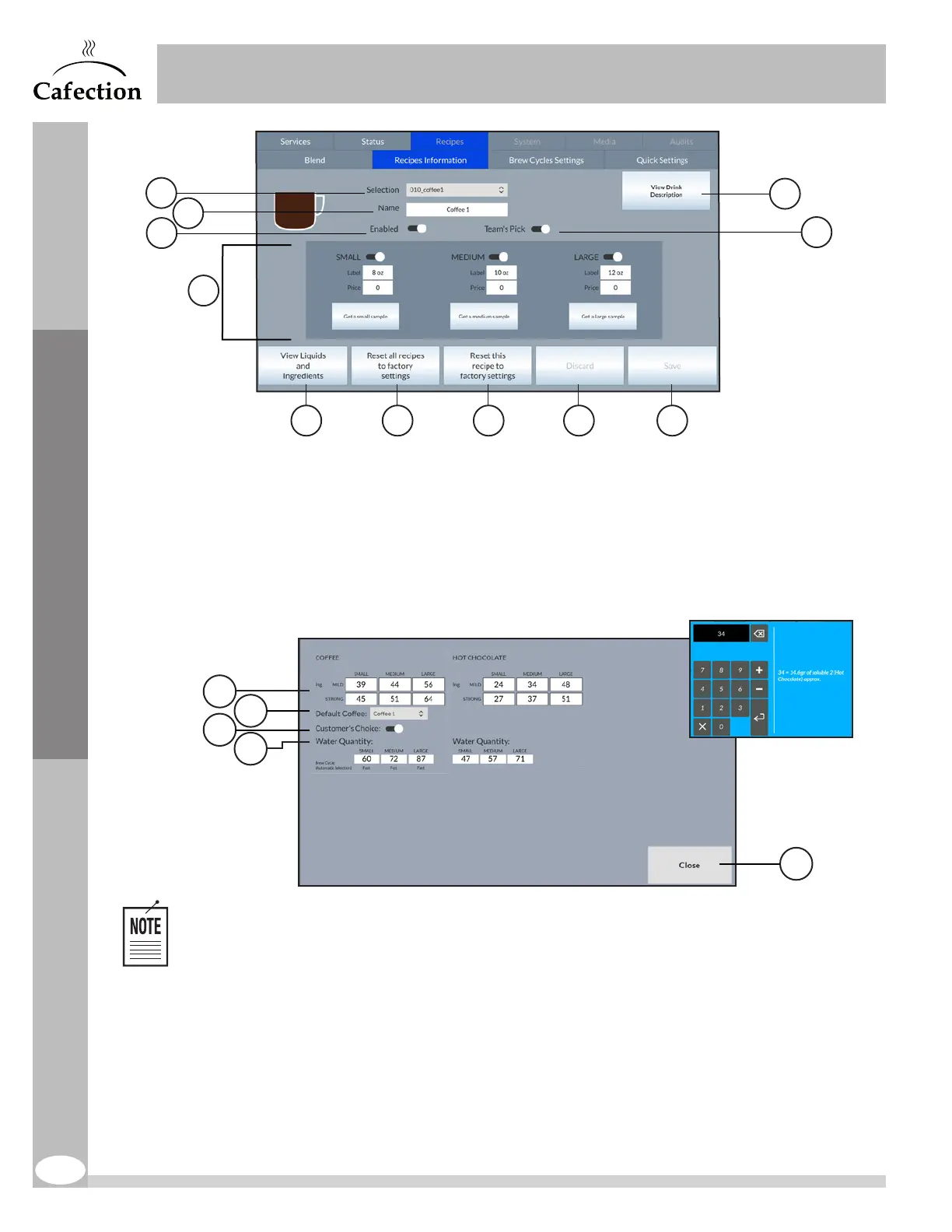

" Liquids and Ingredients " Interface
All values used for the recipes are time values. The water quantity values represent
the amount of time the dispensing water valve is opened. The coffee or soluble
quantity values represent the amount of time the motor is running.
20 units = 1 second.
The right section of the numeric keypad indicates an estimated conversion of the value in units to
a milliliter (ml) and to a US ounce fluid (oz) for liquids, or in grams (g) for the ingredients.
A. This table is used to set the quantity of dry ingredients for each size and strenght of the drink
B. This dropdown menu is used to select the default coffee blend used for the recipe (if applicable).
C. This button is used to allow blend choice by the customer on some recipes.
D. This table is used to set the quantity of water required to brew the recipe. The recipe’s brew
cycle is automatically selected by the software.
E. Select the close button to exit the current recipe Liquids and Ingredients interface and go back to
the Recipes Information sub tab.
Service Mode
1
2
3
7 8 9 10 11
5
6
4
A
B
C
D
E
