SERVICE & INSTALLATION MANUAL for Cafection’s Total Lite
Initial Setup

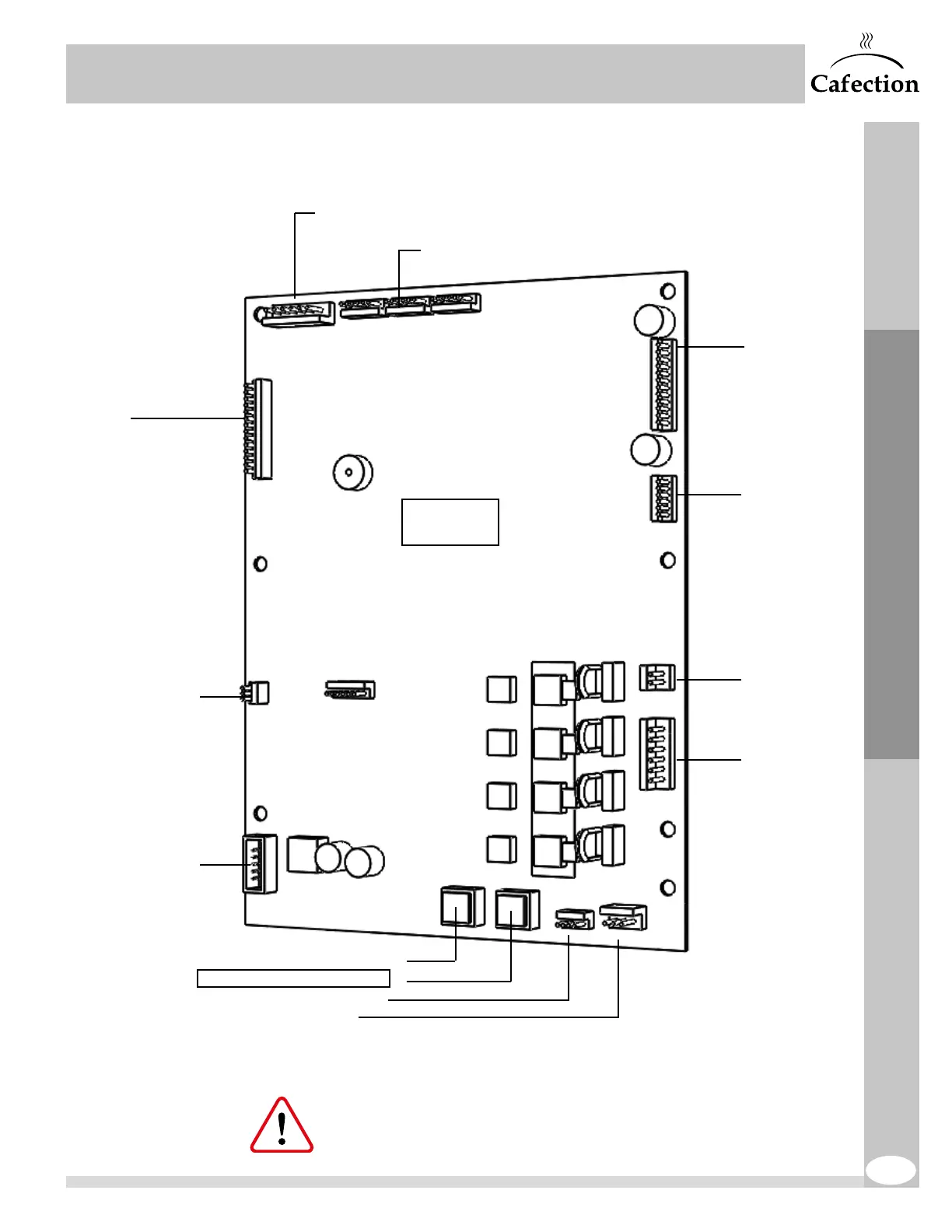

This is a schematic reference drawing only. Not to scale.
The equipment should always be unplugged from the electrical
outlet before servicing any components on this main board.
4.15 Main Board
J11 - MDB port - Coin changer / bill acceptor / card reader
J12 - Thermostat board
J22 -
Numeric input
(switches)
J14 - COM port,
link to touch screen
computer (option 2)
J21 - COM port,
link to touch screen
computer (option 1)
J18 - 24V
Output
J6 - 24V DC output - Fan
J2 - 120V
Input
J19 - 120V
Output
HIGH VOLTAGE AREA
17ELN01
J3 - 24V DC input
J27 - 24V
Output
SW1 - Setup button (White)
SW2 - Service button (Black)
