PRO FARMER TRIPLEXPRO FARMER TRIPLEX
PRO FARMER TRIPLEXPRO FARMER TRIPLEX
PRO FARMER TRIPLEX
PRO FARMER / TS • GENIUSPRO FARMER / TS • GENIUS
PRO FARMER / TS • GENIUSPRO FARMER / TS • GENIUS
PRO FARMER / TS • GENIUS
STANDARD FOXSTANDARD FOX
STANDARD FOXSTANDARD FOX
STANDARD FOX
USO E MANUTENZIONE USO E MANUTENZIONE
USO E MANUTENZIONE USO E MANUTENZIONE
USO E MANUTENZIONE
OPERATING AND SERVICEOPERATING AND SERVICE
OPERATING AND SERVICEOPERATING AND SERVICE
OPERATING AND SERVICE
Rev. 02

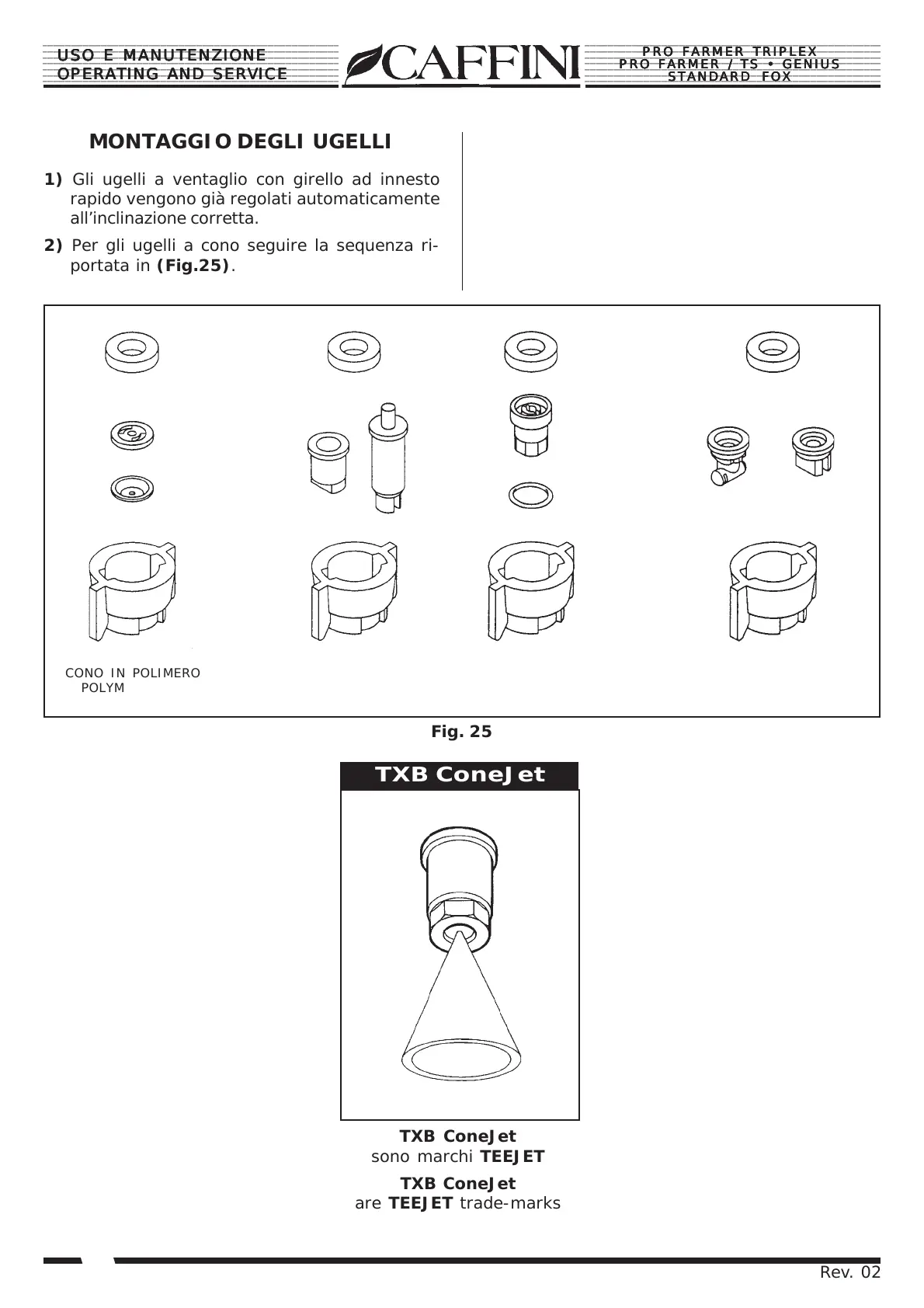

MONTAGGIO DEGLI UGELLI
1) Gli ugelli a ventaglio con girello ad innesto
rapido vengono già regolati automaticamente
all’inclinazione corretta.
2) Per gli ugelli a cono seguire la sequenza ri-
portata in (Fig.25).
TXB ConeJet
TXB ConeJet
sono marchi TEEJET
TXB ConeJet
are TEEJET trade-marks
Fig. 25
CONO IN POLIMERO
POLYMER CONE
TWINJET e A.I.
TWINJET e A.I.
CONO
CONE
VENTAGLIO e
TURBOJET
FAN e TURBOJET
INSTALLATION OF NOZZLES
1) Fan-shaped nozzles with quick-coupling ring
nut are already adjusted automatically at the
correct inclination.
2) For cone-shaped nozzles, follow the instal-
lation sequence as shown in (Fig. 25).
