CAUTION
An all-pole separator with a contact opening width
of at least 3 mm per pole must be provided on the
installation side.
➤ Maximum system impedance in the building con-
nection 0.10 ohms (the impedance can be request-
ed from the energy supplier).
➤ Socket and plug for power connection.
➤ External main switch for power connection.
➤ Supply line and main tap for water connection
(raw water!).
➤ Maximum water line pressure 0.6 MPa (6 bar).
➤ Maximum inlet temperature of the water 20 °C.
CAUTION
Remember to have these preparations made
and to have the appliances at hand on the day of
installation.
CAUTION
Only the water connection hose supplied with
the appliance may be used.
Any other available water connection hoses
must not be used.

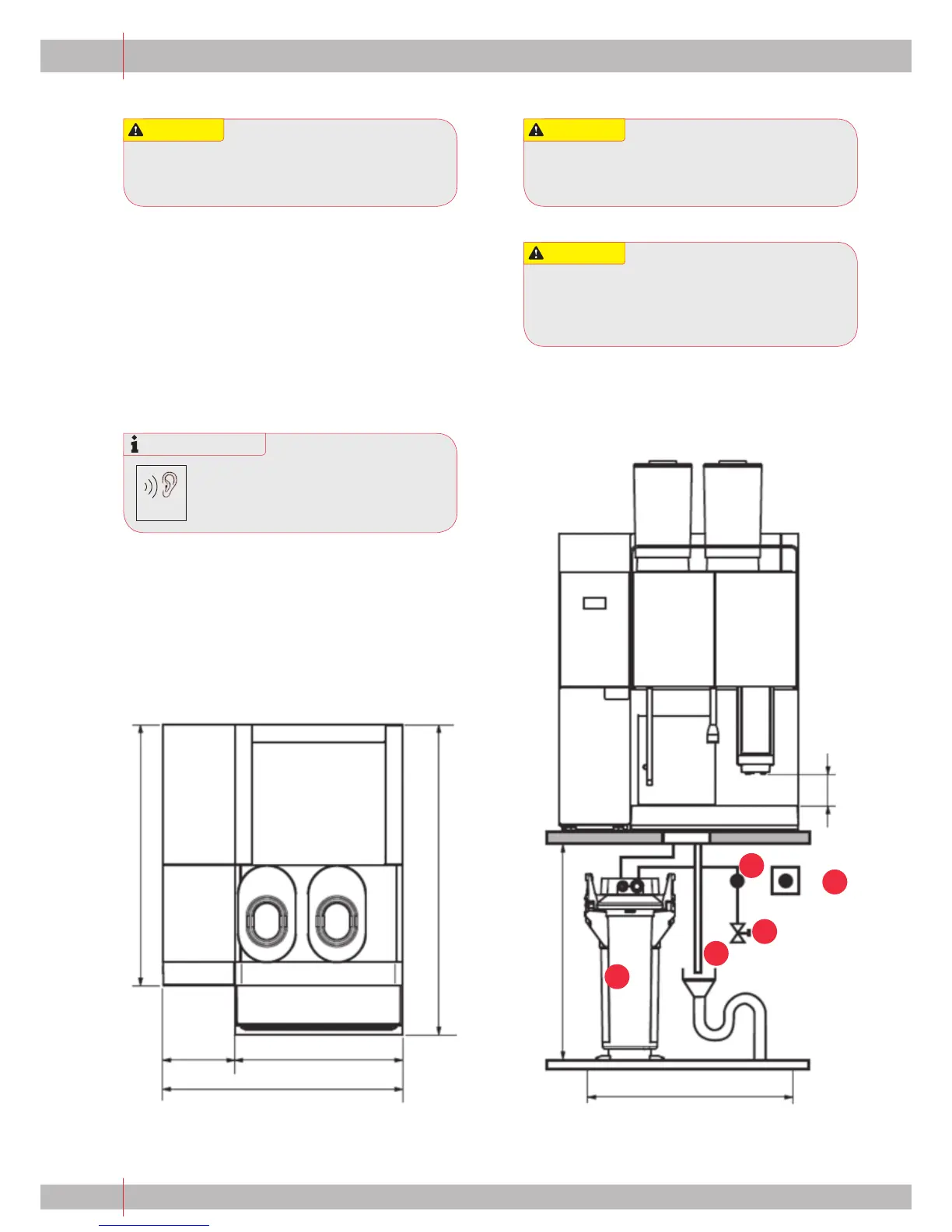

16 Technical Data and Installation Diagram (Continued)
2
3
6
7
8
350 mm150 mm
500 mm
560 - 850 mm
b. a.
547 mm
650 mm
750 mm
Max. 186 mm
66 mm
