CAL Controls CALCOMMS 9300 User Manual

OVERVIEWKey to Program Icons
Overview
CALCOMMS
TM
is a graphic WINDOWS
TM
based software
package designed for PC supervision of CAL Model 3300
and Model 9300 controllers. It offers the capability of
remote adjustment, instrument configuration, cloning, saving
and retrieving instrument settings to files together with
logging and charting in real time.
Communication uses the MODBUS
®
protocol via either a
fully isolated RS232 or RS485 link depending on the number
of instruments and the transmission distances involved in the
application.
PC Requirements
To gain the full benefit of CALCOMMS software, it is
recommend that the PC is fitted with a Pentium processor
and is running WINDOWS 95 or Windows NT programs. A
minimum of 16 Mb RAM is recommended to run the
program, together with enough free hard disc space to
meet logging requirements.
This manual assumes that a mouse or other pointing device
will be employed, but alternatively or in an emergency the
standard WINDOWS key convention can be used to operate
or close the program.
Because the controllers are “stand alone” they do not need
PC supervision for their normal function, and will continue to
control the process unaffected by failure of any part of the
communications loop.

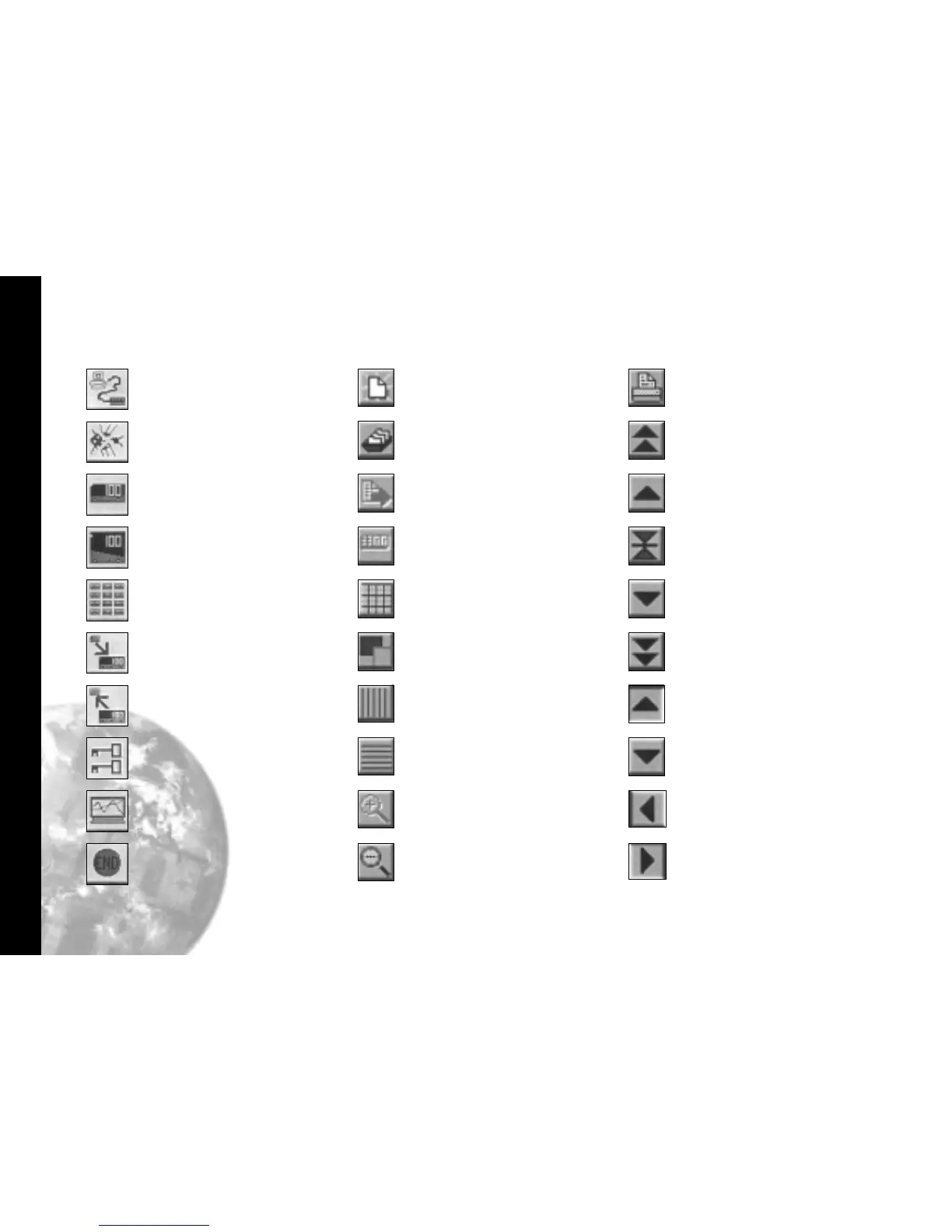

Key to Program Icons
Change comms settings &
start monitoring
Toggle Modbus comms
de-bug window
Add new instrument 3300
Add new instrument 9300
Arrange instruments in grid
Make instruments larger
Make instruments smaller
Set security locks
Add new chart recorder
Close program
Create new file
Print chart recorder
Scroll chart up 100%
Scroll chart up 10%
Find chart zero
Scroll chart down 10%
Scroll chart down 100%
Expand verticle scaling range
Decrease verticle scaling range
Increase time/division
Decrease time/division
Open existing file
Export file in text format
Select units to record
Toggle grid density
Select background colour
Select primary grid colour
Select grid colour
Make chart bigger
Make chart smaller
Copyright CAL Controls Ltd. 1997
Not to be reproduced without prior written permission from
CAL Controls Ltd. Whilst every effort has been made to ensure
the accuracy of the specifications contained in this manual,
due to our policy of continuous development, CAL Control Ltd.
reserves the right to make changes without prior notice.
