Termination resistors
–
120Ω
Tx
Rx
+
+
–
+
–
+
–
Tx
Rx
+
–
+
–
Tx
Rx
+
–
+
–
Tx
Rx
120Ω
Instrument 1 Instrument 2 Instrument ‘N’

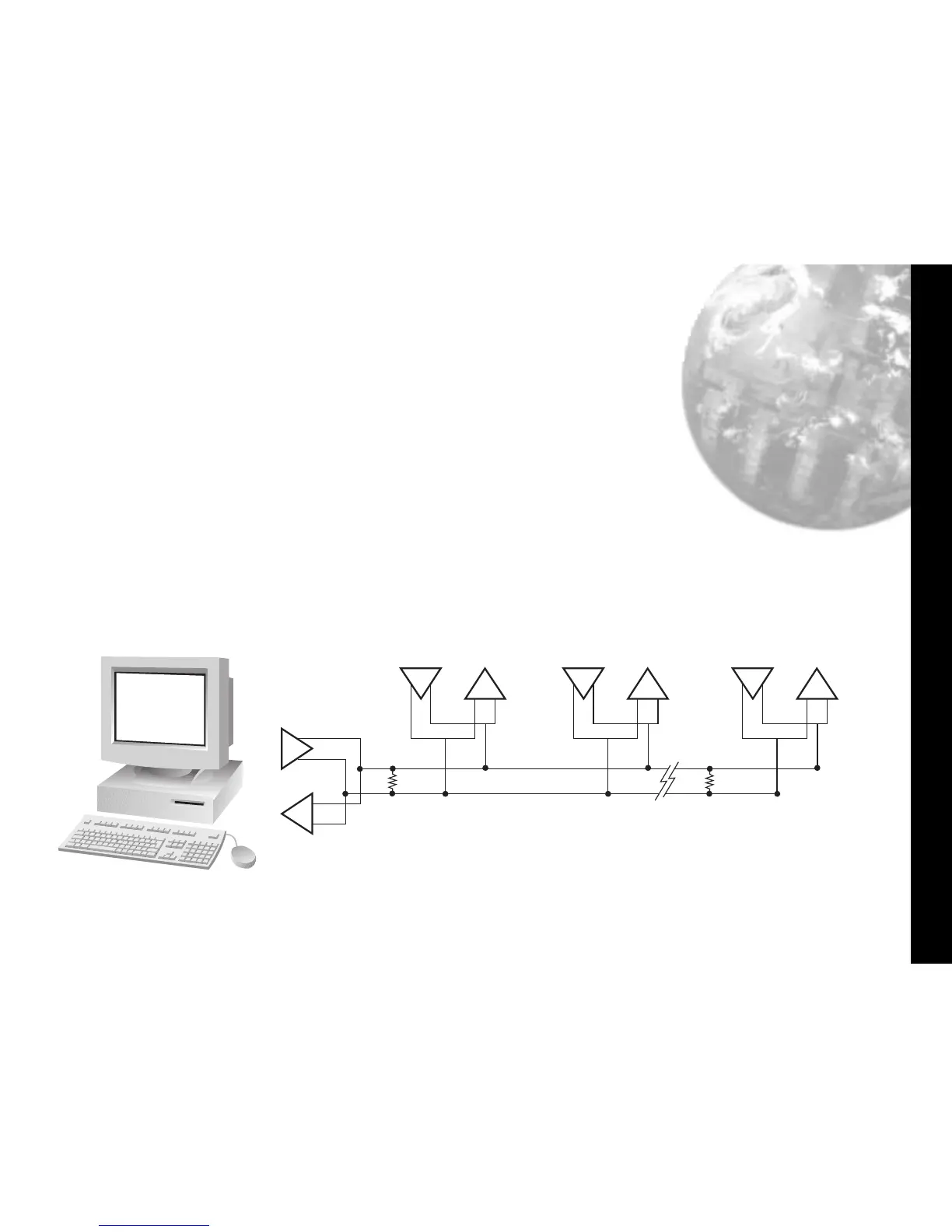

Each RS485 interface has specific connection and
termination biasing requirements which will be detailed in
their installation instructions. The general principles are as
follows.
Terminations Because each wire is a transmission line, it
must be properly terminated to prevent reflections. Where
multiple instruments are daisy-chained together, a 120 ohm
terminating resistor should be fitted at the connection to
the PC and to the last instrument in the chain.
