4.1 Dissemble Vehicle Panel
The first step of the installation requires removing the panels on the driver’s side of the vehicle. The
panel you remove depends on the selected install location. The following instructions show the typical
under the dashboard panel removal.
To Remove the Panels:
1. Remove the panel above the vehicle’s OBD-II port.

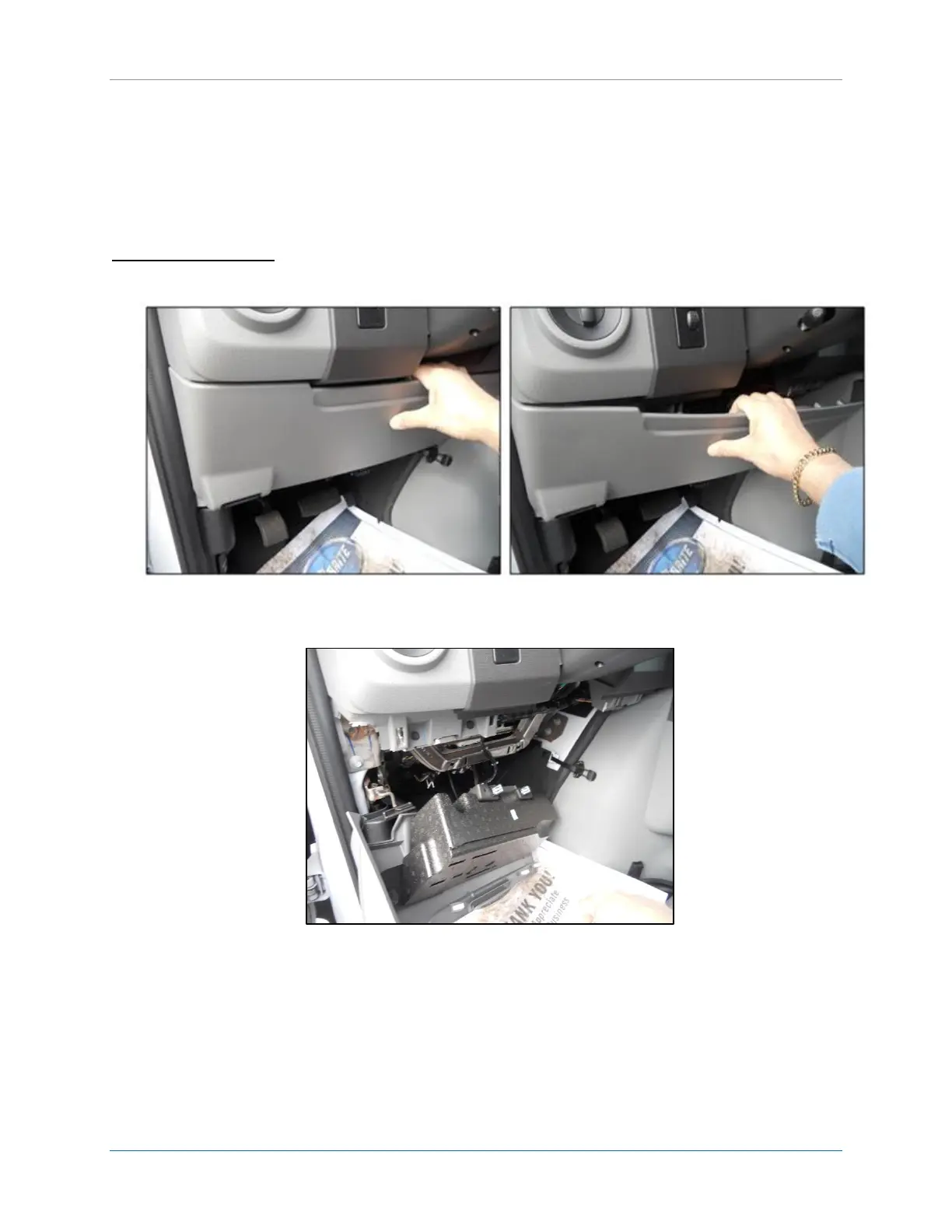

Figure 4: Remove Bottom Panel
2. Place your hand on the panel indentation, and then gently pull down until the panel snaps out.
Figure 5: Bottom Panel Removed
