CalAmp | LMU-30xx/CVF-3030 & OBD-II Extender Cable Install Guide
Page 10 MBUD-0268v1.4
4.2 Connect the OBD-II Extender Cable and LMU-30xx/CVF-3030 Device
After you have successfully removed the panels, connect the OBD-II Extender Cable and LMU-30xx/CVF-
3030 device.
To Connect the OBD-II Extender ion Cable and LMU-30xx/CVF-3030 Device:
1. Hold the OBD-II Extender Cable by the female connector.

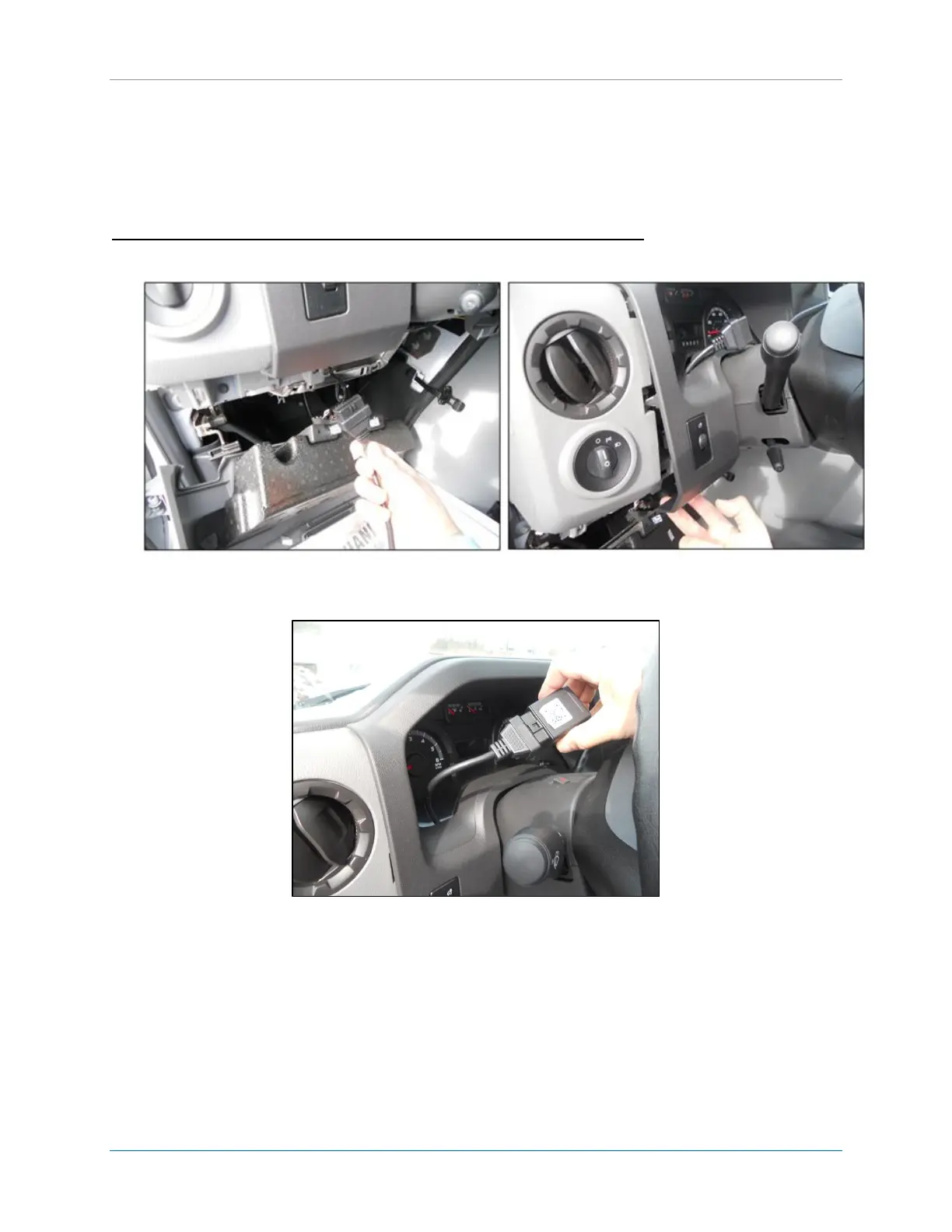

Figure 7: Guide the Extender Cable behind the Panel
2. Guide the OBD-II Extender Cable from below the dashboard up through the panel opening.
Figure 8: Connect the LMU-30xx/CVF-3030 Device
3. Connect the LMU-30xx/CVF-3030 device to the female connector of the OBD-II Extender Cable.
