Calculated Industries Construction Master 5 - Squaring-Up a Foundation; Pitch and Roof Angle Conversion

POCKET REFERENCE GUIDE — 29
Squaring-Up a Foundation
Square-Up 15 Feet 6 Inch (Run) x 10 Feet
2 Inch (Rise):
KEYSTROKE DISPLAY
o o 0.
1 5 f 6 i R
RUN 15 FEET 6 INCH
1 0 f 2 i r
RISE 10 FEET 2 INCH
d DIAG 18 FEET 6-7/16 INCH
Pitch — Converting Roof Angle
Find the % Grade, Pitch Ratio/Slope and
Pitch in Inches if the roof angle is 30.25°:
KEYSTROKE DISPLAY
o o 0.
3 0 • 2 5 p PTCH 30.25°
p %GRD 58.31828
p SLP 0.583183
p PTCH 7 INCH

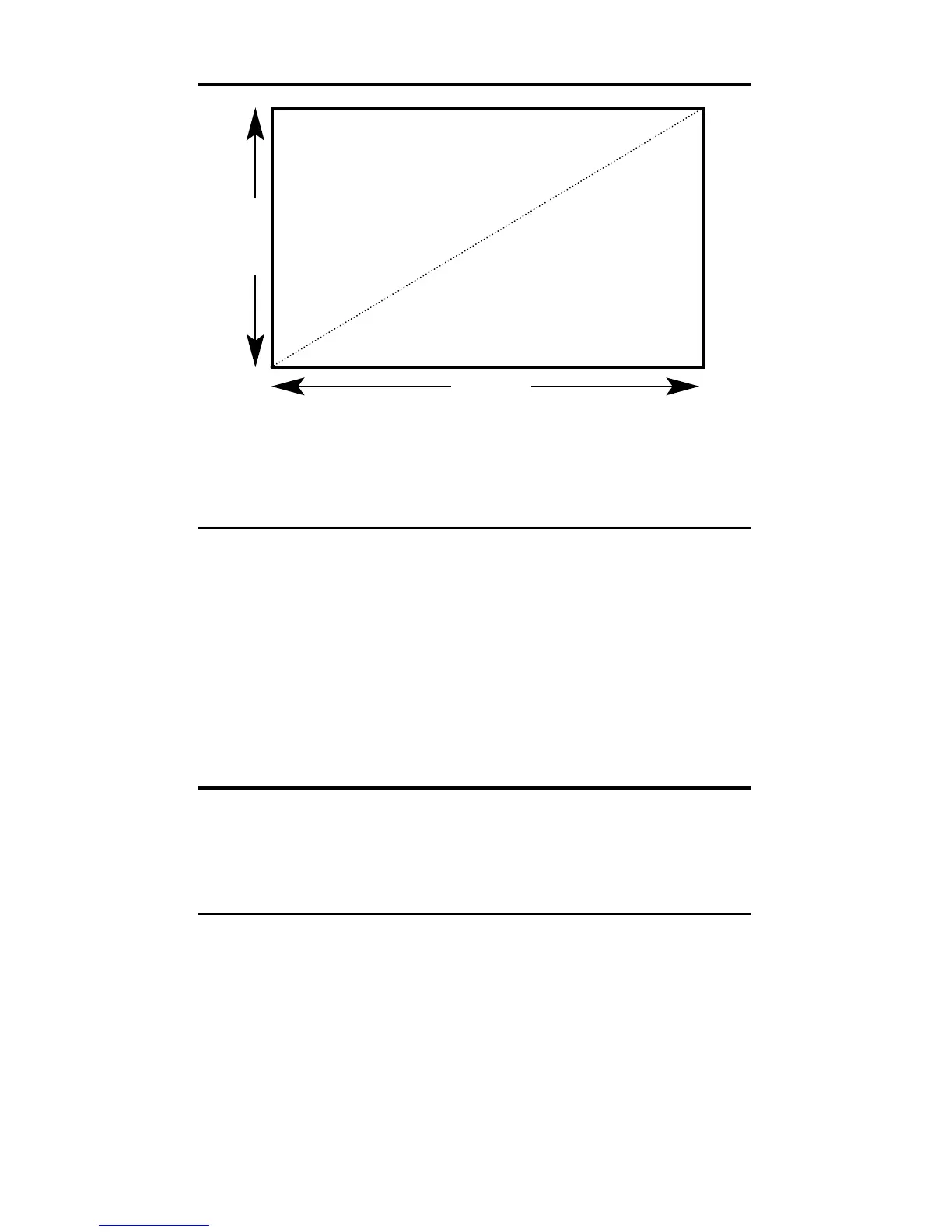

10’ 2”
15’ 6”
Square-Up (Diagonal)
Dgm-SUD-105
