POCKET REFERENCE GUIDE — 31

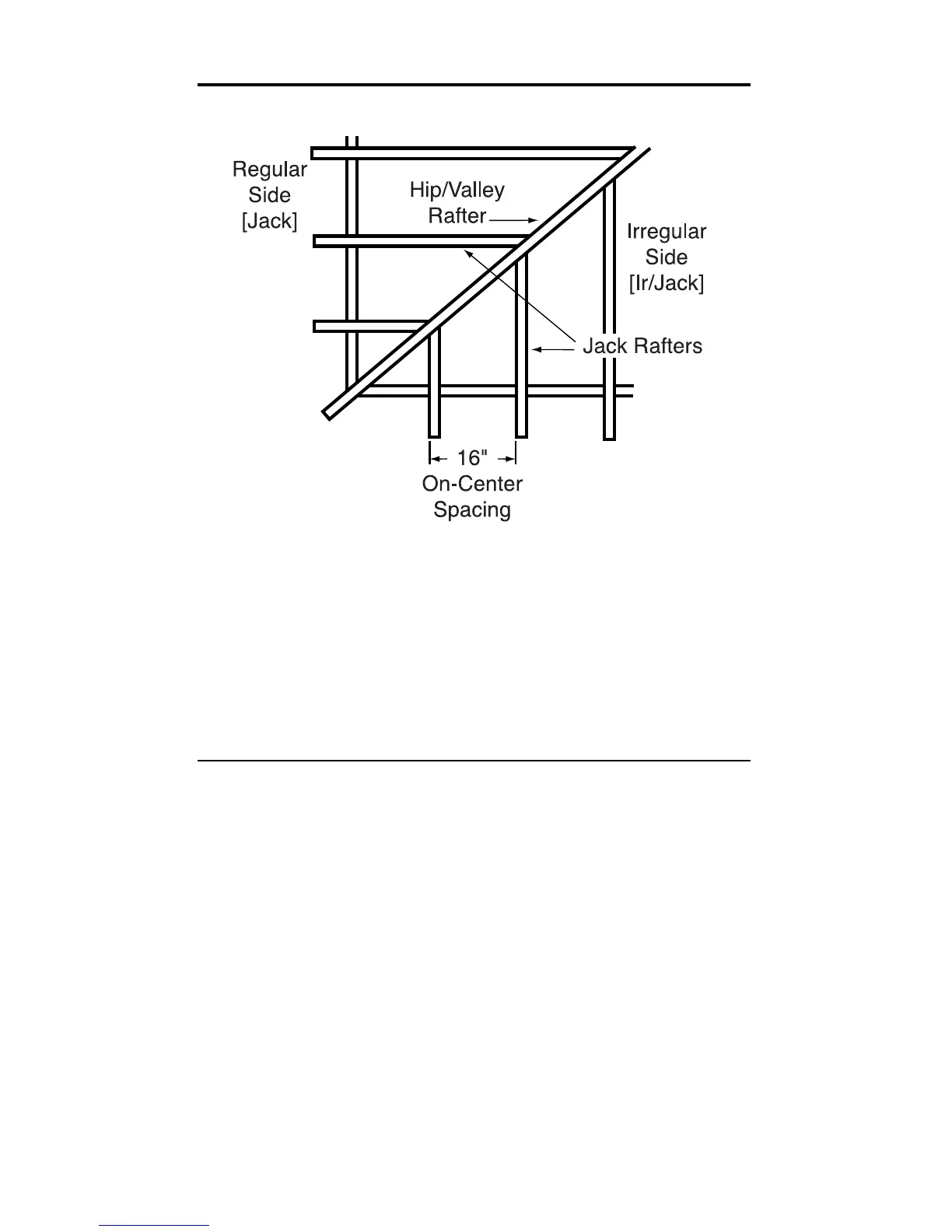

Regular Hip/Valley and Jack Rafters
A roof’s Pitch is 9/12 and half the total
Span is 6 Feet. Find the lengths of the
Common, Hip/Valley and Jack rafters
(Jack rafters at 16 Inch On-Center
spacing):
KEYSTROKE DISPLAY
1. Find the Common rafter length:
o o 0.
6 f R RUN 6 FEET 0 INCH
9 i p PTCH 9 INCH
d (Common) DIAG 7 FEET 6 INCH
(Cont’d)
Dgm-Raft-106
