ELECTRICAL INSTALLATION
IMPORTANT: If you ever need to move or relocate your Caldera
®
spa, it is essential that you understand and apply these installation requirements. Your Caldera spa
has been carefully engineered to provide maximum safety against electric shock. Remember, connecting the spa to an improperly wired circuit will negate many of its
safety features.
NOTE: Long wiring runs may require larger-gauge wire than stated.
GENEVA
™
,
TAHITIAN
®
, NIAGARA
®
, AND ELATION
®
CAUTIONS
USE COPPER CONDUCTORS ONLY
USE SUPPLY WIRES SUITABLE FOR 75°C/167°F.
DISCONNECT ALL SUPPLY CONNECTIONS BEFORE SERVICING.
CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND-FAULT INTERRUPTER.
THESE SPAS ARE INTENDED FOR USE WITH GFCI SUBPANEL
PROVIDED.
ALL CANADIAN SPA MODELS USE #8 AWG GREEN, GROUND.
INCORRECT WIRING WILL DAMAGE CIRCUIT BOARDS.
REFER TO THE WIRING INSTRUCTIONS INCLUDED WITH THE SUB-
PANEL FOR DETAILED WIRING INSTRUCTIONS.

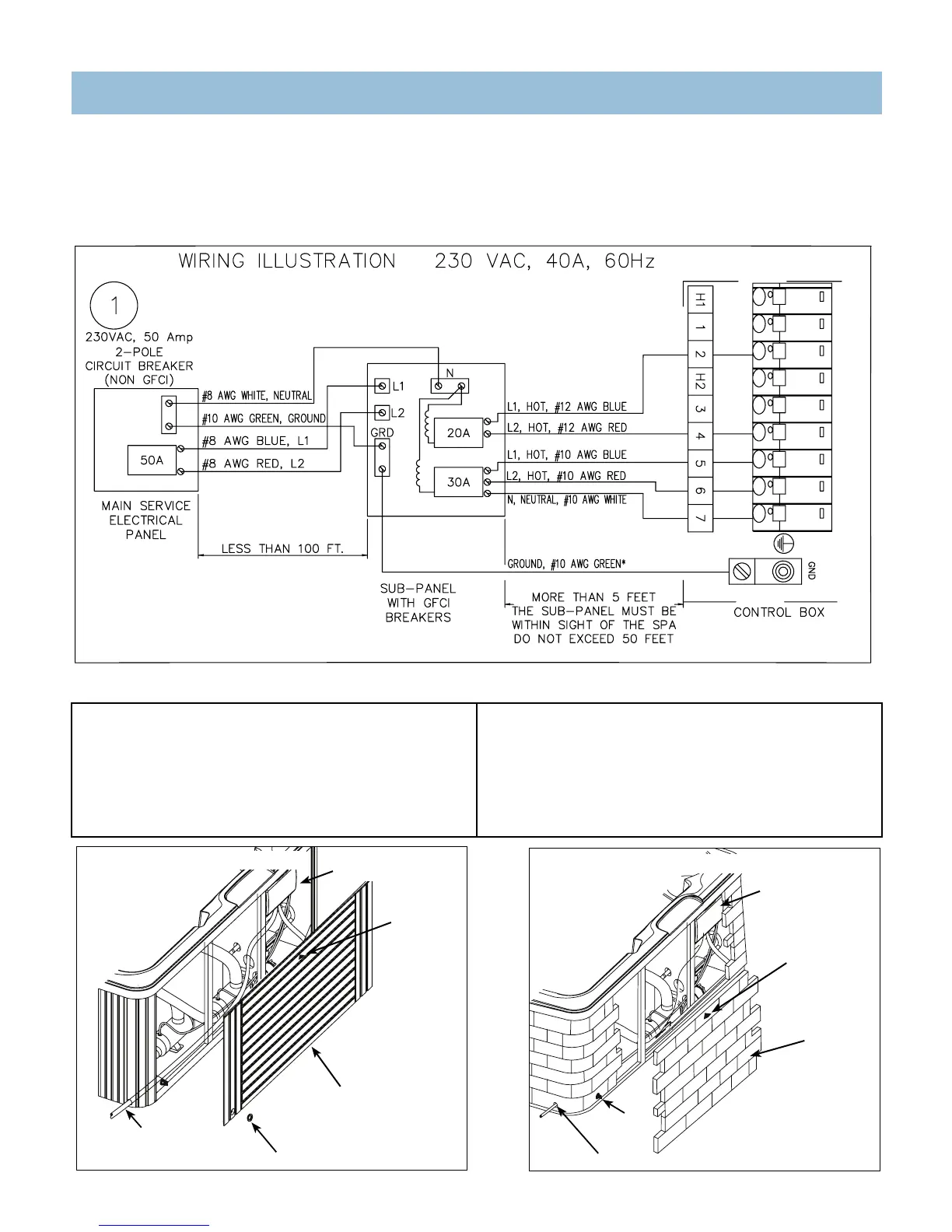

POWER CONNECTION ACCESS
230V WIRING ACCESS
OPENINGS ON LEFT & RIGHT
HAND SIDE
EQUIPMENT
COMPARTMENT
DOOR
CONTROL BOX
DRAIN VALVE
POWER CONNECTION ACCESS (STONESCAPE)
CONTROL BOX
EQUIPMENT
COMPARTMENT
DOOR
DRAIN VALVE
230V WIRING ACCESS DRILL CONDUIT HOLE ON LEFT OR RIGHT HAND SIDE
LIGHT COVER
LIGHT
COVER
