Page 16 of page 38
C
ALIX
2364 ONT I
NSTALLATION
G
UIDE
3 - 2364 ONT I
NSTALLATION
S
TEPS
2.
Attach the bottom of
the 2364 ONT panel on
the bolt, as shown in
Figure 3-4
.

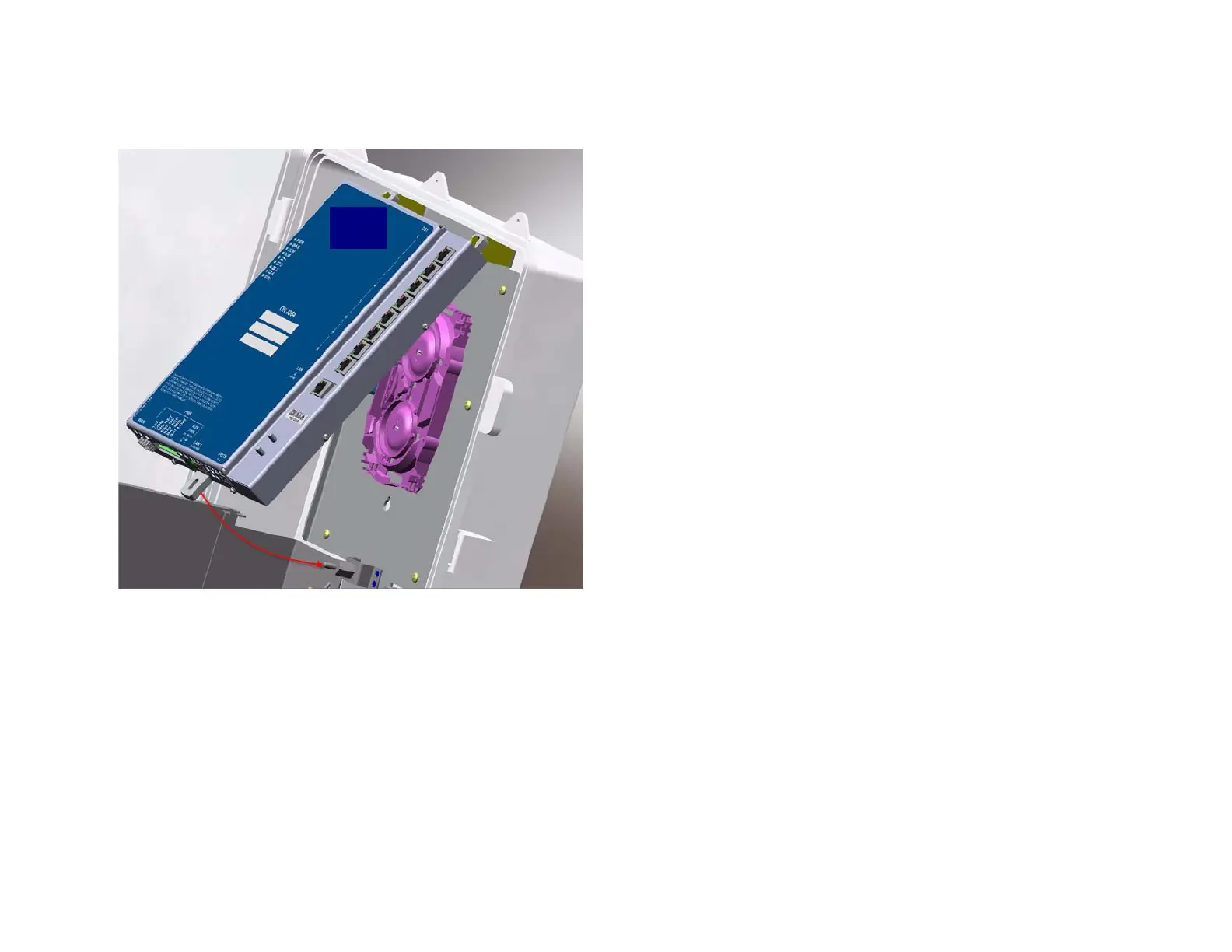

Figure 3-4: Using the Attachment Bo
lt on the 2364 ONT Electronics Panel
18
20
