Page 17 of page 38
C
ALIX
2364 ONT I
NSTALLATION
G
UIDE
3 - 2364 ONT I
NSTALLATION
S
TEPS
3.
Secure the 2364 ONT electroni
cs panel to the enclosure wi
th a 10-32 KEP nut,
as shown in
Figure 3-5
.

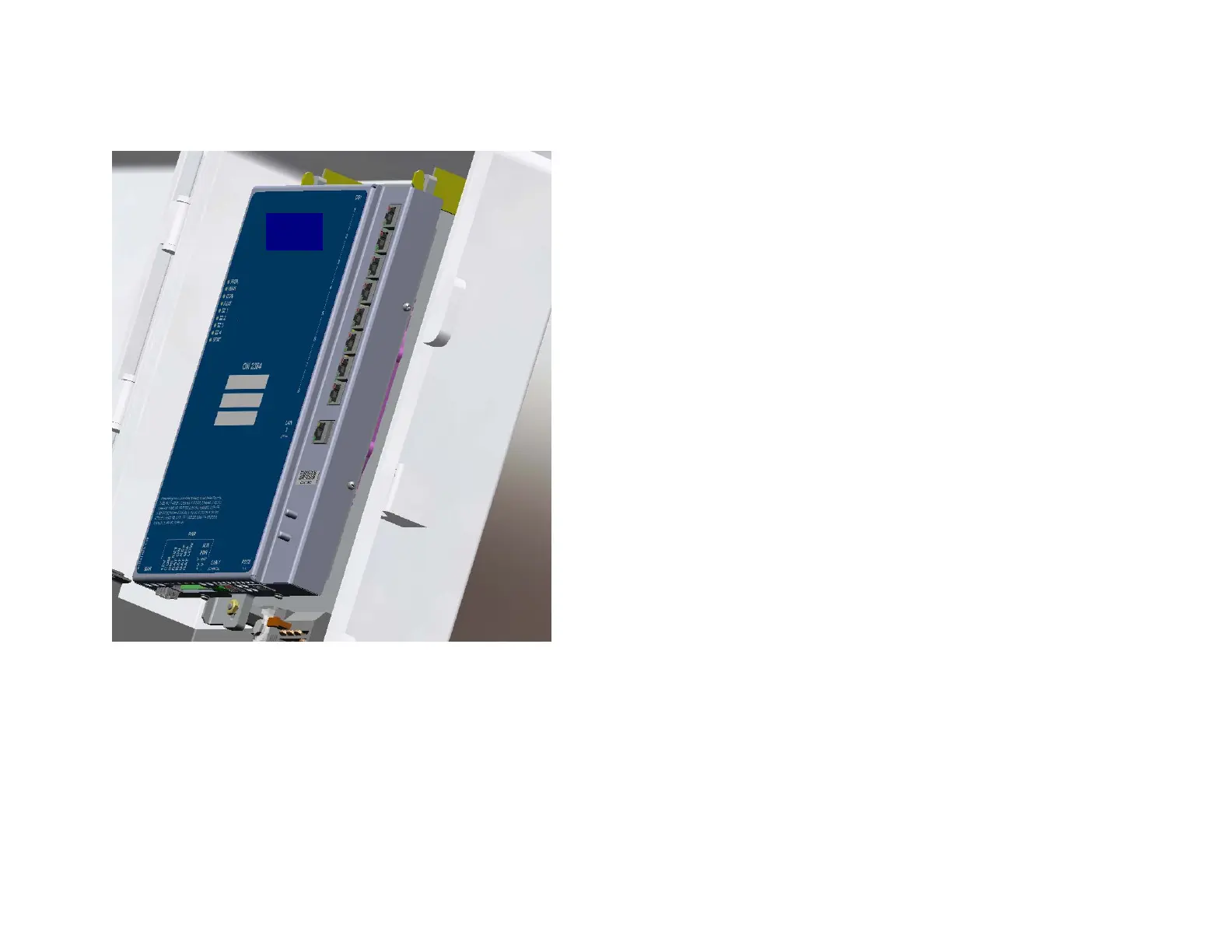

Figure 3-5: Securing the 2364 ONT Electronics Panel
19
21
