Calorex Pro-Pac 45 - Page 39

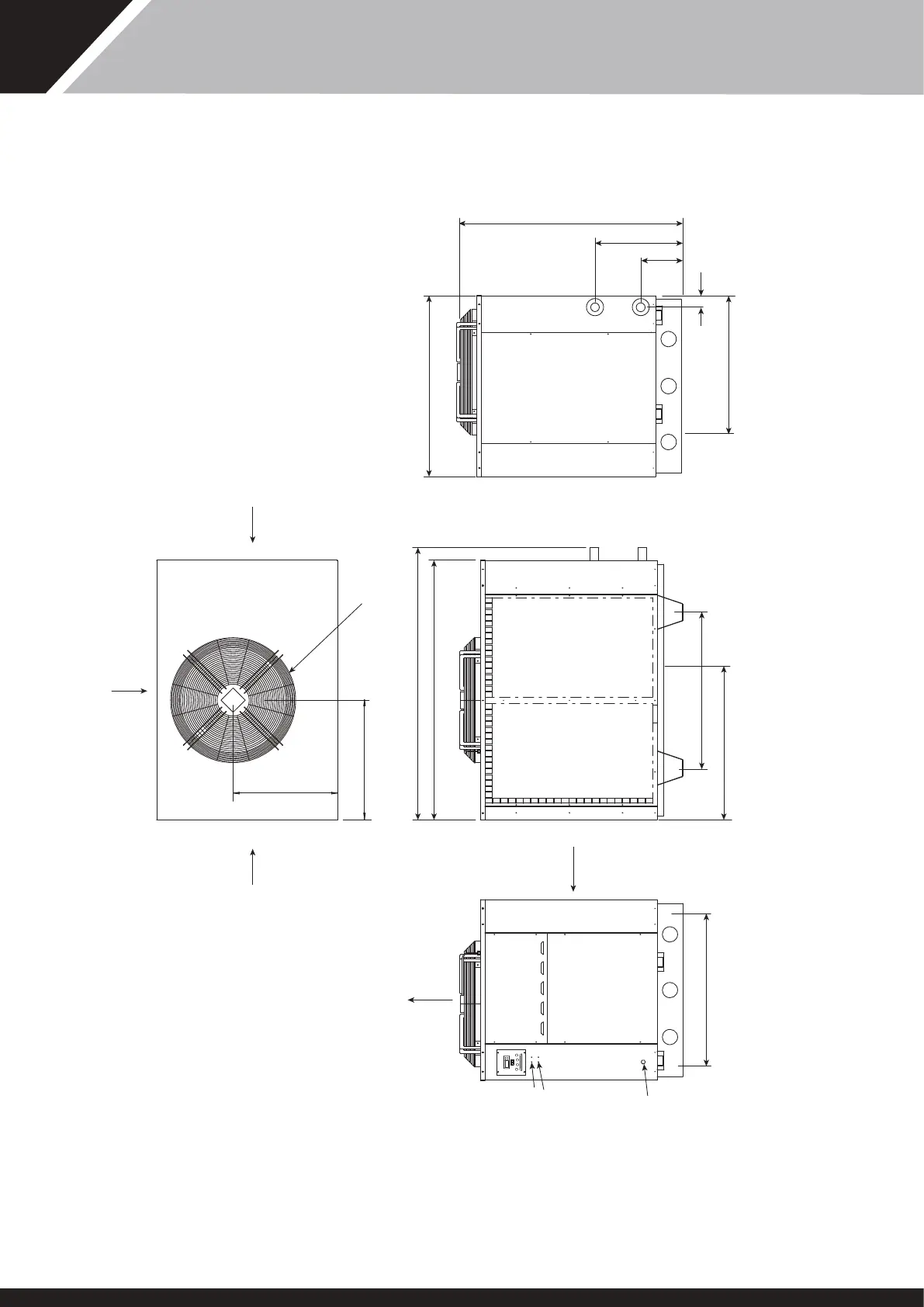

Pro-Pac PP45M/MY
DIMENSIONS IN mm
ISSUE 1
ALLOW 500mm FOR ACCESS TO SERVICE PANELS
WATER CONNECTIONS 1½" BSPM CONDENSATE 1½" BSPM
SERVICE
PANEL
NOMINAL FAN
DIAMETER 730
SERVICE
PANEL
735
610
SERVICE
PANEL
1590
1665
WATER
IN
WATER
OUT
1054
CONDENSATE OUT
POSITION IN BASE
AIR IN
AIR OUT
CONSOLE
HP SWITCH
LP SWITCH
(AUTO RESET LP
SWITCH ON Y
MACHINES)
SERVICE PANEL
ELECTRIC BOX
ACCESS
SERVICE
PANEL
MAINS IN
*970
*FIXING CENTRES TO SECURE MACHINE
*985
235.5
502.5
65
1060
1330
850
CONDENSATE OUT
POSITION IN BASE
SERVICE
PANEL
