Calpeda I-MAT 5,2 TT-A User Manual

EN
I-MAT_Ed6 - Operating Instructions Page 29 / 164
1.5. Technical assistance
Any further information about the documentation, technical assistance and spare parts, shall be requested
from: Calpeda S.p.A. (paragraph 1.2).
2. Technical description
I-MAT is a frequency converter that could be mounted in a control box or on a motor.
The frequency converter is manufactured in accordance to EN61800-3:2005-07 acc. EN55011 limit B until
a 7,5 kW, limit A1 until a 55kW.
2.1. Intended use
The frequency converter is made for pumps with three-phase motor, in domestic, civil and industrial
systems.
2.2. Improper use
The device is designed and built only for the purpose described in paragraph 2.1.
Improper use of the device is forbidden, as is use under conditions other than those indicated in
these instructions.
Improper use of the product reduces the safety and the efciency of the device, Calpeda shall not be
responsible for failure or accident due to improper use.
2.3. Marking

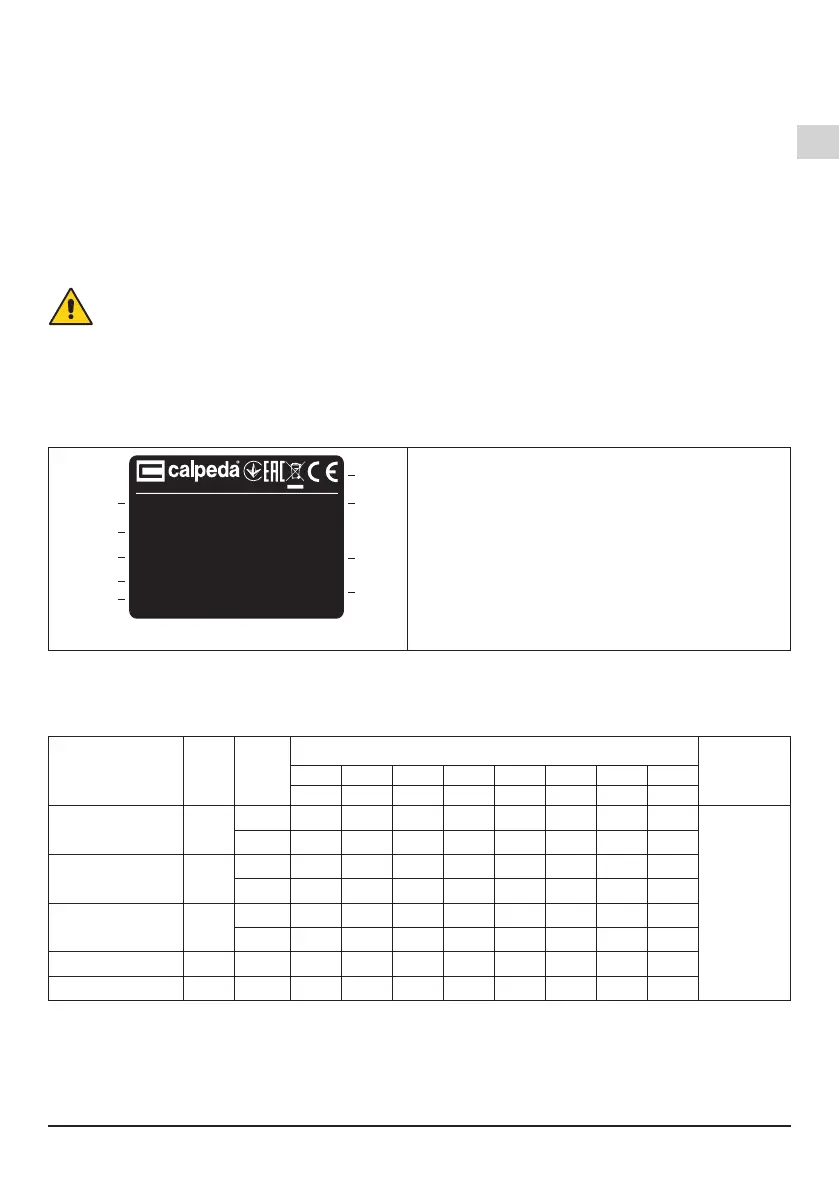

The following picture is a copy of the name-plate that is on the external case of the product.
I-MAT XXXX
RoHS
COMPLIANT
AAAAXXXXX
IN: 3~ 380-480V 50/60Hz
OUT: 3~ 380-480V 50/60Hz max XX A
Tamb 50° IP 55 XX kg
IE2 (90:100) XX%
1
3,4
5,6
8,9,10
11
12
2
7
12
Montorso (VI) Italy IT 00142630243
Made in Italy
1 Type
2 Serial number (AAAA Year of manufacture)
3 Supply voltage
4 Supply frequency
5 Output voltage
6 Output frequency
7 Maximum output current
8 Maximum ambient temperature
9 Protection
10 Weight
11 Efciency Class
12 Certications
3. Technical features
3.1. Product efciency
Based on its efciency characteristics the IMAT easily meets the requirements for IE2 classication.
The table below shows the results calculated at various operating points of the inverter:
Type Inom
[A]
Fpwm
[k Hz]
% partial frequency / % partial load Class of
efency
according
EN 50598-2
0/25 0/50 0/100 50/25 50/50 50/100 100/50 90/100
% % % % % % % %
I-MAT 5,2 TT-A 5,2
4 2,2 2,5 3,4 2,2 2,5 3,5 2,6 3,7
IE2
8 2,5 2,9 3,9 2,5 2,9 4,0 3,0 4,1
I-MAT 11,2 TT-B 11,2
4 1,9 2,2 3,0 1,9 2,2 3,1 2,4 3,4
8 2,4 2,8 3,9 2,5 2,9 4,0 3,0 4,3
I-MAT 25,8 TT-C 25,8 4 1,1 1,4 2,3 1,1 1,4 2,5 1,6 2,8
8 1,4 1,8 3,0 1,4 1,9 3,2 2,0 3,5
I-MAT 65,4 TT-D 65,4 4 0,9 1,2 2,0 1,0 1,3 2,2 1,4 2,5
I-MAT 119 TT-E 119 4 0,7 1,0 1,9 0,7 1,0 2,0 1,2 2,3
3.2. Technical features
Supply voltage: 3~380 VAC-10% ÷ 3~480 VAC+5%
IP protection: IP55
Liquid Crystal Display
Keyboards: 6 pushbuttons
I-MAT_Ed6.indd 29I-MAT_Ed6.indd 29 18/11/20 08:2018/11/20 08:20
