Camco Vortex Series - SPEAKON Connection and Multi-Channel Operation

3 INSTALLATION
+
ch A(C)
ch B(D)
1+
2+
Input
Channel A(C)
Z ≥ 8 Ω
Input
Channel D
Input
Channel C
Input
Channel B
Input
Channel A
3
1
2
1
3
2
3
1
2
3
1
2
To Ch. D
input stage
To Ch. C
input stage
To Ch. B
input stage
To Ch. A
input stage
Input
Ground
Lift
Input Ground Lift in position:
grounded
USER MANUAL
VORTEX 3 QUADRO
P.14
USER MANUAL
VORTEX 3 QUADRO
P.1
5

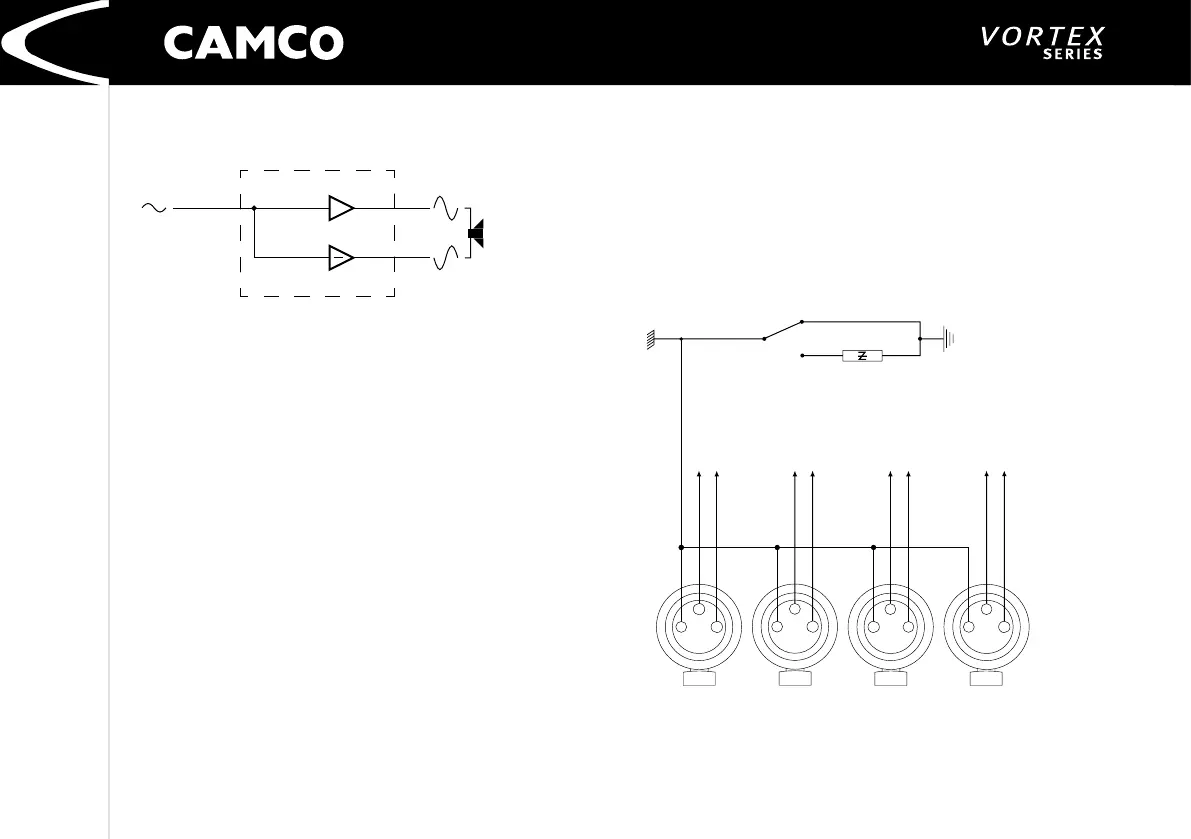

3.8.3 Mono-Bridge
One-channel mono bridged operation.
The second channel processes the same input signal, but with reversed phase.
The (single) load is connected between the two positive channel outputs
(1+/2+) using a suitable connected SPEAKON connector. While the total output
of the amplier remains the same, both the available output voltage and the
minimum impedance that can be connected are doubled, as compared with
stereo operation. Only Channel A(C)-Input is active
– turn the volume on
Channel B(D) down to zero.
WARNING!
In Mono-Bidge mode RMS output voltages are as high as 230 V. Wiring
to the speaker loads must conform to NEC Class 3 safety standards or its
equivalent that meets all national and local electric codes.
All customer specic cables may only be manufactured by qualied
suppliers/personnel. All cabeling or rewiring work must be carried out by
qualied personnel.
3.9 Wiring
3.9.1 XLR Connection
XLR:
Pin 1 Ground (or lifted via 15 Ohm resistor)
Pin 2 Hot
Pin 3 Cold
Always use symmetrical (balanced) shielded cable to connect the amplier.
