Camco Vortex Series - Two-Channel Operation Modes

3 INSTALLATION
+
+
+
+
VORTEX 3 QUADRO
≥ 4 Ω
≥ 4 Ω
≥ 4 Ω
≥ 4 Ω
ch A
ch B
ch C
ch D
+
+
+
+
VORTEX 3 QUADRO
≥ 4 Ω
≥ 4 Ω
≥ 2 Ω
ch A
ch B
ch C
ch D
USER MANUAL
VORTEX 3 QUADRO
P.16
USER MANUAL
VORTEX 3 QUADRO
P.17

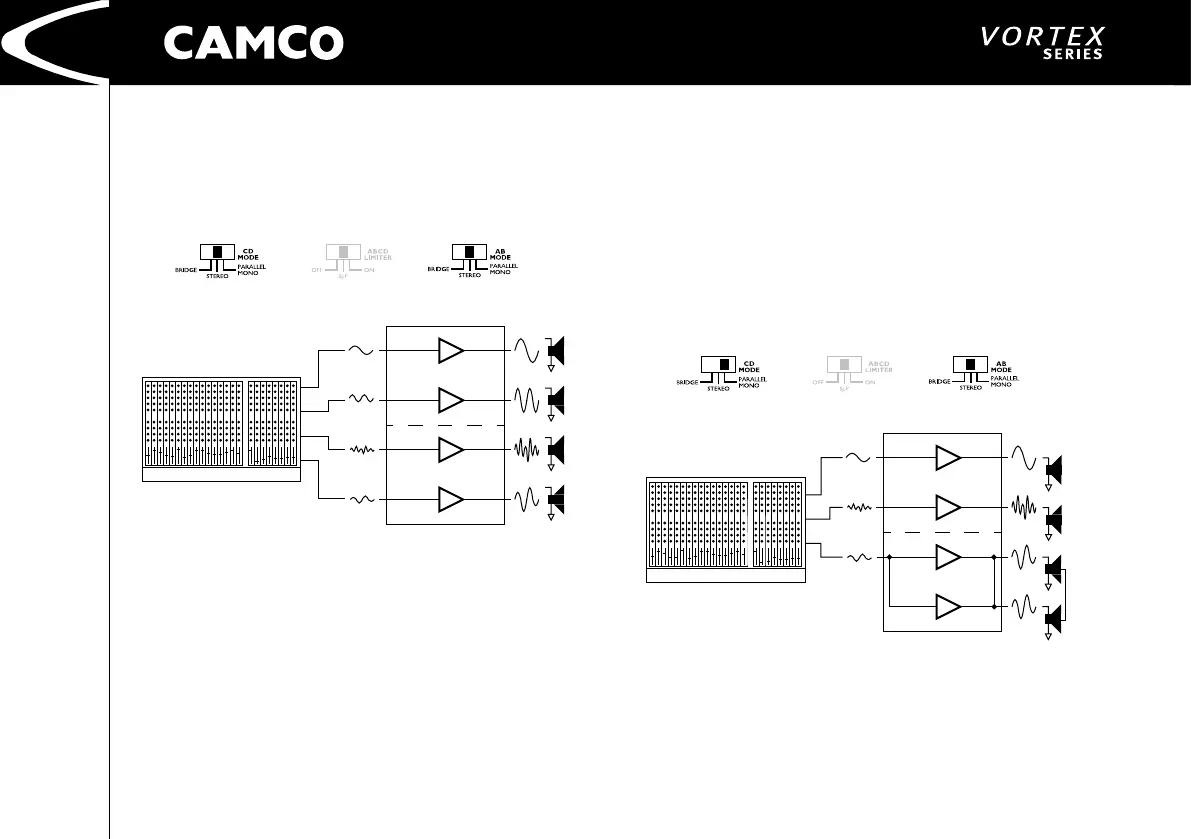

3.9.3 Four-Channel Operation
Four fully independent amplier channels give the opportunity of use in several
applications, such as: multi-channel monitor systems, four channel reproduction,
compact amplication in active 2- or 4-way systems ...
3.9.4 Three-Channel Operation
Three-Channel Operation is the choice for eg. stereo systems with subwoofer or
compact amplication in active 3-way systems
With its capability to be set to Mono-Bridge or Parallel-Mono the VORTEX 3
QUADRO gives the possibility to be adapted to the impedance of your sub-
woofer .
3.9.4.1 Stereo / Parallel-Mono
With one amplier set to Parallel-Mono the VORTEX 3 QUADRO is capable to
drive a two ohms load.
