Camco Vortex Series - Mono-Bridge Configurations

3 INSTALLATION
+
+
+

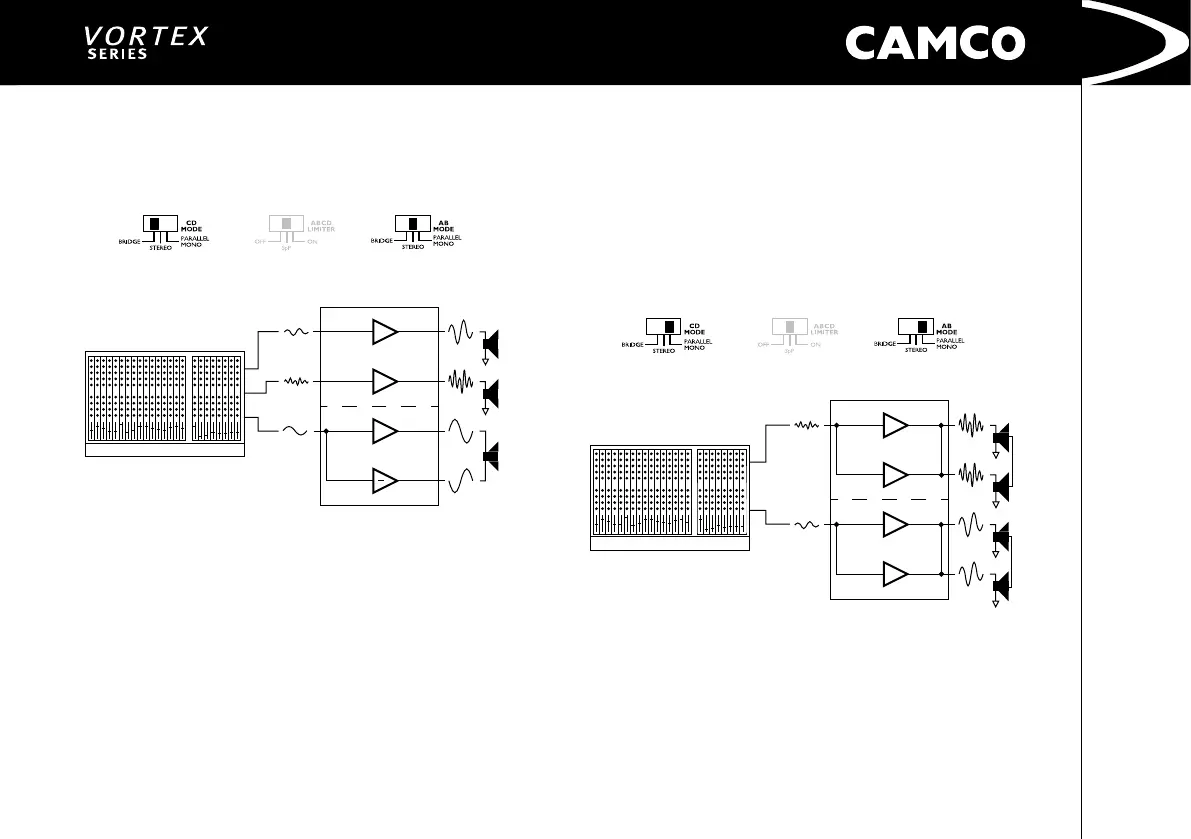

VORTEX 3 QUADRO
≥ 4 Ω
≥ 4 Ω
≥ 8 Ω
ch A
ch B
ch C
ch D
+
+
+
+
VORTEX 3 QUADRO
≥ 2 Ω
≥ 2 Ω
ch A
ch B
ch C
ch D
USER MANUAL
VORTEX 3 QUADRO
P.16
USER MANUAL
VORTEX 3 QUADRO
P.17
3.9.4.2 Stereo / Mono-Bridge
If you have a high-impedance load you can set the appropriate amplier to
Bridge-Mono operation.
3.9.5 Two-Channel Operation
With ampliers A/B and C/D set to mono modes you will nearly have a normal
stereo amplier with the exception that you are able to choose either to drive
minimum loads of 2 Ohms or 8 Ohms.
3.9.5.1 Parallel-Mono / Parallel-Mono
To drive two 2 Ohms loads just set the mode selectors to Parallel-Mono
operation.
