OPENING PHASE (deceleration if set up on the control panel):
Release the gearmotor and swing the gate-leaf to the fully open position you desire, then, unscrew the securing screws on the opening stop micro-
switches assembly.
Slide the micro-switch assembly along the micro-switch bar until it is completely passing the contact point on the micro-switch activating sled (as
shown in part B.).
Secure the micro-switch assembly using the respective screws.
OPENING PHASE: (stop)
Release the gearmotor and swing the gate-leaf to the fully open position you desire, then, unscrew the securing screws on the opening
stop micro-switches assembly.
Slide the micro-switch assembly along the micro-switch bar until it is inserted by contact on the micro-switch activating sled
Secure the micro-switch assembly using the respective screws.
CLOSING PHASE (deceleration)
Swing the gate until fully closed.
Unscrew the securing screws on the closing decelaration micro-switch assembly.
Slide the micro-switch assembly along the micro-switch bar until it is completely passing the contact point on the micro-switch activating
sled (as shown in part A.)
Secure the micro-switch assembly using the respective screws.

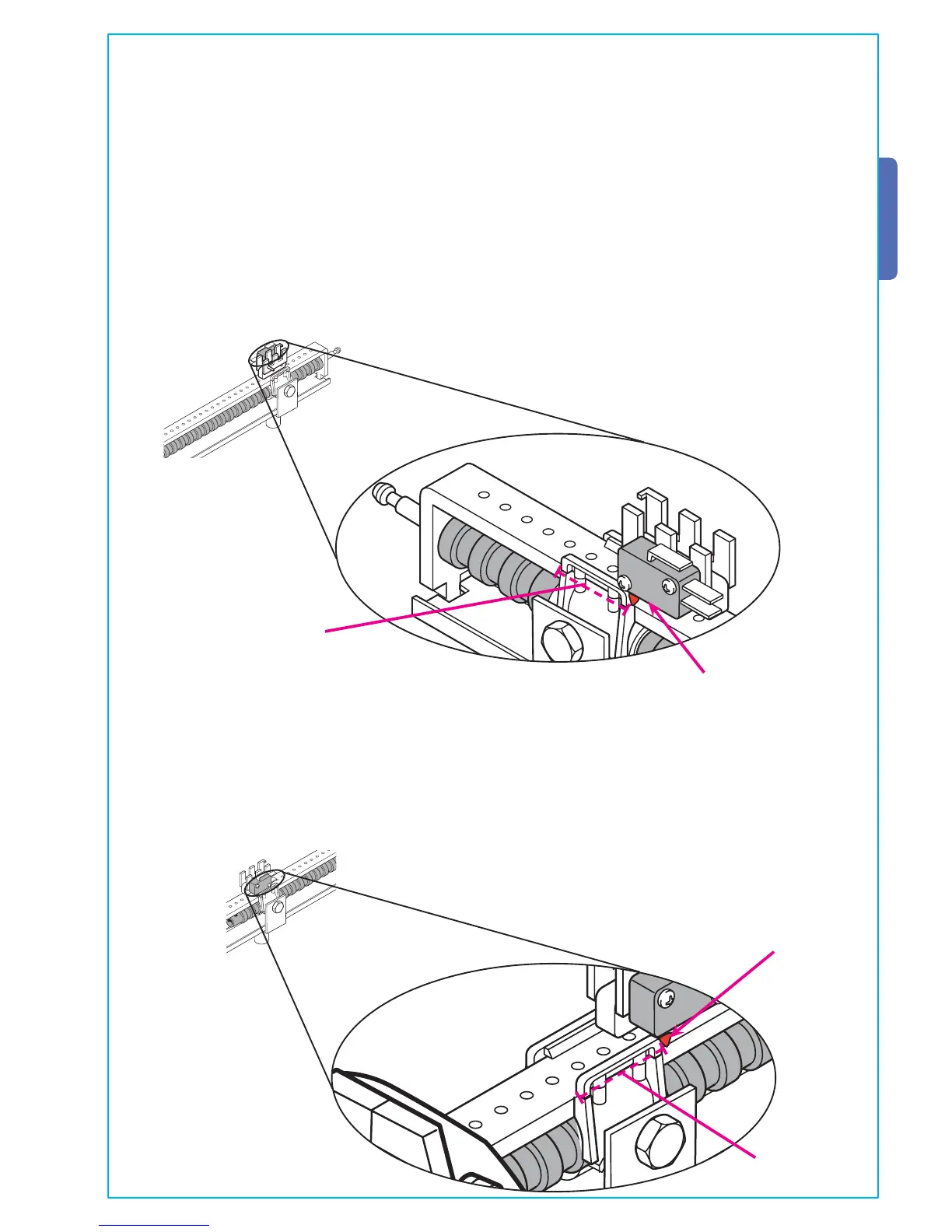

Part. A.
Excluding the micro-switch
contact (fully closed gate-
leaf)
Micro-switch
insertion area
Part. B.
Excluding the micro-switch
contact (fully open gate-leaf)
Deceleration
micro-switch
insertion area
