CAME A3000 User Manual

Page 15 - Manual FA01810-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

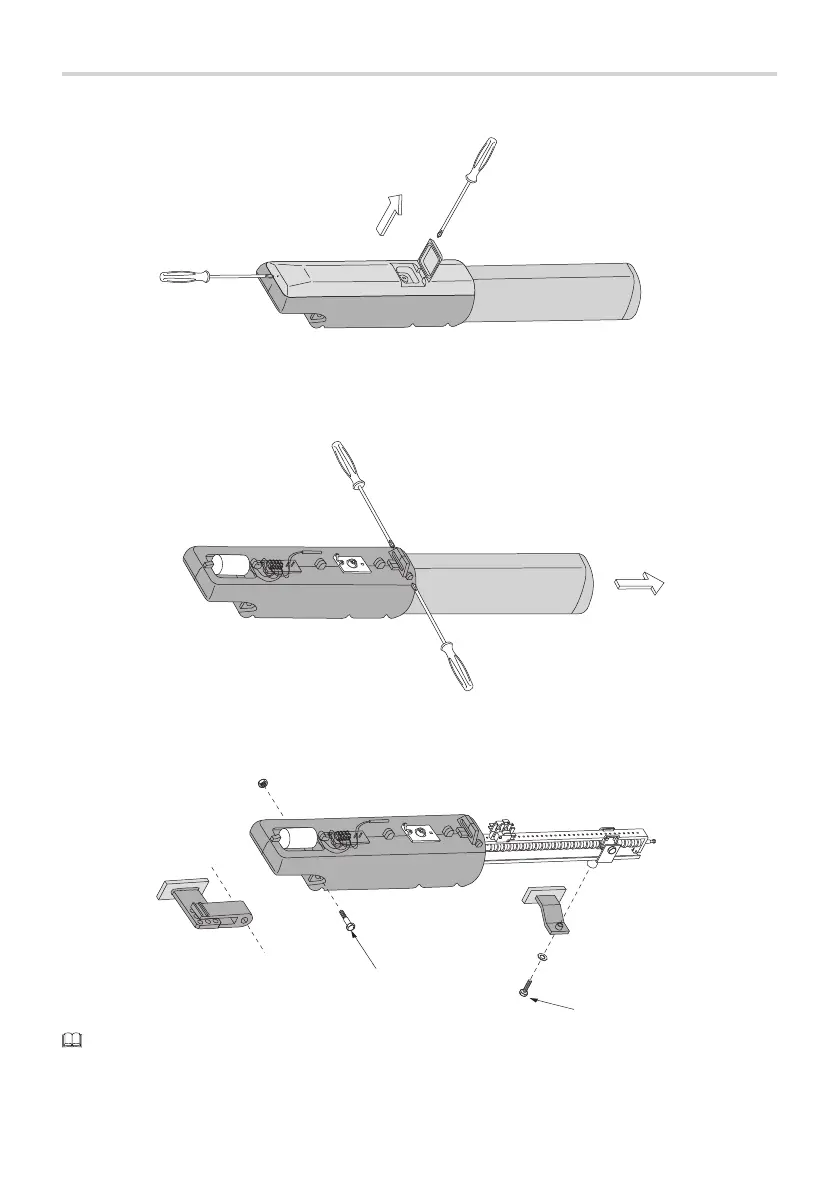

Fastening the gearmotor
Unscrew the two screws and remove the casing.
Unscrew the two screws and remove the shaft.
Fasten the gearmotor to the two brackets.
M8x10
M8x50
Lubricate the endless screw and bushing well using a neutral grease.

CAME A3000 Specifications

General

Max Gate Weight	800 kg
Power Supply	230 V AC
Motor Voltage	230 V AC
Thrust	3000 N
Intermittence Factor	30%
Operating Temperature	-20°C to +55°C
Protection Level	IP54
Voltage	230 V
Safety Features	Obstacle detection
