CAME A3000 User Manual

Page 18 - Manual FA01810-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

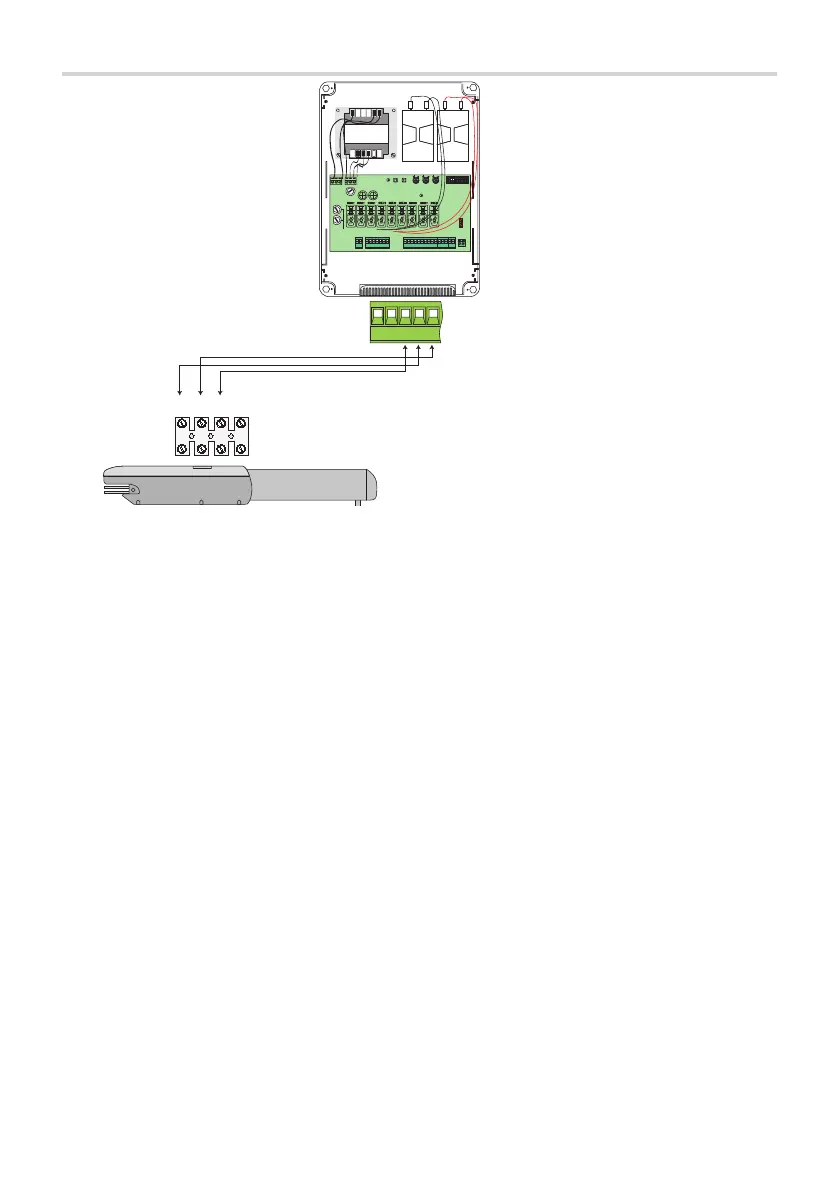

Connecting 1 motor to a ZA3P or ZM3E control panel.
1
234
L2T
L1T
0
24
12
QUADRO COMANDO
FUSIBILI
LINEA 5A
ZA3
CH1
AF
FUSIBILE
CENTRALINA
2A
T.L.
T.C.A.
TR2M.
21345678910O
N
CH2
U V W X Y E E3
10 11 S 1 2 3 3P 4 5 7 2 C1 CX B1 B2
L1 L2
U
V
W
X
Y
U V W
M1

CAME A3000 Specifications

General

Max Gate Weight	800 kg
Power Supply	230 V AC
Motor Voltage	230 V AC
Thrust	3000 N
Intermittence Factor	30%
Operating Temperature	-20°C to +55°C
Protection Level	IP54
Voltage	230 V
Safety Features	Obstacle detection
