Page 19 - Manual FA01810-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

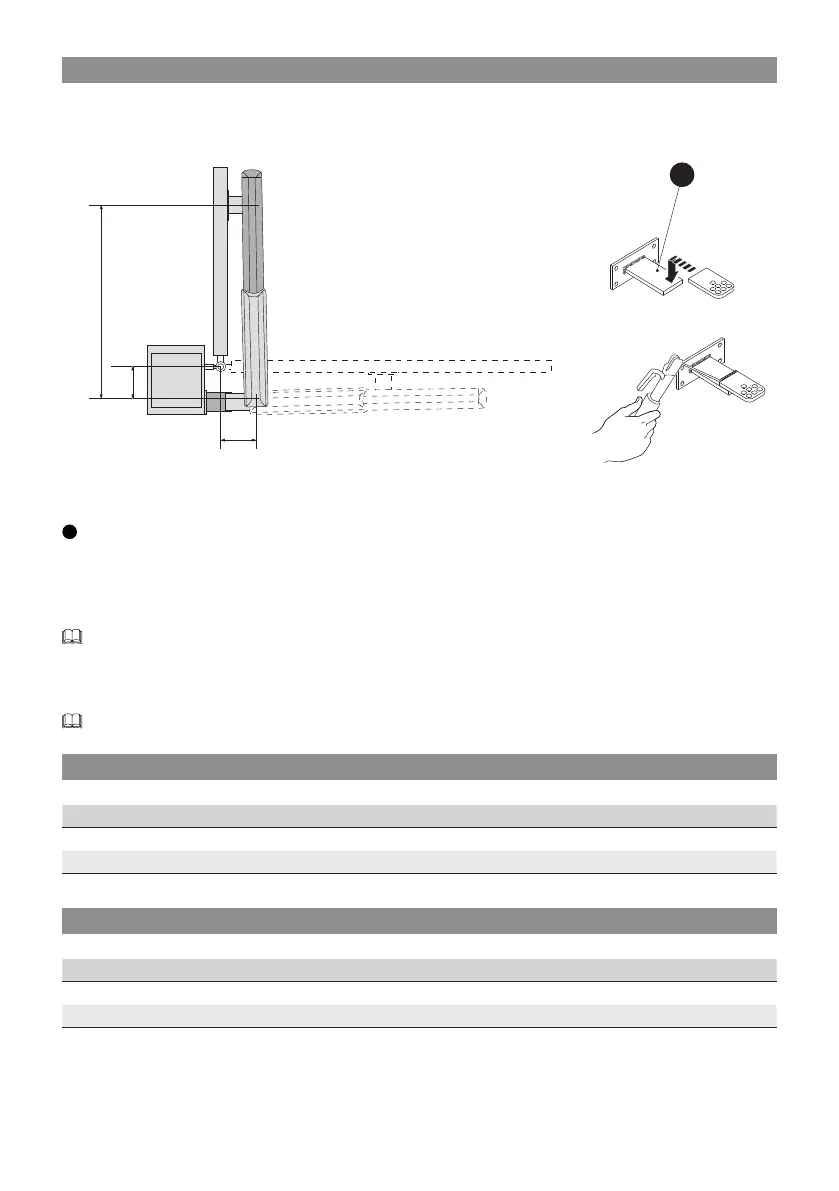

OUTWARDS OPENING
1
2
A
A
B
E
A
Additional bracket (not included)
Measure the lengths labelled A and B.
Fasten the pillar bracket to an additional bracket and apply it to the pillar.
Open the gate and measure length E.
Maximum gate opening: 90°.
Fasten the bracket to the gate.
Make the electrical connections.
Reposition and adjust the opening stop microswitch assembly.
Respect the values indicated in the table.
A3000 A3006 A3010 A3100 A3106
Gate-leaf opening (°) A B E
90 130 130 720
90 130 130 720
A5000 A5006 A5010 A5100 A5106
Gate-leaf opening (°) A B E
90 200 200 920
90 200 200 920

CAME A3000 Specifications

General

Max Gate Weight	800 kg
Power Supply	230 V AC
Motor Voltage	230 V AC
Thrust	3000 N
Intermittence Factor	30%
Operating Temperature	-20°C to +55°C
Protection Level	IP54
Voltage	230 V
Safety Features	Obstacle detection
