ELECTRICAL CONNECTIONS
Before working on the control panel, cut o the mains power supply.
Remove the protective cover to access the terminal block.
For space reasons, capacitors for the 110 V versions should be connected to the control panel.

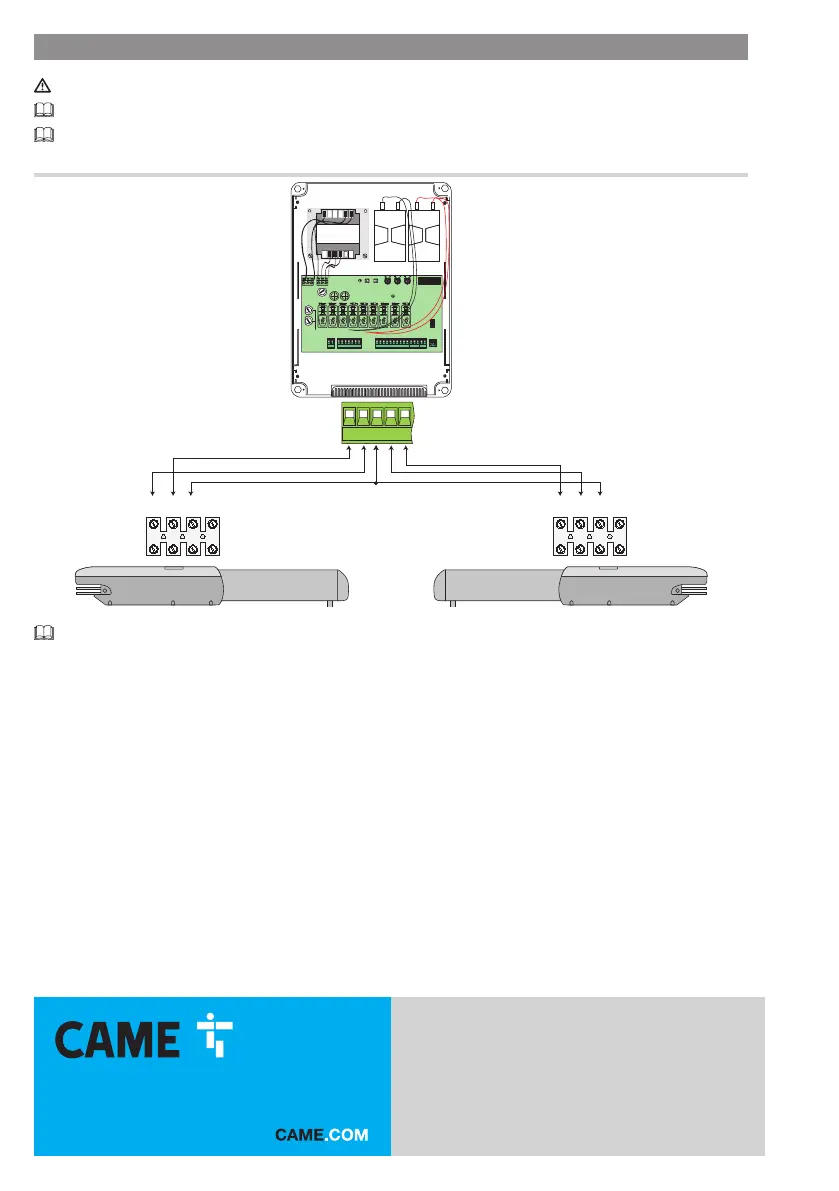

Connecting 2 motors to a ZA3P or ZM3E control panel.
1
234
L2T
L1T
0
24
12
QUADRO COMANDO
FUSIBILI
LINEA 5A
ZA3
CH1
AF
FUSIBILE
CENTRALINA
2A
T.L.
T.C.A.
TR2M.
21 345678910O
N
CH2
U V W X Y E E3
10 11 S 1 2 3 3P 4 5 7 2 C1 CX B1 B2
L1 L2
U
V
W
X
Y
U V W U V W
M1
M2
Reposition the opening stop microswitch assembly because when the gate is open the microswitch assembly is
at the end of the piston and the wire needs to be extended (not supplied).

CAME A3000 Specifications

General

Max Gate Weight	800 kg
Power Supply	230 V AC
Motor Voltage	230 V AC
Thrust	3000 N
Intermittence Factor	30%
Operating Temperature	-20°C to +55°C
Protection Level	IP54
Voltage	230 V
Safety Features	Obstacle detection
