CAME BK Series Manual

- 7 -
COLLEGAMENTI ELETTRICI - ELECTRICAL CONNECTIONS - BRANCHEMENTS ÉLECTRIQUES
ELEKRISCHE ANSCHLÜSSE - CONEXIONES ELÉCTRICAS
N.B.: é consigliabile installare il quadro comando CAME "ZBKS"
Note: we recommend installation of the CAME "ZBKS" control panel
N.B.: il est conseillé d'installer l'armoire de commande CAME "ZBKS"
N.B.: Die installierung der Steuerung CAME "ZBKS" ist empfehlenswert
Nota: es aconsejable instalar el cuadro de mando CAME "ZBKS"

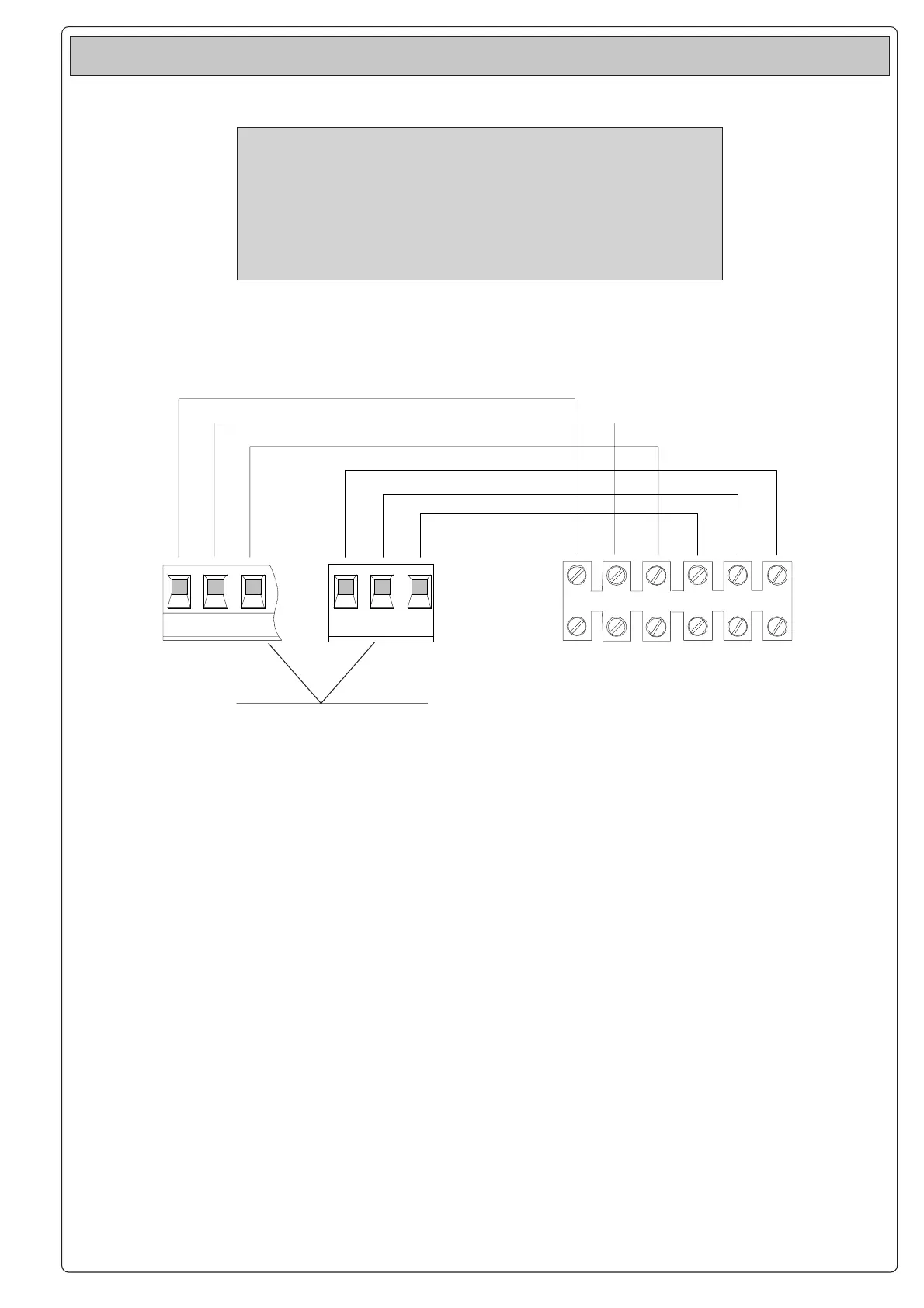

Collegamento motoriduttore e gruppo finecorsa
Gear motor connection and end-stop unit jvor
Branchement motoréducteur et groupe interrupteur de fin de course
Anschluß Getriebemotor und Endanschlagsgruppe.
Conexión motorreductor y grupo fin de carrera
Morsettiera quadro comando ZBKS
Morsettiera quadro comando ZBKS
Morsettiera quadro comando ZBKS
Morsettiera quadro comando ZBKS
Morsettiera quadro comando ZBKS
F
A
F
C
F
V
UW
UVW0F
A
F
C

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
