External entry panel illumination level adjustment. During call button programming the external entry panel illumination level
can be adjusted up or down as previously described.
Reprogramming procedure

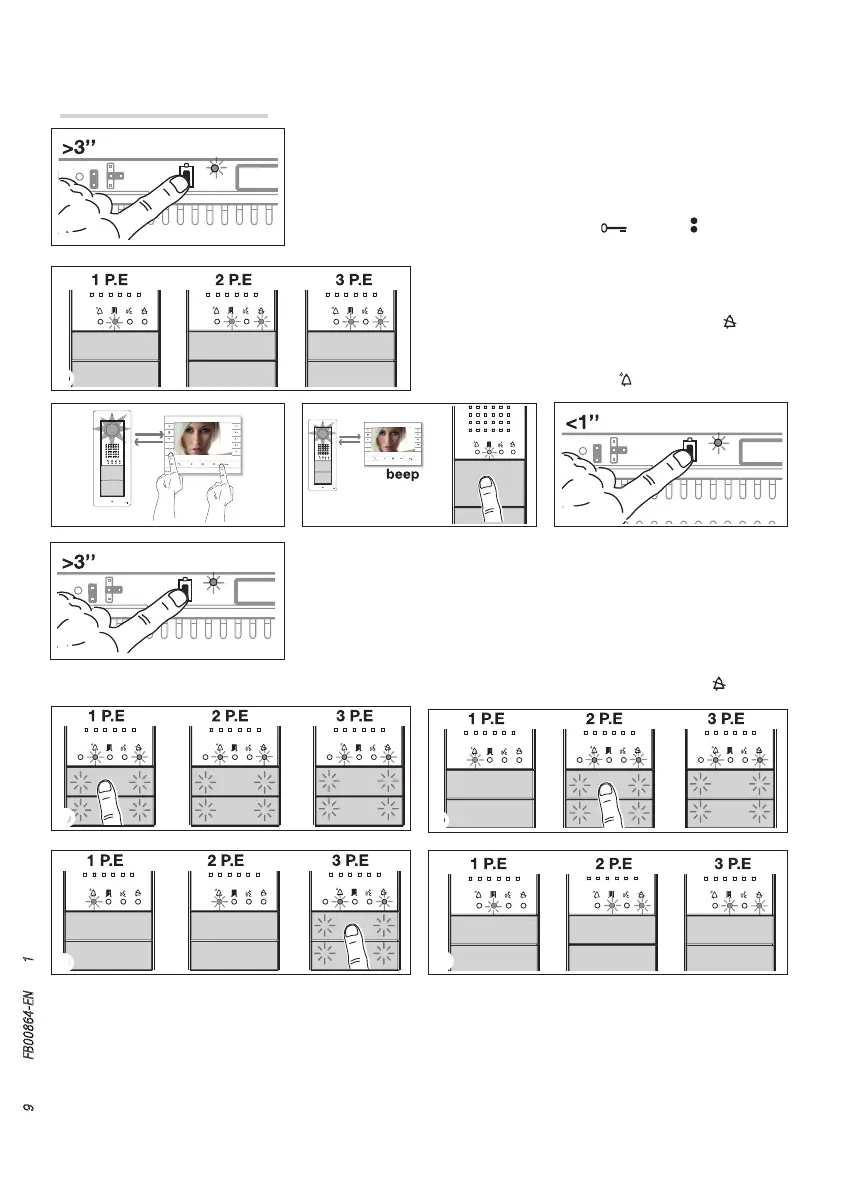

Accessing programming. Press the PROG key on the power supplier 1 until the
PROG LED turns on. The entry panel LEDs turn on as shown in the figure 2. Wait 5
seconds for the self-test to be completed and then continue as described below.
Programming the call keys. Lift the receiver (if present) of the extension that you
want to programme then press the door lock release and AUX2 3 buttons. On
the entry panel, press the call key to be associated with the internal extension 4: an
acoustic signal will confirm that the setting was stored. Hang
up the receiver again, if necessary and continue, repeating the
same operations for the other extensions. The operation may
only be performed from the entry panel with the LED o (PE1
in 2): to change the entry panel from which call programming is
performed, press one of the first 4 call key positions for at least
3s (or press key 1 followed by key for entry. panels with DNA).
Exiting programming. Briefly press the PROG key on the power supplier E: the PROG
LED and entry panel LEDs will turn o. If no action is performed, the procedure will end
automatically after 30 minutes.
Programming key type. During the “Call button programming” phase a press and
hold down on the power supplier PROG key F. The entry panel LEDs turn on as shown
in the figure G.
Press the first key on the entry terminal to be reprogrammed G. The LED will stop to
flash as will the backlighting LEDs of the first 4 call key positions 8. Repeat the operation on all entry panels to be reprogrammed
8 and I. If all entry panels are reprogrammed, the configuration will be as illustrated in figure J.
To exit reprogramming, briefly press the PROG key on the power supplier K: the PROG LEDs and the entry panel LEDs will turn o.
If no action is performed, the procedure will end automatically after 30 minutes.
