8 Safety instructions
This product must only be employed for its originally intended use. Any other use is wrong and potentially dangerous. The manufactu-
rer cannot be held liable for any damages resulting from wrongful, erroneous or negligent uses.

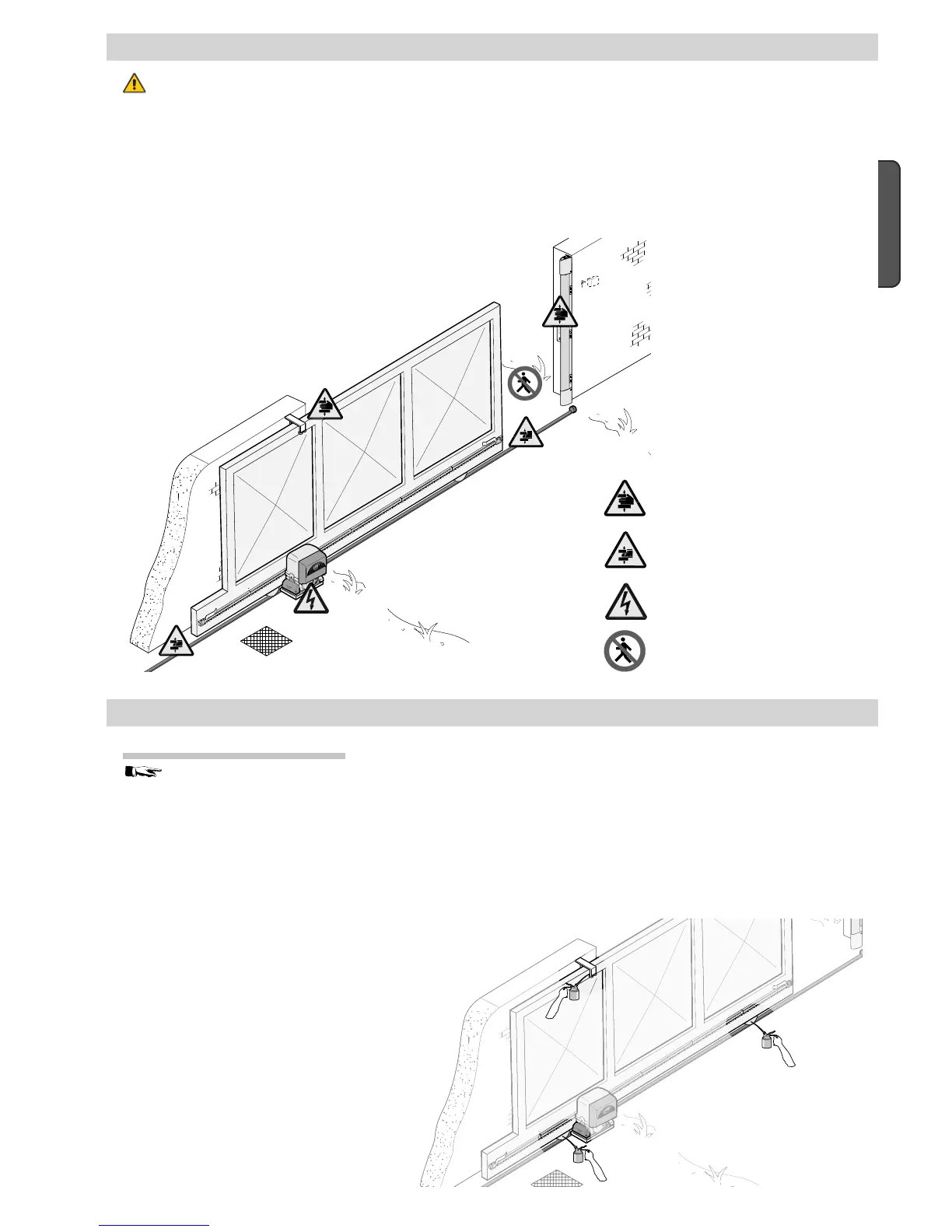

Avoid working close to the hinges or other moving mechanical parts. Stay out of the opening/closing arc when operator is in motion.
Do not exercise force against the motion of the operator as this could result in potentially dangerous situations.Do not allow children
to play or loiter within the opening/closing arc of the operator. Keep remote controls and any other command device out the reach of
children, to prevent operator from being activated by accident.
In the event of anomalous behaviour, stop using the operator immediately.
Danger of crushing hands
Danger of crushing feet
Danger! High voltage
No transit during operation
Important safety instructions
9 Maintenance
9.1 Periodic maintenance
Periodic maintenance to be carried out by the end-user is as follows: wipe clean the glass surface of the photocells; check
that the safety devices work properly; remove any obstructions.
We suggest checking the state of lubrication and tightness of the anchoring screws on the operator.
-To check the efficiency of the safety devices, move an object in front of the photocells when gate is closing. If the operator inverts the
motion or stops, the photocells are working properly.
This is the only maintenance procedure to be carried out with the power source connected.
-Before performing any maintenance procedures, cut off the main power, to prevent possible accidents due to gate movement.
-To clean the photocells use a water dampened cloth. Do not use solvents or other chemical prod-
ucts which may ruin the devices.
-In the event of any strange vibrations or squeaking, lubricate the joints with
grease, as shown in the diagram.
-Make sure there are no plants within the photocell’s beam, and
that the gate motion is free of any obstacles.

CAME BX-68B Specifications

General

Power Supply	230V AC
Motor Power	300 W
Max Gate Weight	800 kg
Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Limit Switch Type	Mechanical
