04/2014 © CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ITALIANITALIANENGLISH

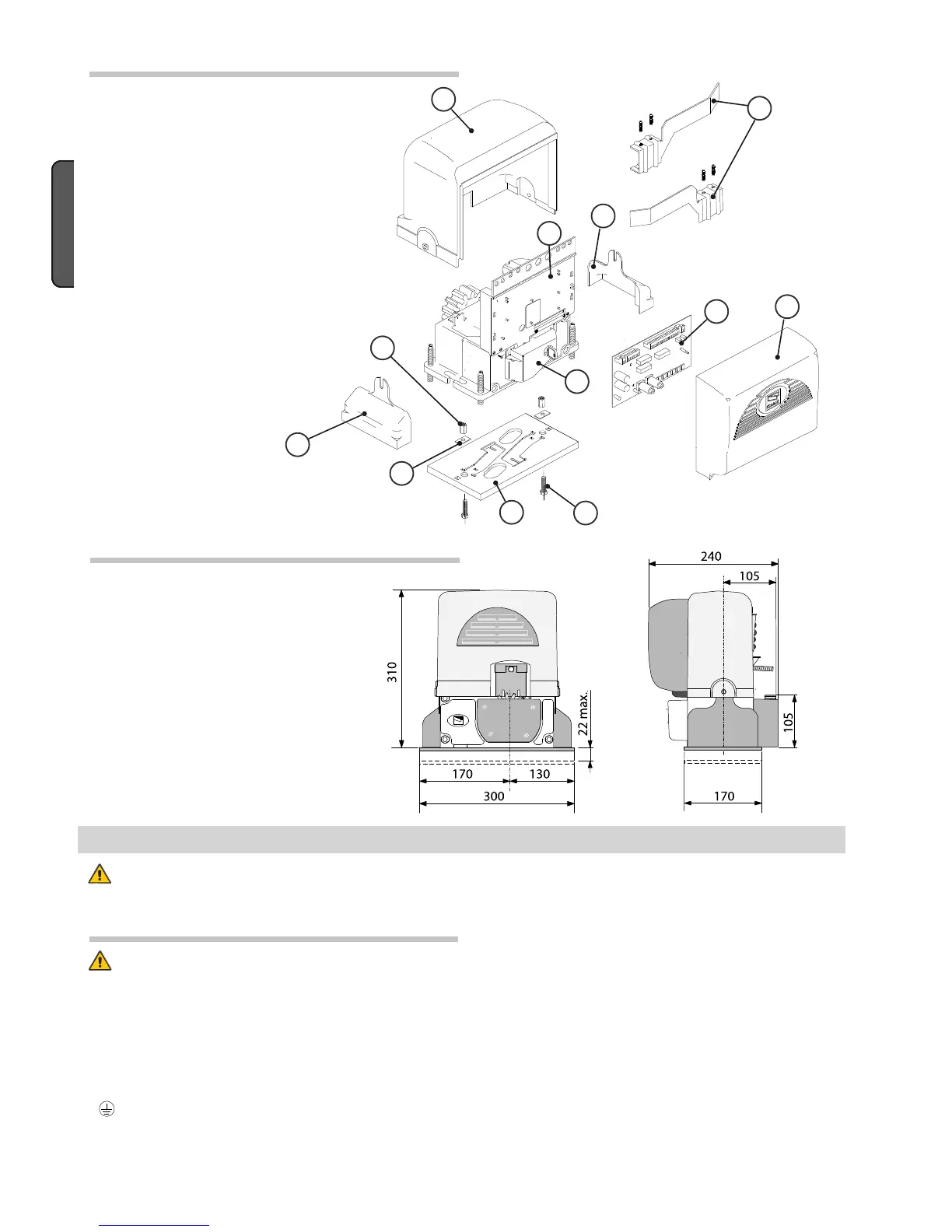

4.4 Dimensions
4.3 Description of parts
5 Installation
Installation must be carried by skilled, qualified technicians in accordance with current regulations.
5. 1 Preliminary checks
Before beginning to install, the following is necessary:
• Make sure the gate is stable, and that the castor-wheels are properly greased and in good working order.
• The floor guide must be well-fastened to the ground, completely on the surface and free of any irregularities that may obstruct the gate
movement.
• The upper guide-sleds must not cause friction.
• Make sure there are opening and closing strike plates.
• Make sure that the point where the gearmotor is fastened is in an impact-free zone, and that the surface is solid;
Set up a suitable omnipolar cut-off device, with distances greater than 3 mm between contacts, wit sectioned power source;
• Check that any connections inside the container (made for continuity purposes of the protective circuit) be fitted with extra insulation
compared to other internal conductive parts;
• Set up proper conduits and electric cable raceways, making sure these are protected from any mechanical damage.
1. Top cover
2. Adjustments cover carter
3. Electronic card support
4. Endstop tabs
5. ZBX6/ZBX6B electronic board
6. Front cover of electrical panel
7. Access door for releasing the gearmotor
8. Anchoring plate
9. Fastening screws
10. Fastening screw plate
11. Nut
