04/2014 © CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ITALIANITALIANENGLISH

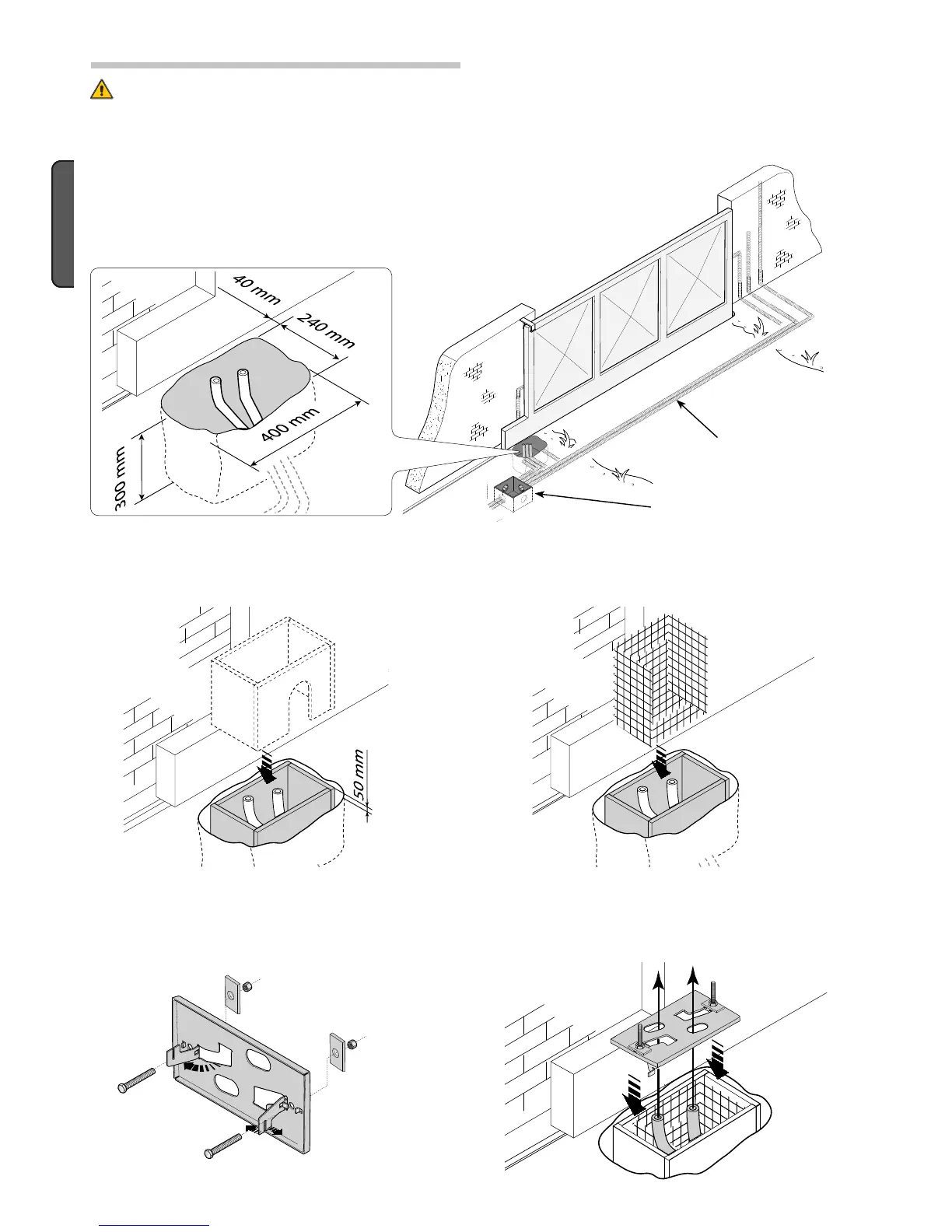

- Dig a pit at the end of the gate (see measurement quotas in drawing).
Set up the necessary corrugated tubing for connections coming from the junction pit.
N.B. the number of tubes depends on the type of installation and accessories used.
The following illustrations are just examples, in that the space for securing the operator and accessories depends on the overall
measurements it varies depending on the overall measurements. It is up to the installer to choose the most suited solution.
Junction pit-box
5.5 Fastening the plate and fitting the motor assembly
Tubes for electrical cables
to pass through
- Set up the anchoring plate, by threading the bolts and tightening them with the supplied nuts and washers. Extract the pre-shaped
brackets, using a screwdriver or pliers.
Position the plate above the grille. Warning! The tubes need to be threaded through the pre-set holes.
- Prepare a foundation box that is larger than the anchoring plate and fi t it into the foundation box. The wooden form must protrude from
the ground by at least 50 cm.
Insert an iron grille into the wooden form to reinforce the concrete.
