CAME BX-74 User Manual











p.
9
- Manual code:
FA00127-EN
FA00127-EN v.
1
- 05/2015 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
Once adjustments are fi nished, secure the assembly using the nuts and washers.
Insert the cover after performing the adjustments and settings on the electronic card.
Levelling feet
Slotted holes
Rack
Pinion
vertical adjusting
horizontal adjusting
Rack
Pinion

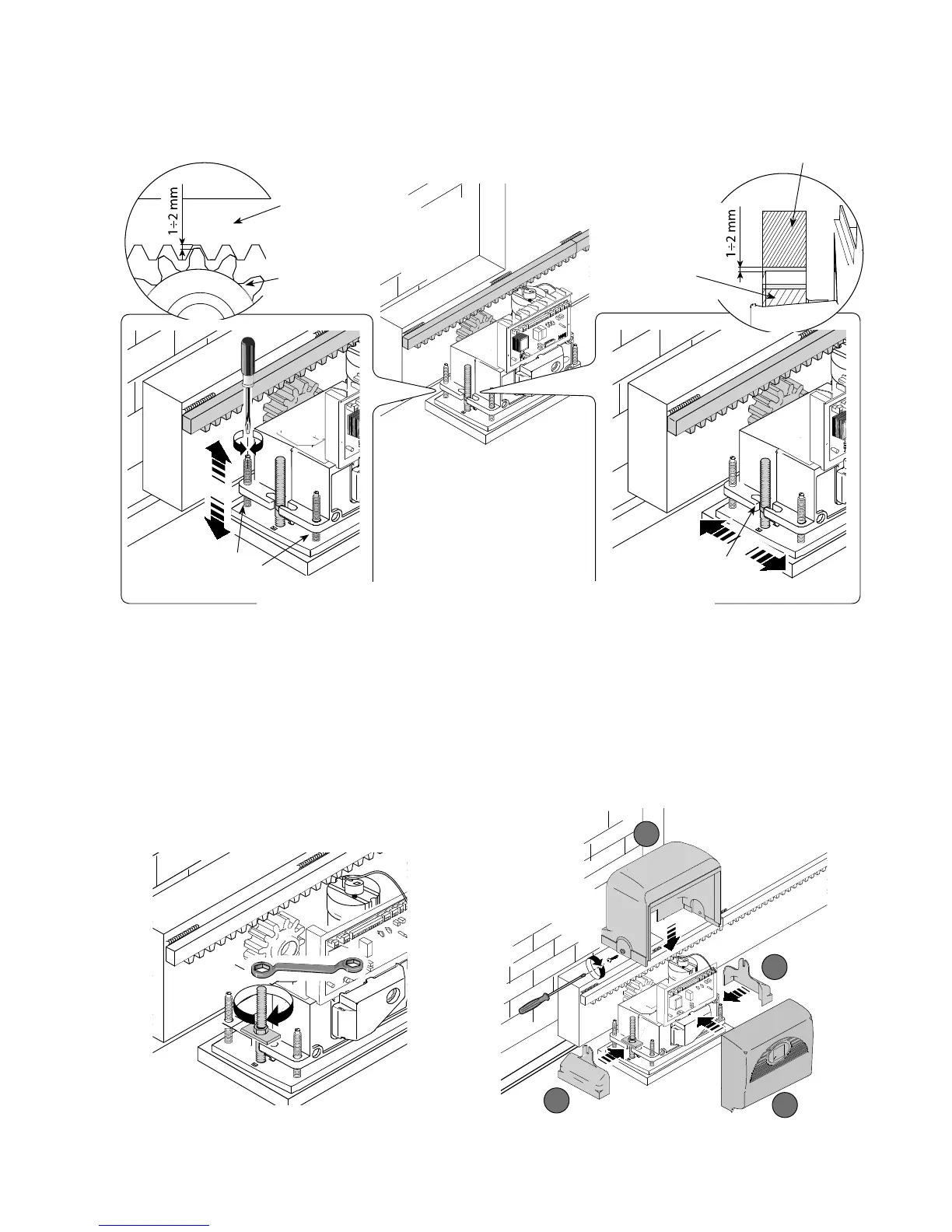

- Open and close the gate manually and register the pinion-to-rack distance using the threaded steel-levelling feet (for vertical
adjusting) and the slotted holes (horizontal adjusting). This prevents the weight of the gate from bearing on the operator.

CAME BX-74 Specifications

General

Operating Temperature	-20°C to +55°C
Motor Voltage	230 V AC
Power Supply	230V AC
Safety Features	Obstacle detection
Remote Control	Yes
Manual Operation	Yes
