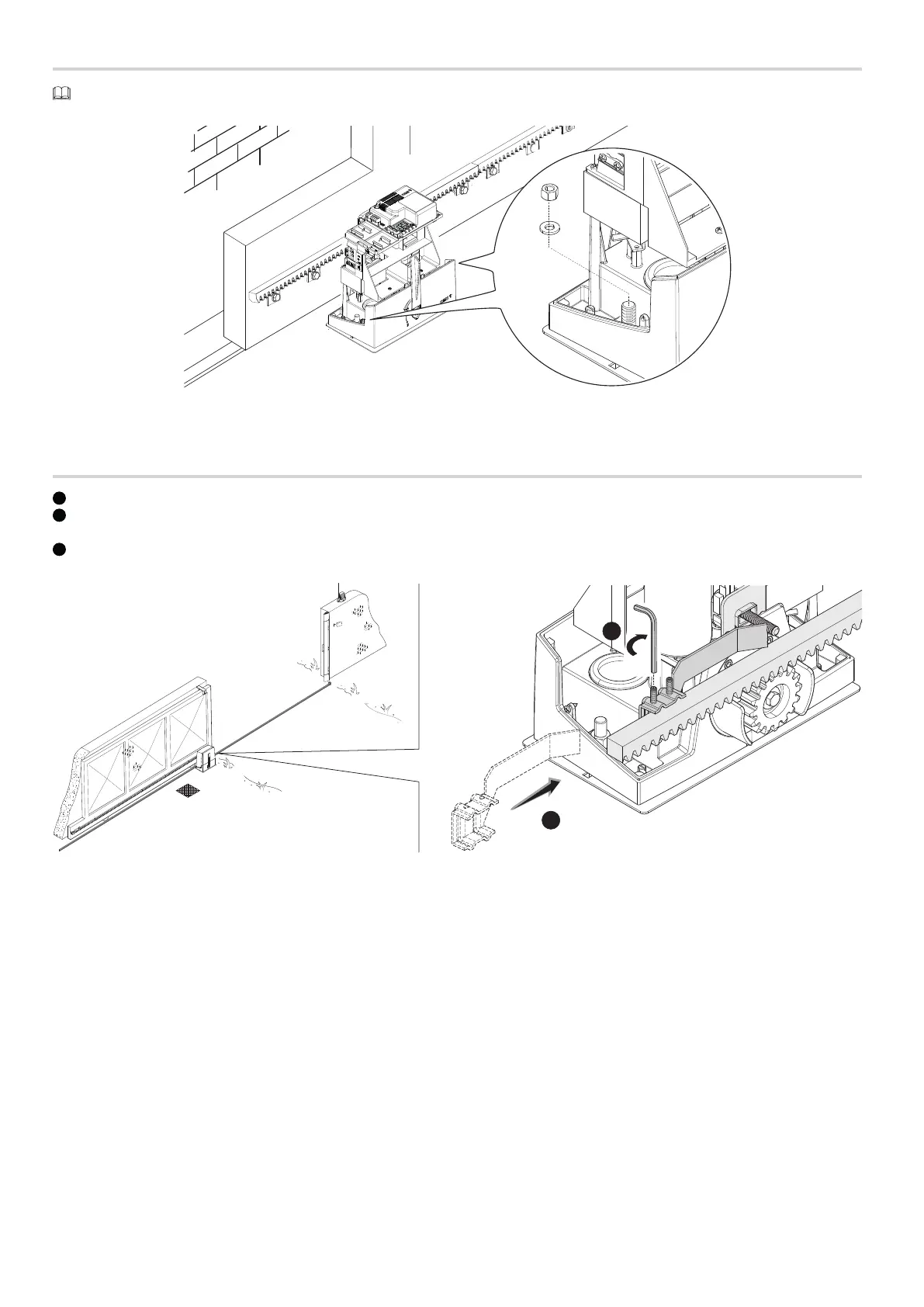

Fastening the operator in place
Only fasten the operator after adjusting the pinion-rack coupling.
Fasten the operator to the anchoring plate using stoppers and nuts.
Determining the travel end points with mechanical limit switches
1
Open the gate.
2
Insert the opening limit-switch tab in the rack.
The spring must trigger the microswitch.
3
Fasten the opening limit-switch tab using the grub screws supplied.
1
2
