CAME BXL04AGS Installation Manual

Page 6 - Manual FA01947-EN - 03/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

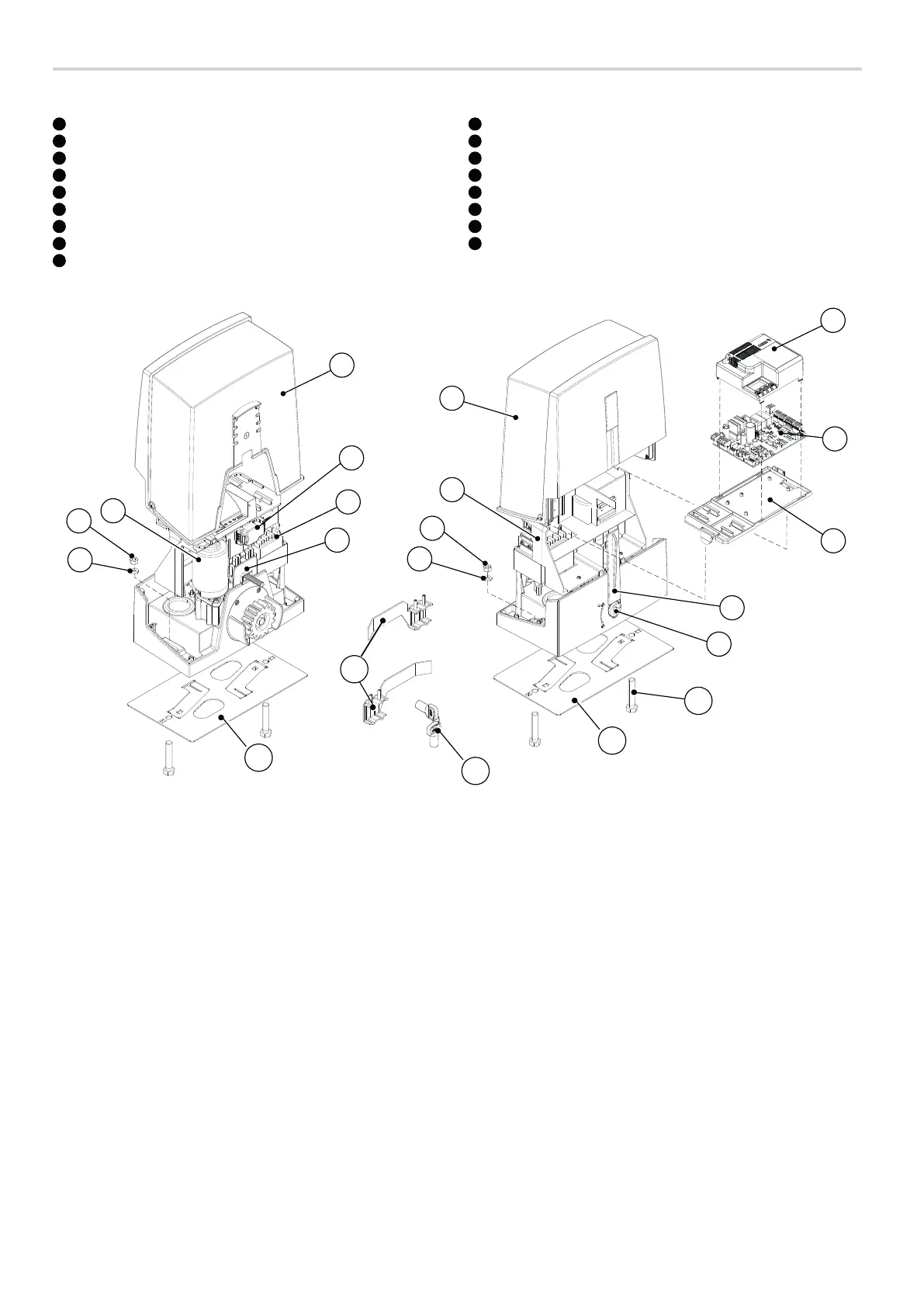

Description of parts
Operator
1
Cover
2
Board-holder support
3
Gearmotor
4
Anchoring plate
5
Screws UNI5739 12X60
6
Washer Ø 12
7
Nut UNI5588 M12
8
Board protection cover
9
Control board
10
Control board holder
11
Release lever
12
Lock
13
Mechanical limit-switch tabs
14
EMC02 control board
15
Transformer
16
Mechanical limit switch
17
Release key
8
10
1
15
16
7
6
1
9
11
12
3
7
6
2
14
4
13
17
4
5
