CAME BXL04AGS

Page 18 - Manual FA01947-EN - 03/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

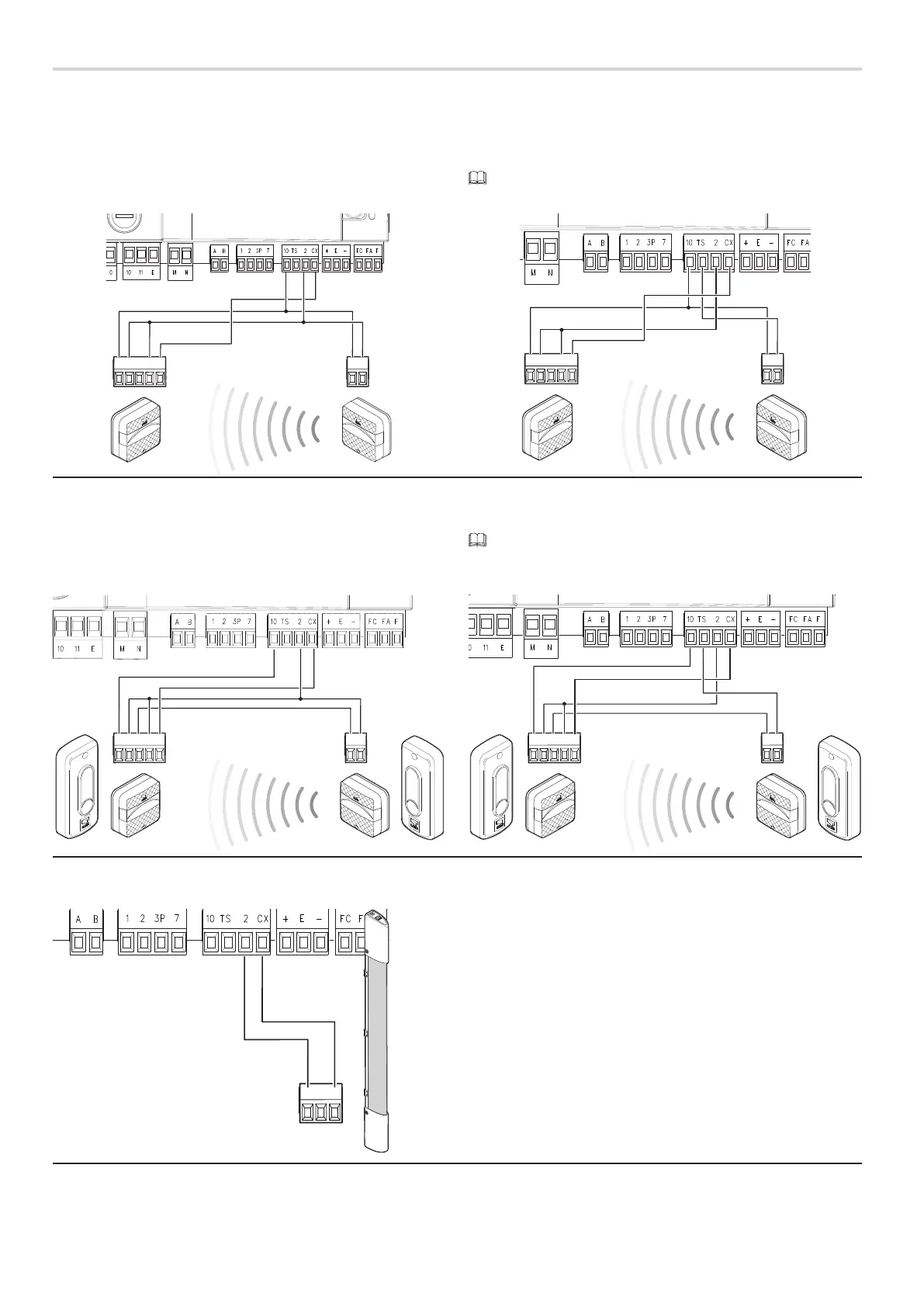

Safety devices
Connect the safety devices to the CX input (NC contact).
During programming, configure the type of action that must be performed by the device connected to the input.
DELTA photocells
Standard connection
DELTA photocells
Connection with safety test
See services test function
+
10
-
11 NO C NC
+
10
-
11
RX TX
+
10
-
11 NO C NC
+
10
-
11
RX TX
DIR / DELTA-S photocells
Standard connection
DIR / DELTA-S photocells
See services test function
Connection with safety test
+
10
-
2TXCNC TX 2
RX TX
+
10
-
2TXCNC TX 2
RX TX
DFWN sensitive edge
CNONC
DFWN
